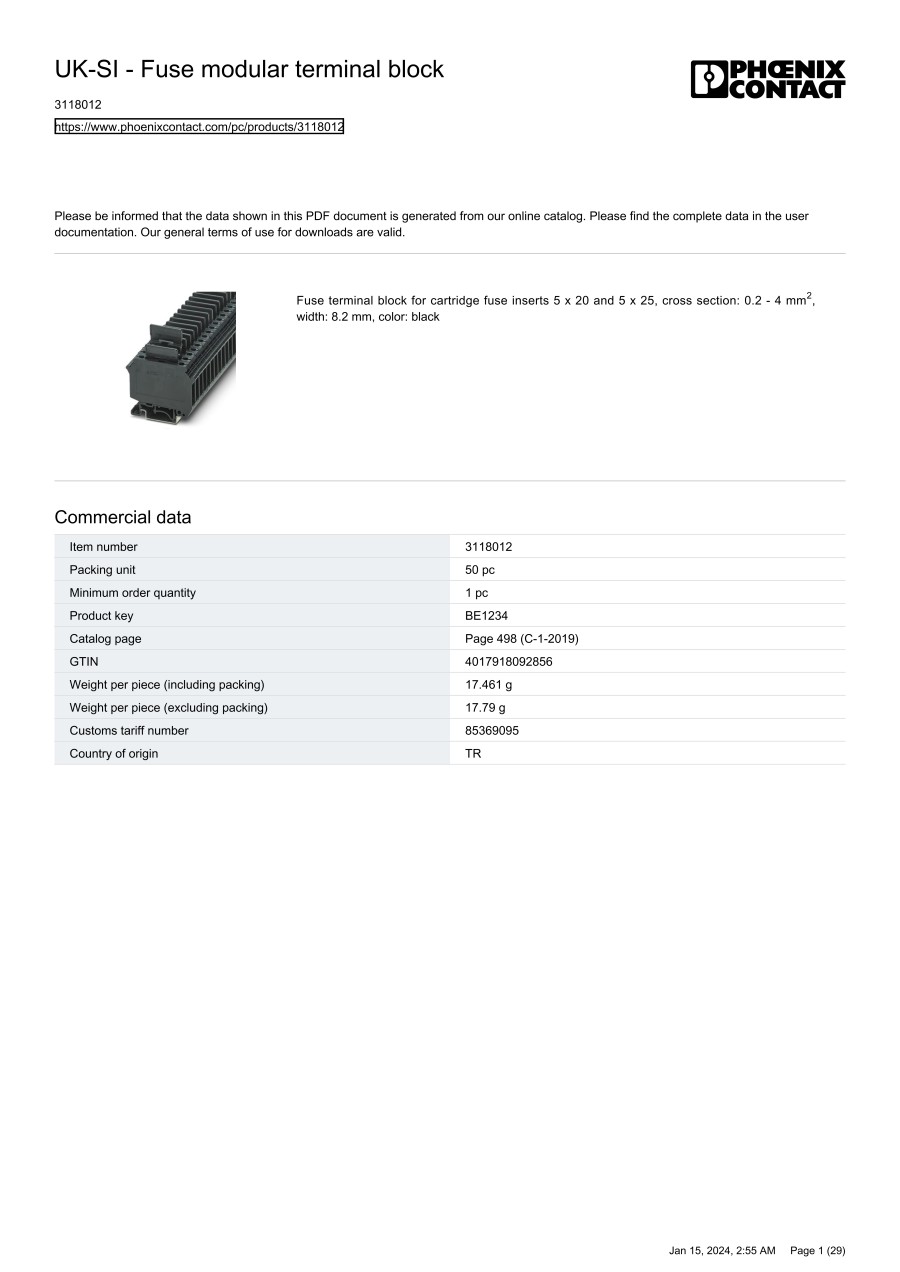

Fuse modular terminal block UK-SI

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Part Number
3118012
3118096
Part NumberRelated toStandard Unit PriceVolume DiscountShipping Days?Color

377.91 €

Available 3 Days Black

354.44 €

Available 3 Days Blue

Loading...

  1. 1

Basic information

Total number of pins(Pole) 2 AWG 24 - 12 Clamp width(mm) 8.2
Connector cross section (fixed)(mm²) 0.2 - 4 Connector cross-section (flexible)(mm²) 0.2 - 4 Content(pc(s)) 50
Nominal voltage(V) 400 Nominal current(A) 6.3 No. of rows 1
Product size (height)(mm) 58 Product size (length)(mm) 59.5 Product size (width)(mm) 8.2
Stripping length(mm) 9(max.) Flammability rating V0 Connection (components) Screws
Connector type (category) Fuse serial terminal Insulation material PA Industrial goods Yes
