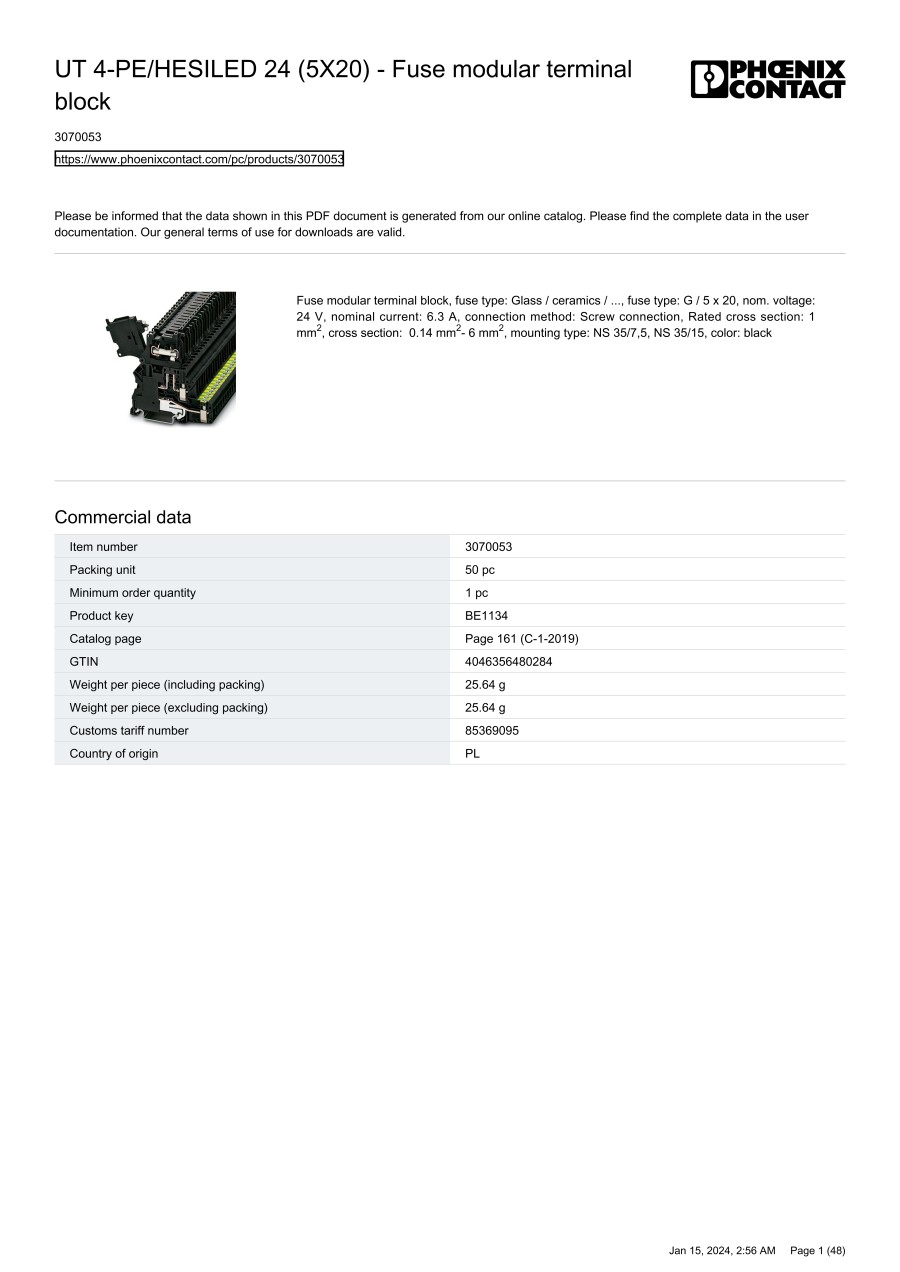

Fuse modular terminal block UT 4-PE/HESI

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Part Number
3070053
3070066
3070079
3073995
Part NumberRelated toStandard Unit PriceVolume DiscountShipping Days?Connector cross-section (flexible)
(mm²)
Nominal voltage
(V)

662.48 €

Available 17 Days 0.5 - 624

662.48 €

Available 17 Days 0.5 - 660

676.36 €

Available 17 Days 0.5 - 6250

426.59 €

Available 3 Days 0.14 - 6500

Loading...

  1. 1

Basic information

Total number of pins(Pole) 2 Color Black AWG 26 - 10
Clamp width(mm) 6.2 Connector cross section (fixed)(mm²) 0.14 - 6 Contamination level 3
Content(pc(s)) 50 Nominal current(A) 6.3 No. of rows 1
Product size (height)(mm) 73 Product size (length)(mm) 70.8 Product size (width)(mm) 6.2
Stripping length(mm) 9(max.) Flammability rating V0 Connection (components) Screws
Connector type (category) Fuse serial terminal Insulation material PA Industrial goods Yes
