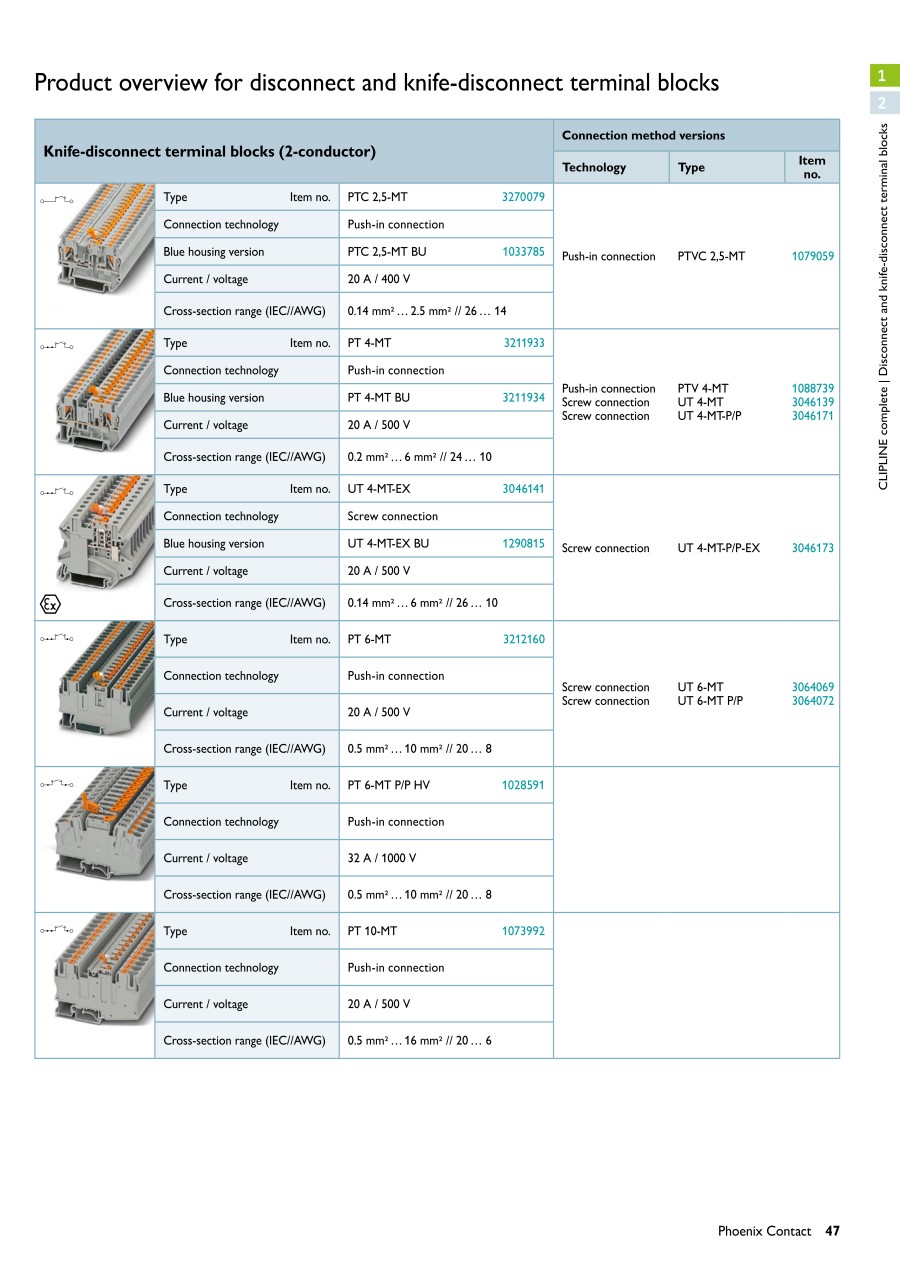

Gauge-separator terminal PT 6-MT

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

3212160

Part Number
3212160
Part NumberStandard Unit PriceVolume DiscountShipping Days?

125.05 €

Available 3 Days

Loading...

  1. 1

Basic information

Total number of pins(Pole) 2 Color Grey Clamp width(mm) 8.2
Connector cross section (fixed)(mm²) 0.50 - 10 Connector cross-section (flexible)(mm²) 0.50 - 6 Content(pc(s)) 50
Nominal voltage(V) 500 Nominal current(A) 20 No. of rows 1
Product size (height)(mm) 43.7 Flammability rating V0 Connection (components) Push-in connector
Connector type (category) Disconnect terminal Industrial goods Yes

This page is Gauge-separator terminal PT 6-MT, part number 3212160.
You can find the detail information about specifications and dimensions on part number 3212160.
