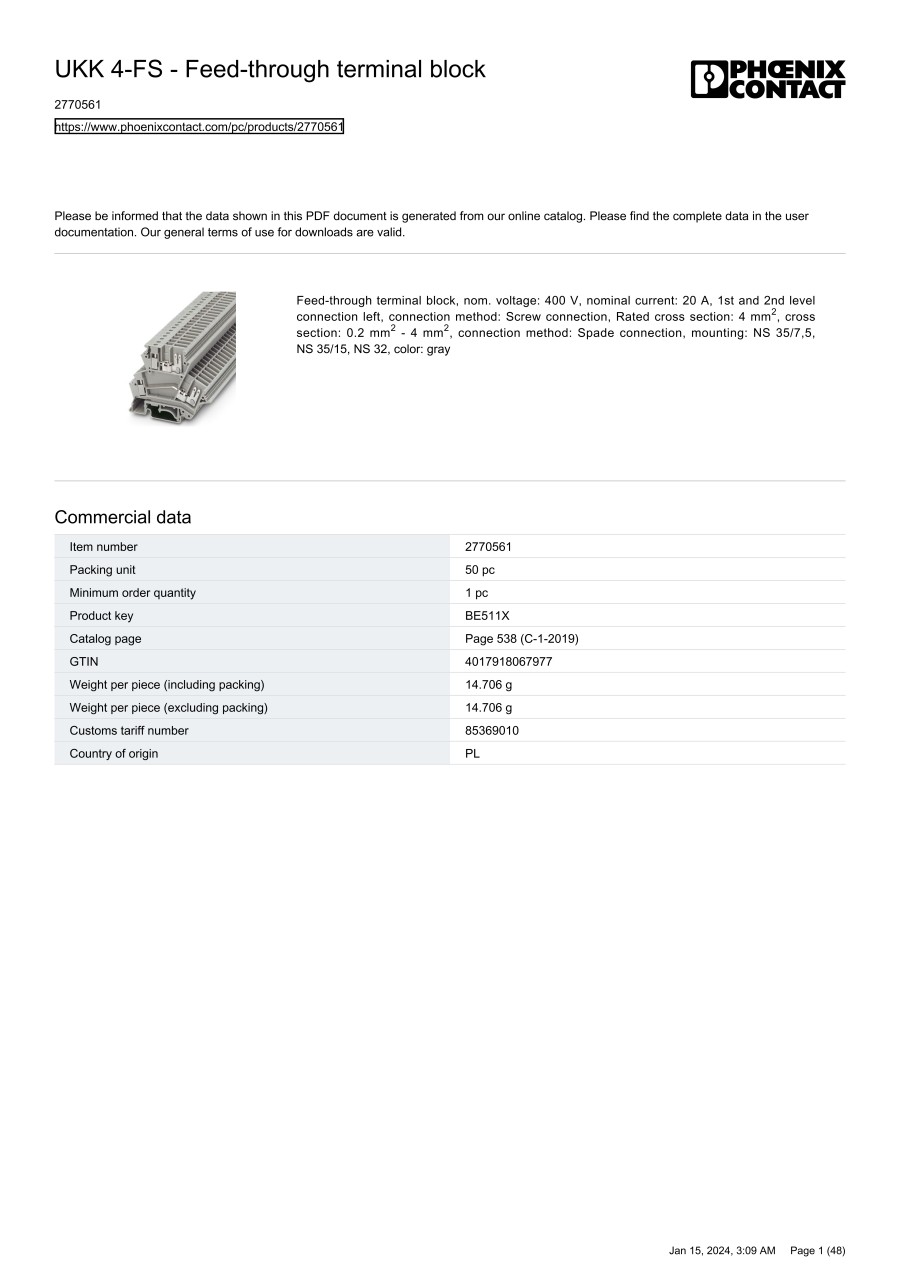

Feed-through terminal block UKK 4-FS
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
2770561
Basic information
| Total number of pins(Pole) | 6 | Color | Grey | AWG | 24 - 12 |
|---|---|---|---|---|---|
| Clamp width(mm) | 6.2 | Connector cross section (fixed)(mm²) | 0.2 - 4 | Connector cross-section (flexible)(mm²) | 0.2 - 4 |
| Nominal voltage(V) | 400 | Nominal current(A) | 20 | No. of rows | 2 |
| Product size (height)(mm) | 59 | Product size (length)(mm) | 72 | Product size (width)(mm) | 6.2 |
| Stripping length(mm) | 8(max.) | Flammability rating | V2 | Connection (components) | Screws |
| Connector type (category) | Continuity | Insulation material | PA | Industrial goods | Yes |
This page is Feed-through terminal block UKK 4-FS, part number 2770561.
You can find the detail information about specifications and dimensions on part number 2770561.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
