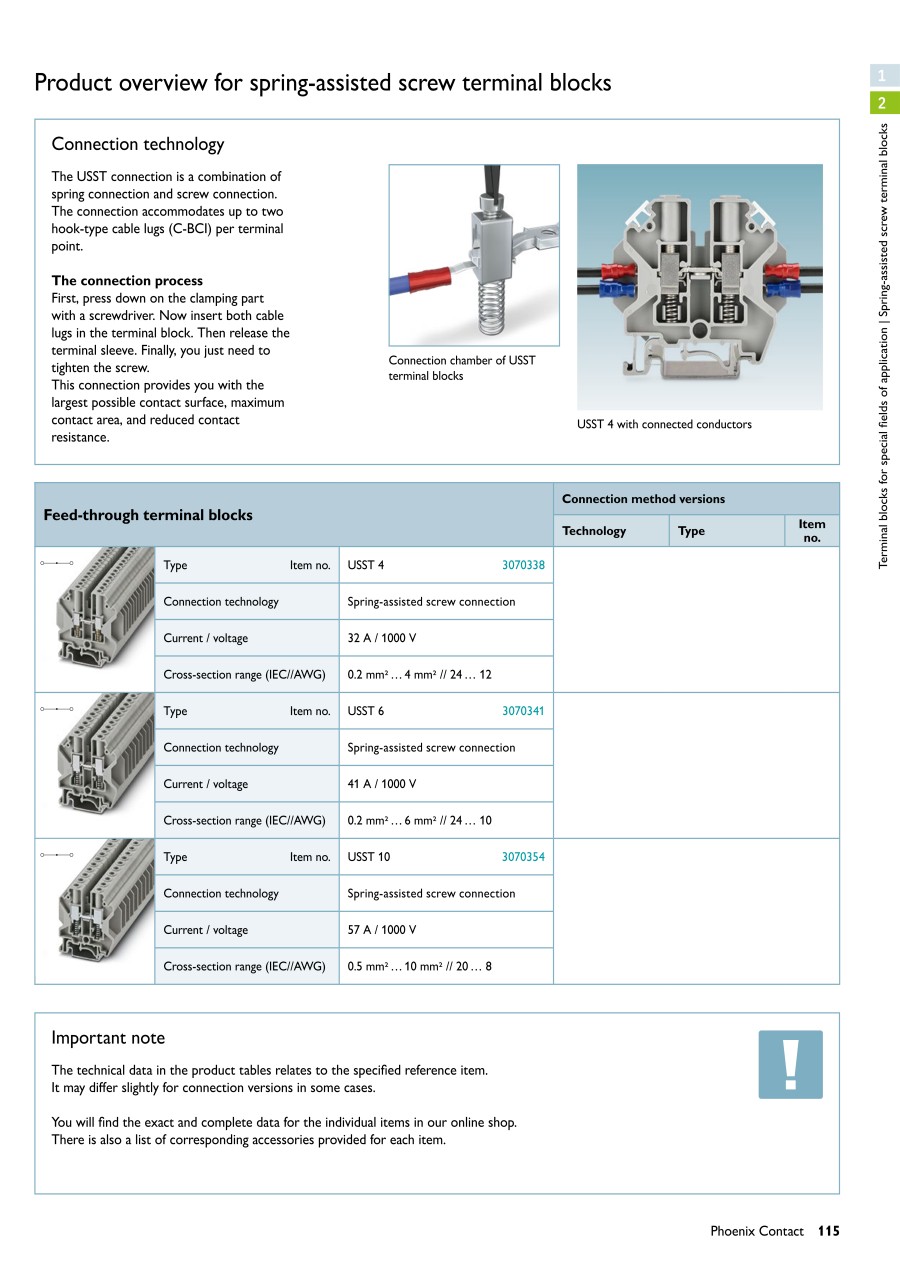

Feed-through terminal block USST
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| 3070338 |
| 3070341 |
| 3070354 |
| Part Number | Related to |
Standard Unit Price
| Minimum order quantity | Volume Discount | AWG | Clamp width (mm) | Connector cross section (fixed) (mm²) | Connector cross-section (flexible) (mm²) | Nominal current (A) | Product size (width) (mm) | Stripping length (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
3.89 € | 50 | 7 Days | 24 - 12 | 6.2 | 0.2 - 6 | 0.2 - 4 | 32 | 6.2 | 10(max.) | |||
4.95 € | 50 | 7 Days | 24 - 10 | 8.2 | 0.2 - 10 | 0.2 - 6 | 41 | 8.2 | 12(max.) | |||
5.43 € | 50 | 7 Days | 20 - 8 | 10.2 | 0.5 - 16 | 0.5 - 10 | 57 | 10.2 | 12(max.) |
Loading...
Basic information
| Total number of pins(Pole) | 2 | Color | Grey | Nominal voltage(V) | 500 |
|---|---|---|---|---|---|
| No. of rows | 1 | Product size (height)(mm) | 57.3 | Product size (length)(mm) | 52 |
| Flammability rating | V0 | Connection (components) | Screws | Connector type (category) | Continuity |
| Industrial goods | Yes |
Configure
Basic Attributes
-
AWG
-
Clamp width(mm)
-
Connector cross section (fixed)(mm²)
-
Connector cross-section (flexible)(mm²)
-
Nominal current(A)
-
Product size (width)(mm)
-
Stripping length(mm)
Filter by standard shipping days
-
- All
- 7 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
