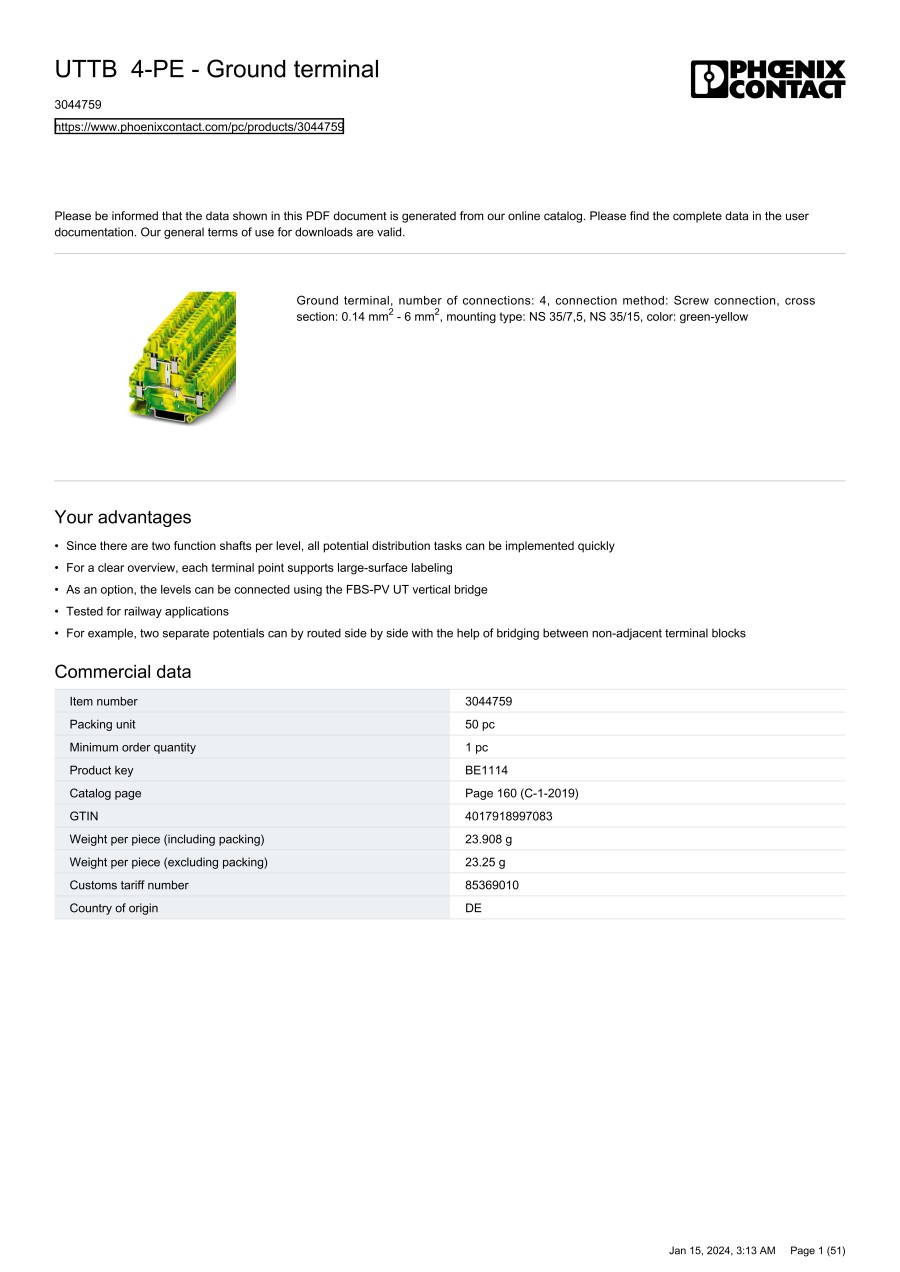

Feed-through terminal block UTTB 4-PE
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Basic information
| Total number of pins(Pole) | 4 | AWG | 26 - 10 | Clamp width(mm) | 6.2 |
|---|---|---|---|---|---|
| Connector cross section (fixed)(mm²) | 0.14 - 6 | Connector cross-section (flexible)(mm²) | 0.14 - 6 | No. of rows | 2 |
| Product size (height)(mm) | 65 | Product size (length)(mm) | 69.9 | Product size (width)(mm) | 6.2 |
| Stripping length(mm) | 9(max.) | Flammability rating | V0 | Connection (components) | Screws |
| Connector type (category) | Continuity | Insulation material | PA | Industrial goods | Yes |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
