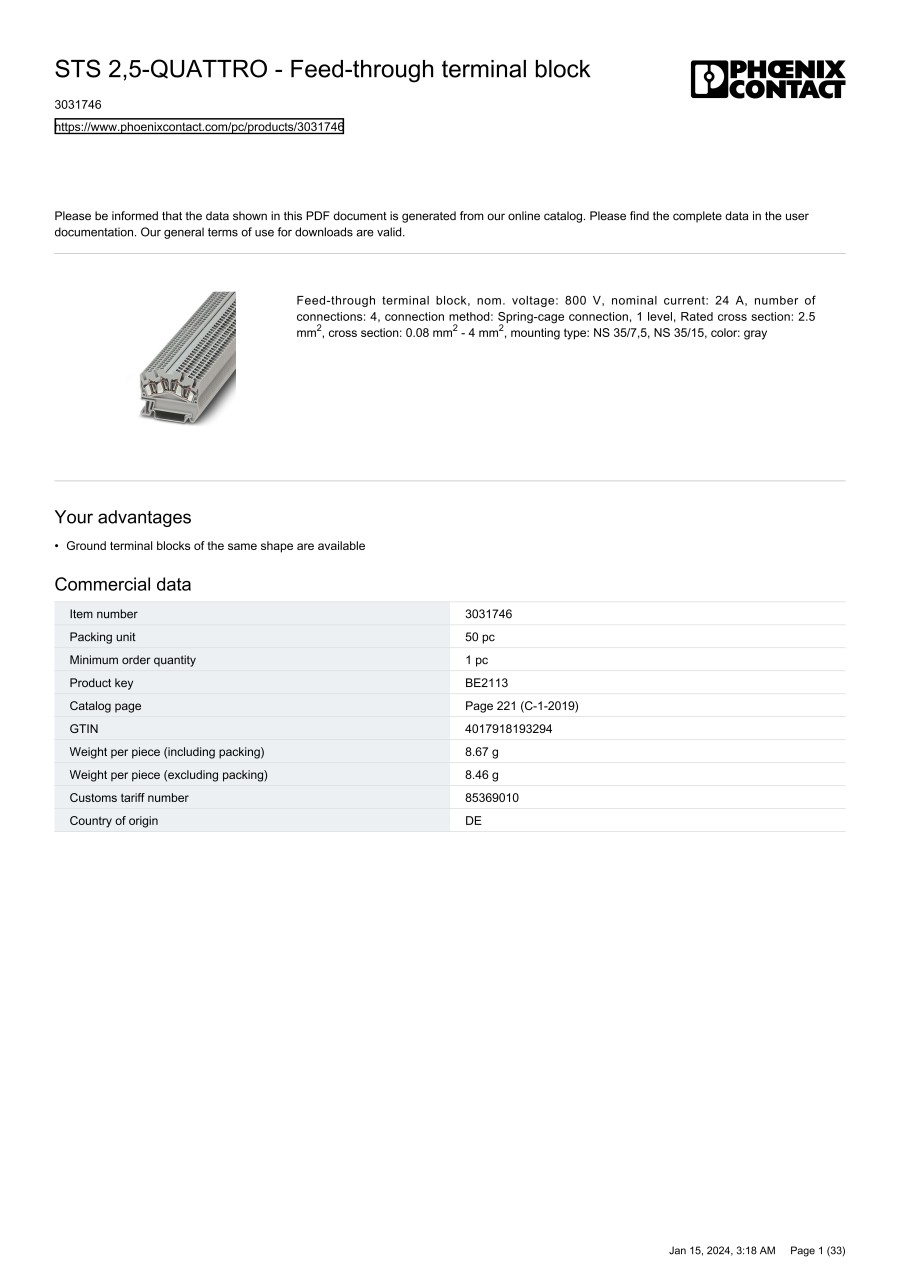

Feed-through terminal block STS 2,5-QUATTRO
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Basic information
| Total number of pins(Pole) | 4 | AWG | 28 - 14 | Clamp width(mm) | 5.2 |
|---|---|---|---|---|---|
| Connector cross section (fixed)(mm²) | 0.08 - 4 | Connector cross-section (flexible)(mm²) | 0.08 - 2.5 | Nominal voltage(V) | 800 |
| Nominal current(A) | 24 | No. of rows | 1 | Product size (height)(mm) | 43 |
| Product size (length)(mm) | 50.8 | Product size (width)(mm) | 5.2 | Stripping length(mm) | 8-10 |
| Flammability rating | V0 | Connection (components) | Pull spring | Connector type (category) | Continuity |
| Industrial goods | Yes |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
