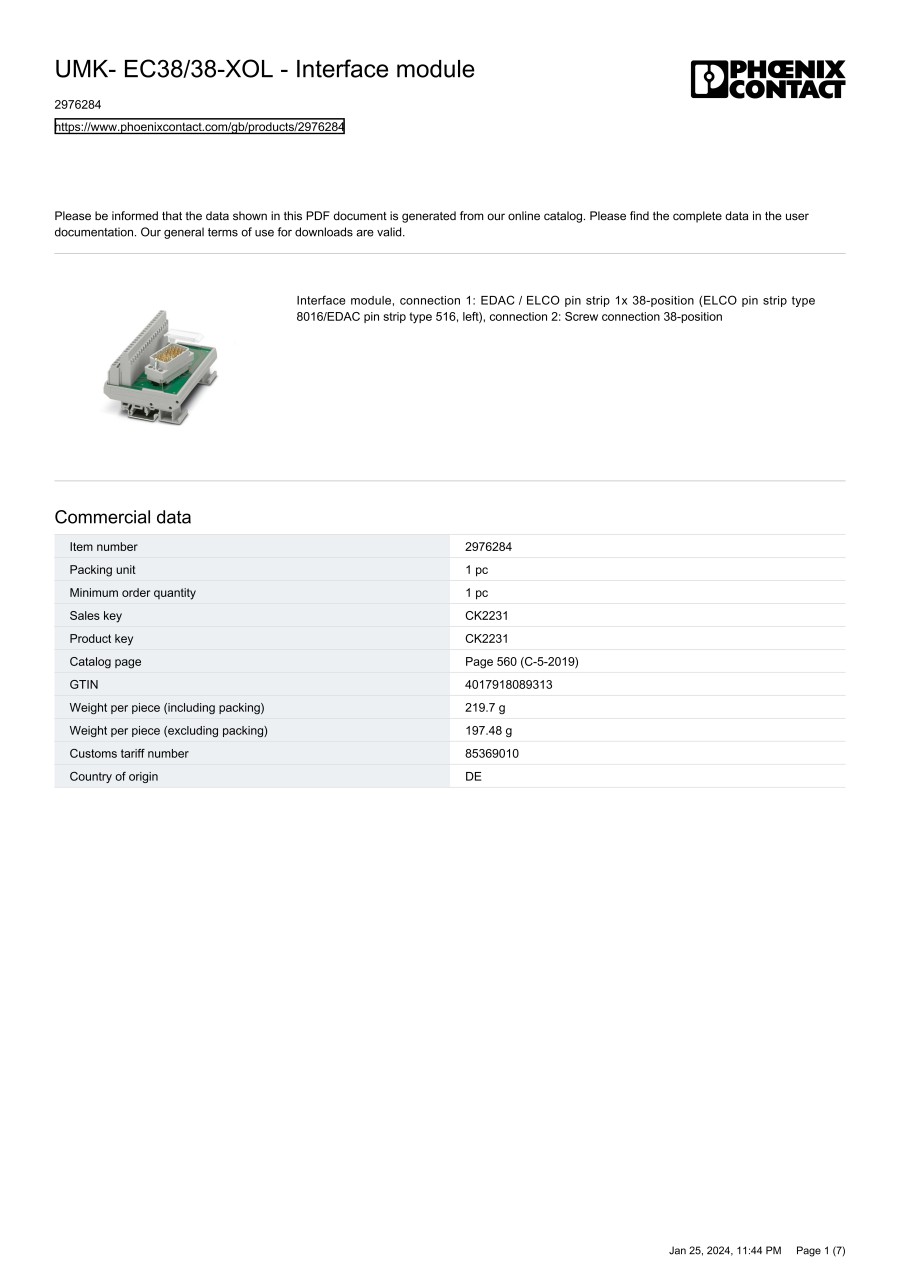

Interface module UMK- EC38 / 38
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Basic information
| Connection (components) | Screws | Total number of pins(Pole) | 38 | Max. cross section (flexible)(mm²) | 2.5 |
|---|---|---|---|---|---|
| Min. cross section (flexible)(mm²) | 0.2 | Max. cross section (inflexible)(mm²) | 4 | Min. cross section (inflexible)(mm²) | 0.2 |
| Min. temperature(°C) | -20 | Stripping length (max.)(mm) | 8 | Connector (control) | ELCO connector |
| Suitable for | ELCO connector | Series (Phoenix transfer modules) | Varioface-UMK-EC | Transfer module type (category) | Transfer module |
| Transfer module features | Any orientation |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
