Voltage transformer Circuit breaker
[Specifications]
・No. of pins: 3
・Product size(depth x width x height) : 75 x 45 x 90mm
・Switching voltage (max.): 400V AC
・Adjustment range (amperage): 1.4 A (max)
・IP rating: IP20
[Features]
・Voltage transformer Circuit breaker, Size S00 1.4 A, N-release 6 A, 1 CO with transverse auxiliary switch
・No. of pins: 3
・Product size(depth x width x height) : 75 x 45 x 90mm
・Switching voltage (max.): 400V AC
・Adjustment range (amperage): 1.4 A (max)
・IP rating: IP20
[Features]
・Voltage transformer Circuit breaker, Size S00 1.4 A, N-release 6 A, 1 CO with transverse auxiliary switch
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
3RV16111AG14
Basic information
| No. of pins | 3 | Product size (height)(mm) | 90 | Product size (width)(mm) | 45 |
|---|---|---|---|---|---|
| Product size (depth)(mm) | 75 | Adjustment range (amperage) | 1.4 A (max) | Current load(A) | 1.4 |
| Min. temperature(°C) | -20 | Max. temperature(°C) | +60 | Switching voltage (max.)(V AC) | 400 |
| Frame size | S00 | IP rating | IP20 | Connection (components) | Screws |
| Contact type | 1 change-over | Mounting type (relays) | DIN rail |

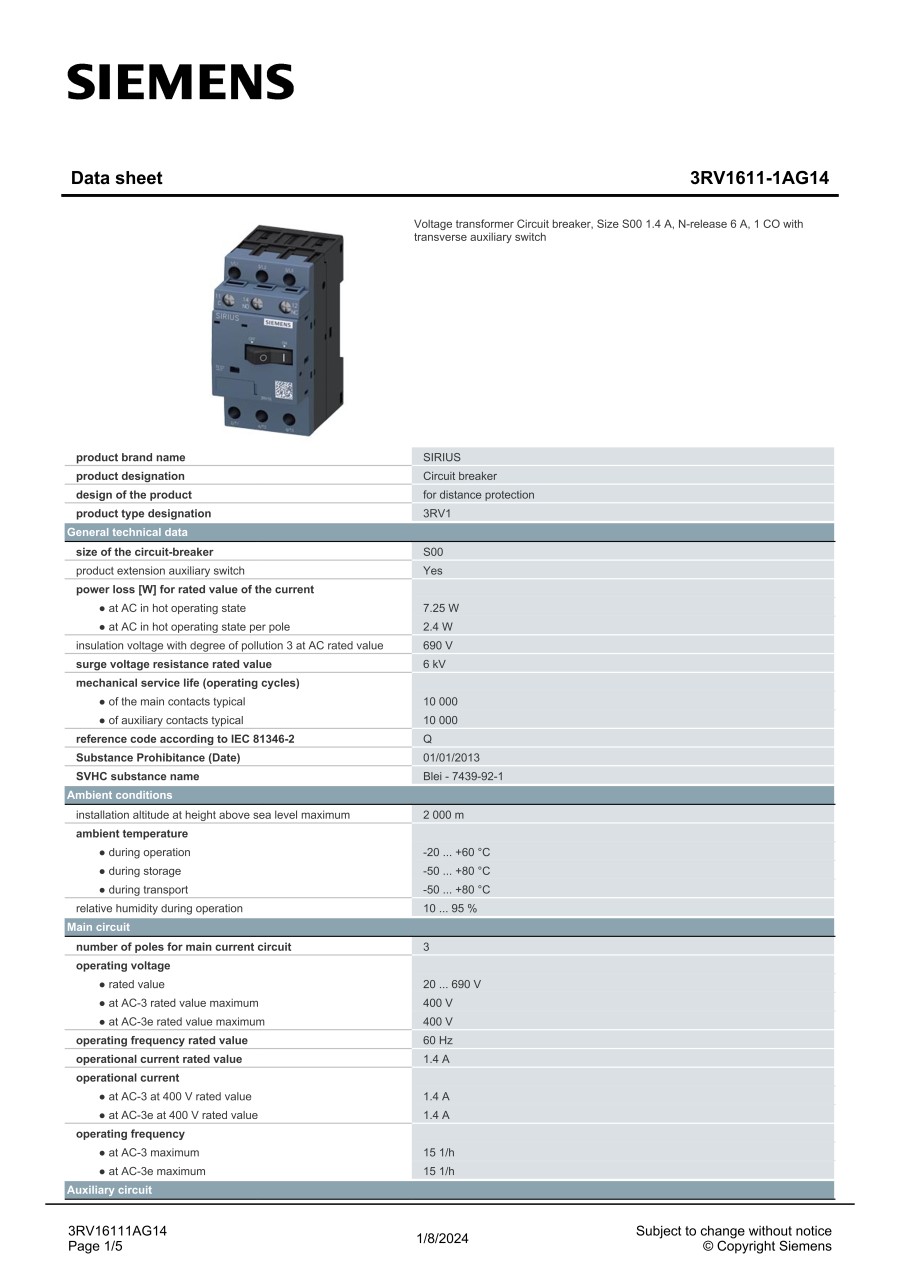

This page is Voltage transformer Circuit breaker, part number 3RV16111AG14.
You can find the detail information about specifications and dimensions on part number 3RV16111AG14.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
