Circuit breaker size S0 for system protection
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|

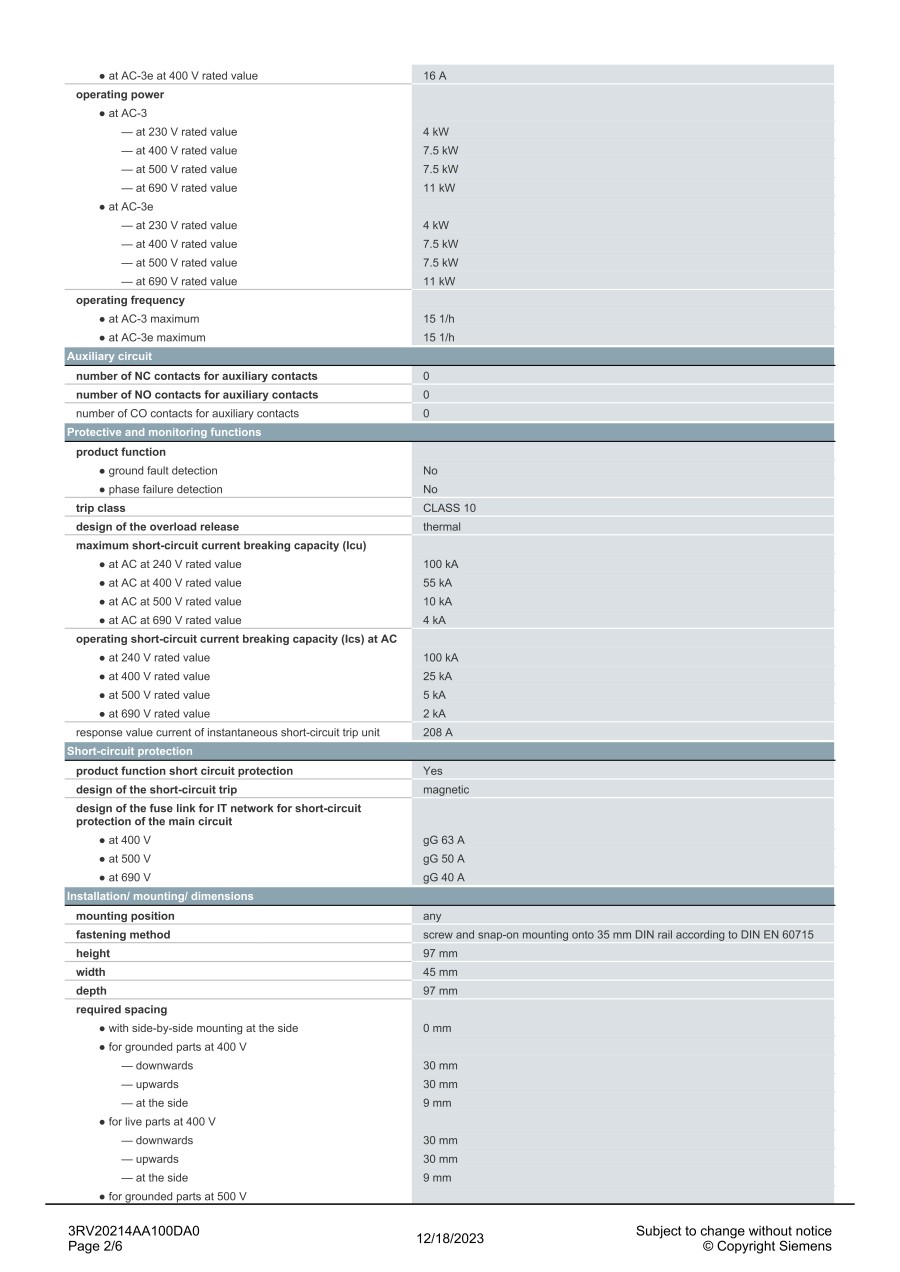

| 3RV20214AA100DA0 |
| 3RV20214EA100DA0 |
| 3RV27214BD10 |
| 3RV27214CD10 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Product size (height) (mm) | Adjustment range (amperage) | Current load (A) | |
|---|---|---|---|---|---|---|---|
141.61 € | 1 | Available | 12 Days | 97 | 10 - 16 A | 16 | |
213.16 € | 1 | Available | 12 Days | 97 | 27 - 32 A | 32 | |
229.55 € | 1 | Available | 13 Days | 144 | 20 A (max) | - | |
283.12 € | 1 | Available | 12 Days | 144 | 22 A (max) | - |
Loading...
Basic information
| No. of pins | 3 | Product size (width)(mm) | 45 | Product size (depth)(mm) | 97 |
|---|---|---|---|---|---|
| Switching voltage (max.)(V AC) | 690 V AC | Frame size | S0 | IP rating | IP20 |
| Connection (components) | Screw terminals | Mounting type (relays) | DIN rail | Product type | Circuit breaker |
| Ambient temperature (min.)(°C) | -20 | Ambient temperature (max.)(°C) | +60 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
