Block busbar 2Ph.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Z-SV/UL-16/2P-2TE/6
Basic information
| Insulated | true | Number of phases | 2 | Cross section(mm²) | 16 |
|---|---|---|---|---|---|
| Rated permanent current Iu(A) | 0 | Number of poles | 2 | Length(mm) | 105 |
| Conditioned rated short-circuit current Iq(kA) | 0 | Rated surge voltage(kV) | 9.5 | Type of electric connection | Pin |
| Number of modular spacings | 2 | Rated short-time withstand current lcw(kA) | 0 | Suitable for devices with auxiliary switch | false |
| Suitable for devices with N-busbar | false | Suitable for number of devices | 0 | Max. rated operation voltage Ue(V) | 690 |
| Pitch dimensions(mm) | 0 |

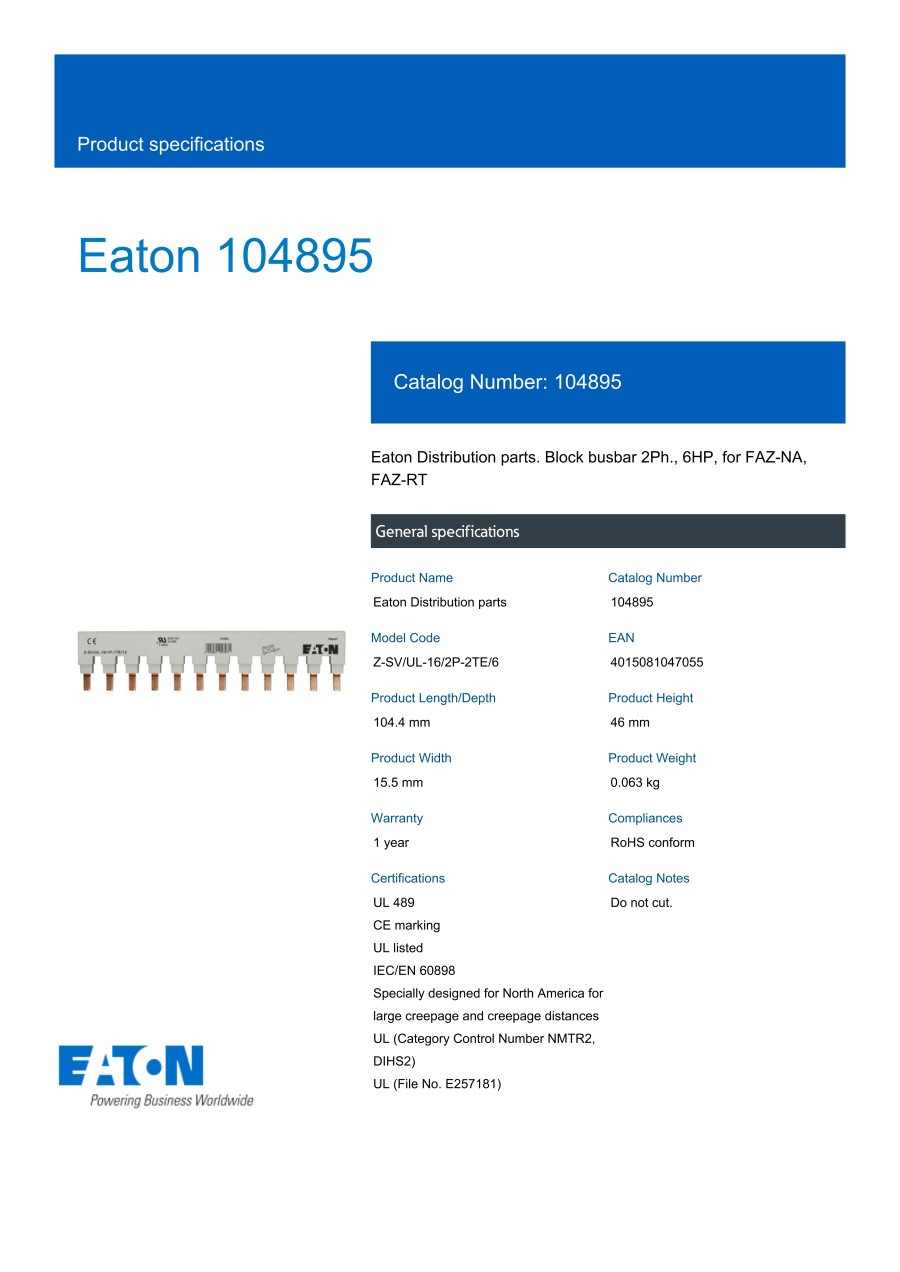

This page is Block busbar 2Ph., part number Z-SV/UL-16/2P-2TE/6.
You can find the detail information about specifications and dimensions on part number Z-SV/UL-16/2P-2TE/6.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
