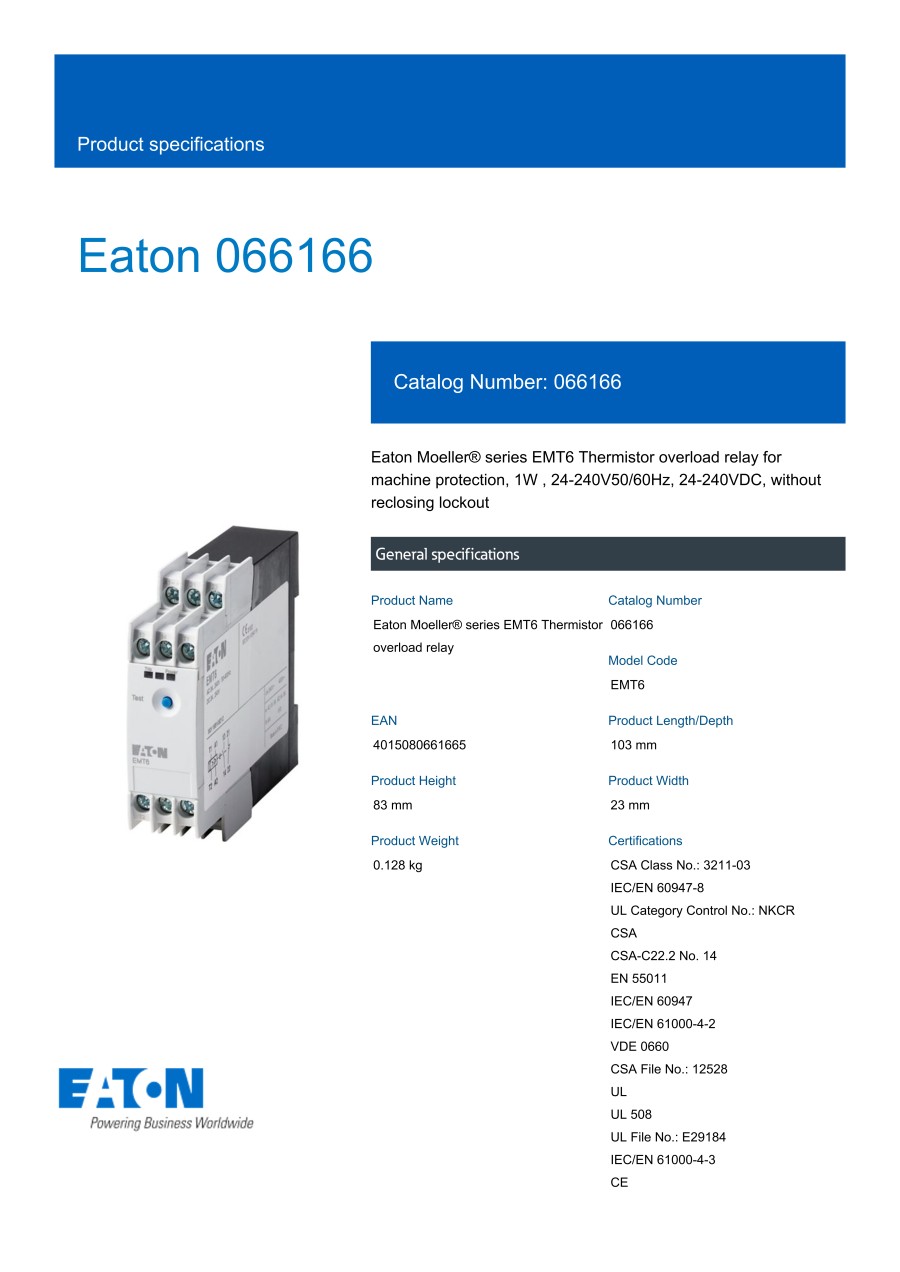

Thermistor machine protection relay, 1 NO + 1 NC, 24 - 240 V 50 - 400 Hz, 24 - 240 V DC, without restart lock
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| EMT6 |
| EMT6(230V) |
| EMT6-DB |
| EMT6-DB(230V) |
| EMT6-DBK |
| EMT6-K |
| EMT6-KDB |
| EMT62 |
| EMT62-DB |
| Part Number | Related to |
Standard Unit Price
| Minimum order quantity | Volume Discount | Error registration possible | Number of measuring circuits | External reset possible | Rated control supply voltage Us at AC 50HZ (V) | Rated control supply voltage Us at AC 60HZ (V) | Rated control supply voltage Us at DC (V) | Voltage type for actuating | Number of contacts as normally closed contact | Number of contacts as normally open contact | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| - | 136.64 € | 1 | 3 Days | false | 1 | false | 24|240 | 24|240 | 24|240 | AC/DC | 1 | 1 | ||
106.59 € | 1 | 3 Days | false | 1 | false | 230|230 | 230|230 | 0|0 | AC | 1 | 1 | |||
219.02 € | 1 | 3 Days | false | 1 | true | 24|240 | 24|240 | 24|240 | AC/DC | 1 | 1 | |||
184.44 € | 1 | 3 Days | false | 1 | true | 230|230 | 230|230 | 0|0 | AC | 1 | 1 | |||
281.44 € | 1 | 3 Days | true | 1 | true | 24|240 | 24|240 | 24|240 | AC/DC | 1 | 1 | |||
133.50 € | 1 | 3 Days | false | 1 | false | 24|240 | 24|240 | 24|240 | AC/DC | 1 | 1 | |||
229.54 € | 1 | 3 Days | false | 1 | true | 24|240 | 24|240 | 24|240 | AC/DC | 1 | 1 | |||
177.69 € | 1 | 3 Days | false | 2 | false | 24|240 | 24|240 | 24|240 | AC/DC | 0 | 2 | |||
293.92 € | 1 | 93 Days | false | 2 | true | 24|240 | 24|240 | 24|240 | AC/DC | 0 | 2 |
Loading...
Basic information
| Width(mm) | 23 | Height(mm) | 84 | Depth(mm) | 104 |
|---|---|---|---|---|---|
| With detachable clamps | false | Type of electric connection | Screw connection | Number of contacts as change-over contact | 0 |
| Temperature measuring range(°C) | 0|0 | Resistance measuring range(Ohm) | 750|12000 |
Configure
Basic Attributes
-
Error registration possible
-
Number of measuring circuits
-
External reset possible
-
Rated control supply voltage Us at AC 50HZ(V)
-
Rated control supply voltage Us at AC 60HZ(V)
-
Rated control supply voltage Us at DC(V)
-
Voltage type for actuating
-
Number of contacts as normally closed contact
-
Number of contacts as normally open contact
-
Type
Filter by standard shipping days
-
- All
- 3 Days or Less
- 93 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
