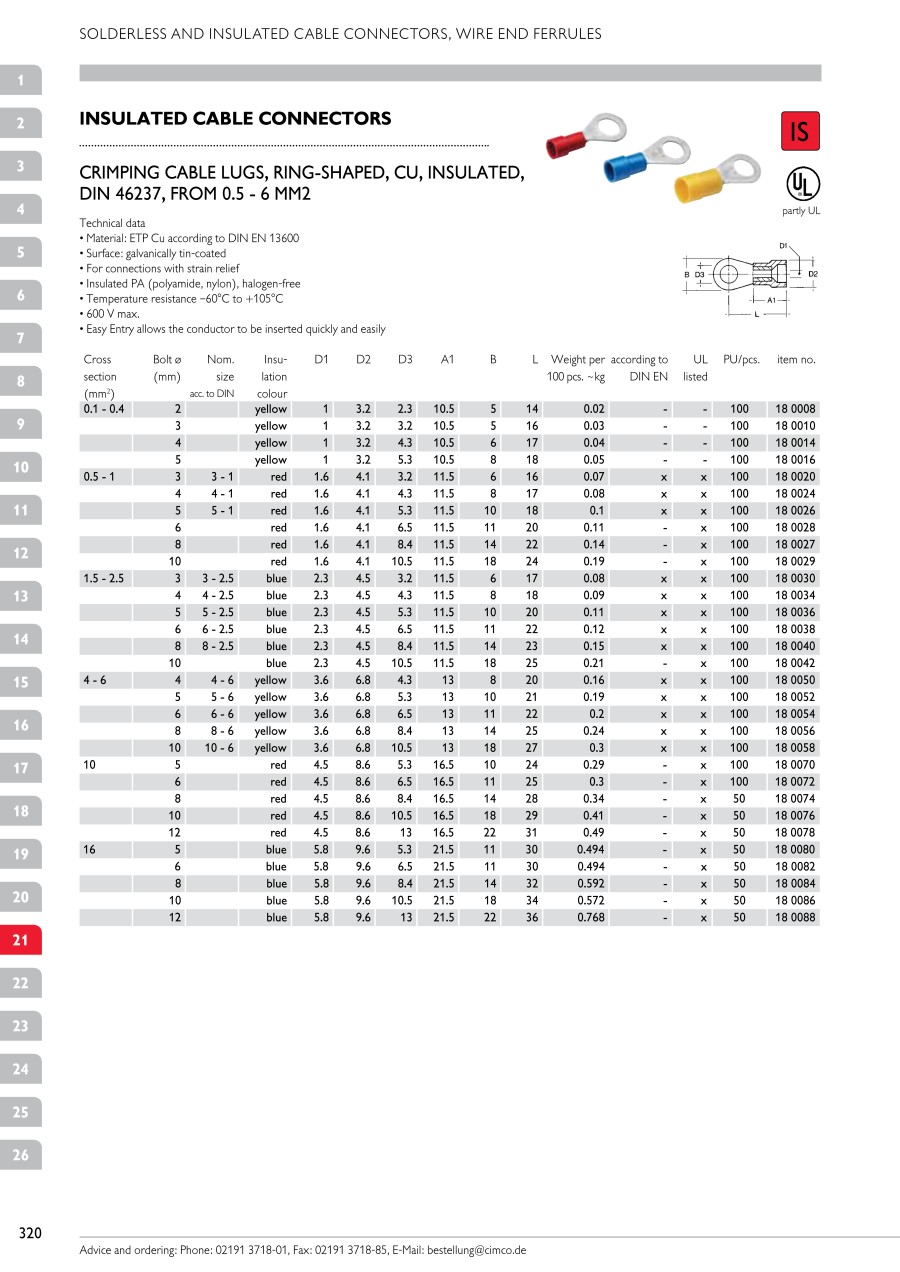

Crimping Cable Lugs / Ring-shaped / Cu / Blue, Metal, Red, Yellow / Partially insulated, Not insulated
- Volume Discount
・Material: ETP Cu according to DIN EN 13600
・Surface: galvanically tin-coated
・For connections with strain relief
・Insulated PA (polyamide, nylon), halogen-free
・Especially suitable for finely stranded conductors according to IEC 228
・Colour: Blue, Metal, Red, Yellow
・Insulation type: Partially insulated, Not insulated
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Colour | Cross-section range | Cross section (mm²) | Cross section (max.) (mm²) | Hole Ø (mm) | Insulation type | Insulation material | Manufacturer part # | Material (details) | Min. cross section (mm²) | Size | Support sleeve | Temperature range (°C) | Thread size | Type (manufacturer type) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0.24 € | 1 | Available | 3 Days | Yellow | 0.10 - 0.40 mm² | 0.1 - 0.4 | 0.40 | 2.3 | Partially insulated | Polyamide | 180008 | Cu-ETP according to DIN EN 13600 · Halogen-free PA insulation (polyamide. nylon) | 0.10 | M2 | Yes | -60 - +105 | M2 | 180008 | |
0.24 € | 1 | Available | 3 Days | Yellow | 0.10 - 0.40 mm² | 0.1 - 0.4 | 0.40 | 3.2 | Partially insulated | Polyamide | 180010 | Cu-ETP according to DIN EN 13600 · Halogen-free PA insulation (polyamide. nylon) | 0.10 | M3 | Yes | -60 - +105 | M3 | 180010 | |
0.24 € | 1 | Available | 3 Days | Yellow | 0.10 - 0.40 mm² | 0.1 - 0.4 | 0.40 | 4.3 | Partially insulated | Polyamide | 180014 | Cu-ETP according to DIN EN 13600 · Halogen-free PA insulation (polyamide. nylon) | 0.10 | M4 | Yes | -60 - +105 | M4 | 180014 | |
0.25 € | 1 | Available | 3 Days | Yellow | 0.10 - 0.40 mm² | 0.1 - 0.4 | 0.40 | 5.3 | Partially insulated | Polyamide | 180016 | Cu-ETP according to DIN EN 13600 · Halogen-free PA insulation (polyamide. nylon) | 0.10 | M5 | Yes | -60 - +105 | M5 | 180016 | |
0.20 € | 1 | Available | 3 Days | Red | 0.50 - 1 mm² | 0.5 - 1 | 1 | 3.2 | Partially insulated | Polyamide | 180020 | Cu-ETP according to DIN EN 13600 · Halogen-free PA insulation (polyamide. nylon) | 0.5 | M3 | Yes | -60 - +105 | M3 | 180020 | |
0.20 € | 1 | Available | 3 Days | Red | 0.50 - 1 mm² | 0.5 - 1 | 1 | 4.3 | Partially insulated | Polyamide | 180024 | Cu-ETP according to DIN EN 13600 · Halogen-free PA insulation (polyamide. nylon) | 0.5 | M4 | Yes | -60 - +105 | M4 | 180024 | |
0.20 € | 1 | Available | 3 Days | Red | 0.50 - 1 mm² | 0.5 - 1 | 1 | 5.3 | Partially insulated | Polyamide | 180026 | Cu-ETP according to DIN EN 13600 · Halogen-free PA insulation (polyamide. nylon) | 0.5 | M5 | Yes | -60 - +105 | M5 | 180026 | |
0.32 € | 1 | Available | 3 Days | Red | 0.50 - 1 mm² | 0.5 - 1 | 1 | 8.4 | Partially insulated | Polyamide | 180027 | Cu-ETP according to DIN EN 13600 · Halogen-free PA insulation (polyamide. nylon) | 0.5 | M8 | Yes | -60 - +105 | M8 | 180027 | |
0.27 € | 1 | Available | 3 Days | Red | 0.50 - 1 mm² | 0.5 - 1 | 1 | 6 | Partially insulated | Polyamide | 180028 | Cu-ETP according to DIN EN 13600 · Halogen-free PA insulation (polyamide. nylon) | 0.5 | M6 | Yes | -60 - +105 | M6 | 180028 | |
0.32 € | 1 | Available | 3 Days | Red | 0.50 - 1 mm² | 0.5 - 1 | 1 | 10.5 | Partially insulated | Polyamide | 180029 | Cu-ETP according to DIN EN 13600 · Halogen-free PA insulation (polyamide. nylon) | 0.5 | M10 | Yes | -60 - +105 | M10 | 180029 | |
0.20 € | 1 | Available | 3 Days | Blue | 1.50 - 2.50 mm² | 1.5 - 2.5 | 2.5 | 3.2 | Partially insulated | Polyamide | 180030 | Cu-ETP according to DIN EN 13600 · Halogen-free PA insulation (polyamide. nylon) | 1.5 | M3 | Yes | -60 - +105 | M3 | 180030 | |
0.20 € | 1 | Available | 3 Days | Blue | 1.50 - 2.50 mm² | 1.5 - 2.5 | 2.5 | 4.3 | Partially insulated | Polyamide | 180034 | Cu-ETP according to DIN EN 13600 · Halogen-free PA insulation (polyamide. nylon) | 1.5 | M4 | Yes | -60 - +105 | M4 | 180034 | |
0.20 € | 1 | Available | 3 Days | Blue | 1.50 - 2.50 mm² | 1.5 - 2.5 | 2.5 | 5.3 | Partially insulated | Polyamide | 180036 | Cu-ETP according to DIN EN 13600 · Halogen-free PA insulation (polyamide. nylon) | 1.5 | M5 | Yes | -60 - +105 | M5 | 180036 | |
0.27 € | 1 | Available | 3 Days | Blue | 1.50 - 2.50 mm² | 1.5 - 2.5 | 2.5 | 6 | Partially insulated | Polyamide | 180038 | Cu-ETP according to DIN EN 13600 · Halogen-free PA insulation (polyamide. nylon) | 1.5 | M6 | Yes | -60 - +105 | M6 | 180038 | |
0.32 € | 1 | Available | 3 Days | Blue | 1.50 - 2.50 mm² | 1.5 - 2.5 | 2.5 | 8.4 | Partially insulated | Polyamide | 180040 | Cu-ETP according to DIN EN 13600 · Halogen-free PA insulation (polyamide. nylon) | 1.5 | M8 | Yes | -60 - +105 | M8 | 180040 | |
0.32 € | 1 | Available | 3 Days | Blue | 1.50 - 2.50 mm² | 1.5 - 2.5 | 2.5 | 10.5 | Partially insulated | Polyamide | 180042 | Cu-ETP according to DIN EN 13600 · Halogen-free PA insulation (polyamide. nylon) | 1.5 | M10 | Yes | -60 - +105 | M10 | 180042 | |
0.32 € | 1 | Available | 3 Days | Yellow | 4 - 6 mm² | 4 - 6 | 6 | 4.3 | Partially insulated | Polyamide | 180050 | Cu-ETP according to DIN EN 13600 · Halogen-free PA insulation (polyamide. nylon) | 4 | M4 | Yes | -60 - +105 | M4 | 180050 | |
0.32 € | 1 | Available | 3 Days | Yellow | 4 - 6 mm² | 4 - 6 | 6 | 5.3 | Partially insulated | Polyamide | 180052 | Cu-ETP according to DIN EN 13600 · Halogen-free PA insulation (polyamide. nylon) | 4 | M5 | Yes | -60 - +105 | M5 | 180052 | |
0.32 € | 1 | Available | 3 Days | Yellow | 4 - 6 mm² | 4 - 6 | 6 | 6.5 | Partially insulated | Polyamide | 180054 | Cu-ETP according to DIN EN 13600 · Halogen-free PA insulation (polyamide. nylon) | 4 | M6 | Yes | -60 - +105 | M6 | 180054 | |
0.32 € | 1 | Available | 3 Days | Yellow | 4 - 6 mm² | 4 - 6 | 6 | 8.4 | Partially insulated | Polyamide | 180056 | Cu-ETP according to DIN EN 13600 · Halogen-free PA insulation (polyamide. nylon) | 4 | M8 | Yes | -60 - +105 | M8 | 180056 | |
0.40 € | 1 | Available | 3 Days | Yellow | 4 - 6 mm² | 4 - 6 | 6 | 10.5 | Partially insulated | Polyamide | 180058 | Cu-ETP according to DIN EN 13600 · Halogen-free PA insulation (polyamide. nylon) | 4 | M10 | Yes | -60 - +105 | M10 | 180058 | |
0.83 € | 1 | Available | 3 Days | Red | 10 mm² (max) | 10 | 10 | 5.3 | Partially insulated | Polyamide | 180070 | Cu-ETP according to DIN EN 13600 · Halogen-free PA insulation (polyamide. nylon) | - | M5 | Yes | -60 - +105 | M5 | 180070 | |
0.85 € | 1 | Available | 3 Days | Red | 10 mm² (max) | 10 | 10 | 6.5 | Partially insulated | Polyamide | 180072 | Cu-ETP according to DIN EN 13600 · Halogen-free PA insulation (polyamide. nylon) | - | M6 | Yes | -60 - +105 | M6 | 180072 | |
1.33 € | 1 | Available | 3 Days | Red | 10 mm² (max) | 10 | 10 | 8.4 | Partially insulated | Polyamide | 180074 | Cu-ETP according to DIN EN 13600 · Halogen-free PA insulation (polyamide. nylon) | - | M8 | Yes | -60 - +105 | M8 | 180074 | |
1.33 € | 1 | Available | 3 Days | Red | 10 mm² (max) | 10 | 10 | 10.5 | Partially insulated | Polyamide | 180076 | Cu-ETP according to DIN EN 13600 · Halogen-free PA insulation (polyamide. nylon) | - | M10 | Yes | -60 - +105 | M10 | 180076 | |
1.33 € | 1 | Available | 3 Days | Red | 10 mm² (max) | 10 | 10 | 13 | Partially insulated | Polyamide | 180078 | Cu-ETP according to DIN EN 13600 · Halogen-free PA insulation (polyamide. nylon) | - | M12 | Yes | -60 - +105 | M12 | 180078 | |
1.33 € | 1 | Available | 3 Days | Blue | 16 mm² (max) | 16 | 16 | 5.3 | Partially insulated | Polyamide | 180080 | Cu-ETP according to DIN EN 13600 · Halogen-free PA insulation (polyamide. nylon) | - | M5 | Yes | -60 - +105 | M5 | 180080 | |
1.53 € | 1 | Available | 3 Days | Blue | 16 mm² (max) | 16 | 16 | 6.5 | Partially insulated | Polyamide | 180082 | Cu-ETP according to DIN EN 13600 · Halogen-free PA insulation (polyamide. nylon) | - | M6 | Yes | -60 - +105 | M6 | 180082 | |
1.53 € | 1 | Available | 3 Days | Blue | 16 mm² (max) | 16 | 16 | 8.4 | Partially insulated | Polyamide | 180084 | Cu-ETP according to DIN EN 13600 · Halogen-free PA insulation (polyamide. nylon) | - | M8 | Yes | -60 - +105 | M8 | 180084 | |
1.53 € | 1 | Available | 3 Days | Blue | 16 mm² (max) | 16 | 16 | 10.5 | Partially insulated | Polyamide | 180086 | Cu-ETP according to DIN EN 13600 · Halogen-free PA insulation (polyamide. nylon) | - | M10 | Yes | -60 - +105 | M10 | 180086 | |
1.53 € | 1 | Available | 3 Days | Blue | 16 mm² (max) | 16 | 16 | 13 | Partially insulated | Polyamide | 180088 | Cu-ETP according to DIN EN 13600 · Halogen-free PA insulation (polyamide. nylon) | - | M12 | Yes | -60 - +105 | M12 | 180088 | |
0.16 € | 1 | Available | 3 Days | Metal | 0.50 - 1 mm² | - | 1 | 3.2 | Not insulated | - | 180400 | Cu-ETP according to DIN EN 13600 | 0.5 | - | No | - | M3 | 180400 | |
0.16 € | 1 | Available | 3 Days | Metal | 0.50 - 1 mm² | - | 1 | 5.3 | Not insulated | - | 180403 | Cu-ETP according to DIN EN 13600 | 0.5 | - | No | - | M5 | 180403 | |
0.16 € | 1 | Available | 3 Days | Metal | 1.50 - 2.50 mm² | - | 2.5 | 3.2 | Not insulated | - | 180407 | Cu-ETP according to DIN EN 13600 | 1.5 | - | No | - | M3 | 180407 | |
0.17 € | 1 | Available | 3 Days | Metal | 1.50 - 2.50 mm² | - | 2.5 | 4.3 | Not insulated | - | 180408 | Cu-ETP according to DIN EN 13600 | 1.5 | - | No | - | M4 | 180408 | |
0.20 € | 1 | Available | 3 Days | Metal | 1.50 - 2.50 mm² | 1.5 - 2.5 | 2.5 | 5.3 | Not insulated | - | 180410 | Cu-ETP according to DIN EN 13600 | 1.5 | M5 | No | - | M5 | 180410 | |
0.24 € | 1 | Available | 3 Days | Metal | 1.50 - 2.50 mm² | 1.5 - 2.5 | 2.5 | 6.5 | Not insulated | - | 180412 | Cu-ETP according to DIN EN 13600 | 1.5 | M6 | No | - | M6 | 180412 | |
0.27 € | 1 | Available | 3 Days | Metal | 1.50 - 2.50 mm² | 1.5 - 2.5 | 2.5 | 8.4 | Not insulated | - | 180413 | Cu-ETP according to DIN EN 13600 | 1.5 | M8 | No | - | M8 | 180413 | |
0.28 € | 1 | Available | 3 Days | Metal | 4 - 6 mm² | 4 - 6 | 6 | 4.3 | Not insulated | - | 180416 | Cu-ETP according to DIN EN 13600 | 4 | M4 | No | - | M4 | 180416 | |
0.29 € | 1 | Available | 3 Days | Metal | 4 - 6 mm² | 4 - 6 | 6 | 5.3 | Not insulated | - | 180418 | Cu-ETP according to DIN EN 13600 | 4 | M5 | No | - | M5 | 180418 | |
0.31 € | 1 | Available | 3 Days | Metal | 4 - 6 mm² | 4 - 6 | 6 | 6.5 | Not insulated | - | 180420 | Cu-ETP according to DIN EN 13600 | 4 | M6 | No | - | M6 | 180420 | |
0.39 € | 1 | Available | 3 Days | Metal | 4 - 6 mm² | 4 - 6 | 6 | 8.4 | Not insulated | - | 180422 | Cu-ETP according to DIN EN 13600 | 4 | M8 | No | - | M8 | 180422 | |
0.41 € | 1 | Available | 3 Days | Metal | 4 - 6 mm² | 4 - 6 | 6 | 10.5 | Not insulated | - | 180423 | Cu-ETP according to DIN EN 13600 | 4 | M10 | No | - | M10 | 180423 | |
0.39 € | 1 | Available | 3 Days | Metal | 10 mm² (max) | 10 | 10 | 5.3 | Not insulated | - | 180426 | Cu-ETP according to DIN EN 13600 | - | M5 | No | - | M5 | 180426 | |
0.39 € | 1 | Available | 3 Days | Metal | 10 mm² (max) | 10 | 10 | 6.5 | Not insulated | - | 180428 | Cu-ETP according to DIN EN 13600 | - | M6 | No | - | M6 | 180428 | |
0.45 € | 1 | Available | 3 Days | Metal | 10 mm² (max) | 10 | 10 | 8.4 | Not insulated | - | 180430 | Cu-ETP according to DIN EN 13600 | - | M8 | No | - | M8 | 180430 | |
0.51 € | 1 | Available | 3 Days | Metal | 10 mm² (max) | 10 | 10 | 10.5 | Not insulated | - | 180432 | Cu-ETP according to DIN EN 13600 | - | M10 | No | - | M10 | 180432 | |
0.71 € | 1 | Available | 3 Days | Metal | 10 mm² (max) | 10 | 10 | 13 | Not insulated | - | 180434 | Cu-ETP according to DIN EN 13600 | - | M12 | No | - | M12 | 180434 | |
0.79 € | 1 | Available | 3 Days | Metal | 16 mm² (max) | 16 | 16 | 5.3 | Not insulated | - | 180436 | Cu-ETP according to DIN EN 13600 | - | M5 | No | - | M5 | 180436 | |
0.81 € | 1 | Available | 3 Days | Metal | 16 mm² (max) | 16 | 16 | 6.5 | Not insulated | - | 180438 | Cu-ETP according to DIN EN 13600 | - | M6 | No | - | M6 | 180438 | |
0.80 € | 1 | Available | 3 Days | Metal | 16 mm² (max) | 16 | 16 | 8.4 | Not insulated | - | 180440 | Cu-ETP according to DIN EN 13600 | - | M8 | No | - | M8 | 180440 | |
0.76 € | 1 | Available | 3 Days | Metal | 16 mm² (max) | 16 | 16 | 10.5 | Not insulated | - | 180442 | Cu-ETP according to DIN EN 13600 | - | M10 | No | - | M10 | 180442 | |
0.87 € | 1 | Available | 3 Days | Metal | 16 mm² (max) | 16 | 16 | 13 | Not insulated | - | 180444 | Cu-ETP according to DIN EN 13600 | - | M12 | No | - | M12 | 180444 | |
0.88 € | 1 | Available | 3 Days | Metal | 25 mm² (max) | 25 | 25 | 5.3 | Not insulated | - | 180446 | Cu-ETP according to DIN EN 13600 | - | M5 | No | - | M5 | 180446 | |
0.85 € | 1 | Available | 3 Days | Metal | 25 mm² (max) | 25 | 25 | 6.5 | Not insulated | - | 180448 | Cu-ETP according to DIN EN 13600 | - | M6 | No | - | M6 | 180448 | |
1.33 € | 1 | Available | 3 Days | Metal | 25 mm² (max) | 25 | 25 | 8.4 | Not insulated | - | 180450 | Cu-ETP according to DIN EN 13600 | - | M8 | No | - | M8 | 180450 | |
1.33 € | 1 | Available | 3 Days | Metal | 25 mm² (max) | 25 | 25 | 10.5 | Not insulated | - | 180452 | Cu-ETP according to DIN EN 13600 | - | M10 | No | - | M10 | 180452 | |
1.33 € | 1 | Available | 3 Days | Metal | 25 mm² (max) | 25 | 25 | 13 | Not insulated | - | 180454 | Cu-ETP according to DIN EN 13600 | - | M12 | No | - | M12 | 180454 | |
1.33 € | 1 | Available | 3 Days | Metal | 25 mm² (max) | 25 | 25 | 17 | Not insulated | - | 180456 | Cu-ETP according to DIN EN 13600 | - | M16 | No | - | M16 | 180456 | |
1.33 € | 1 | Available | 3 Days | Metal | 35 mm² (max) | 35 | 35 | 6.5 | Not insulated | - | 180458 | Cu-ETP according to DIN EN 13600 | - | M6 | No | - | M6 | 180458 |
Loading...
Basic information
| Contact material | Cathode copper. tin plated | Product type | Ring terminal | RoHS-compliant | Yes |
|---|
Configure
Basic Attributes
-
Colour
-
Cross-section range
-
Cross section(mm²)
-
Cross section (max.)(mm²)
-
Hole Ø(mm)
-
Insulation type
-
Insulation material
-
Manufacturer part #
-
Material (details)
-
Min. cross section(mm²)
-
Size
-
Support sleeve
-
Temperature range(°C)
-
Thread size
-
Type (manufacturer type)
Filter by standard shipping days
-
- All
- 3 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
