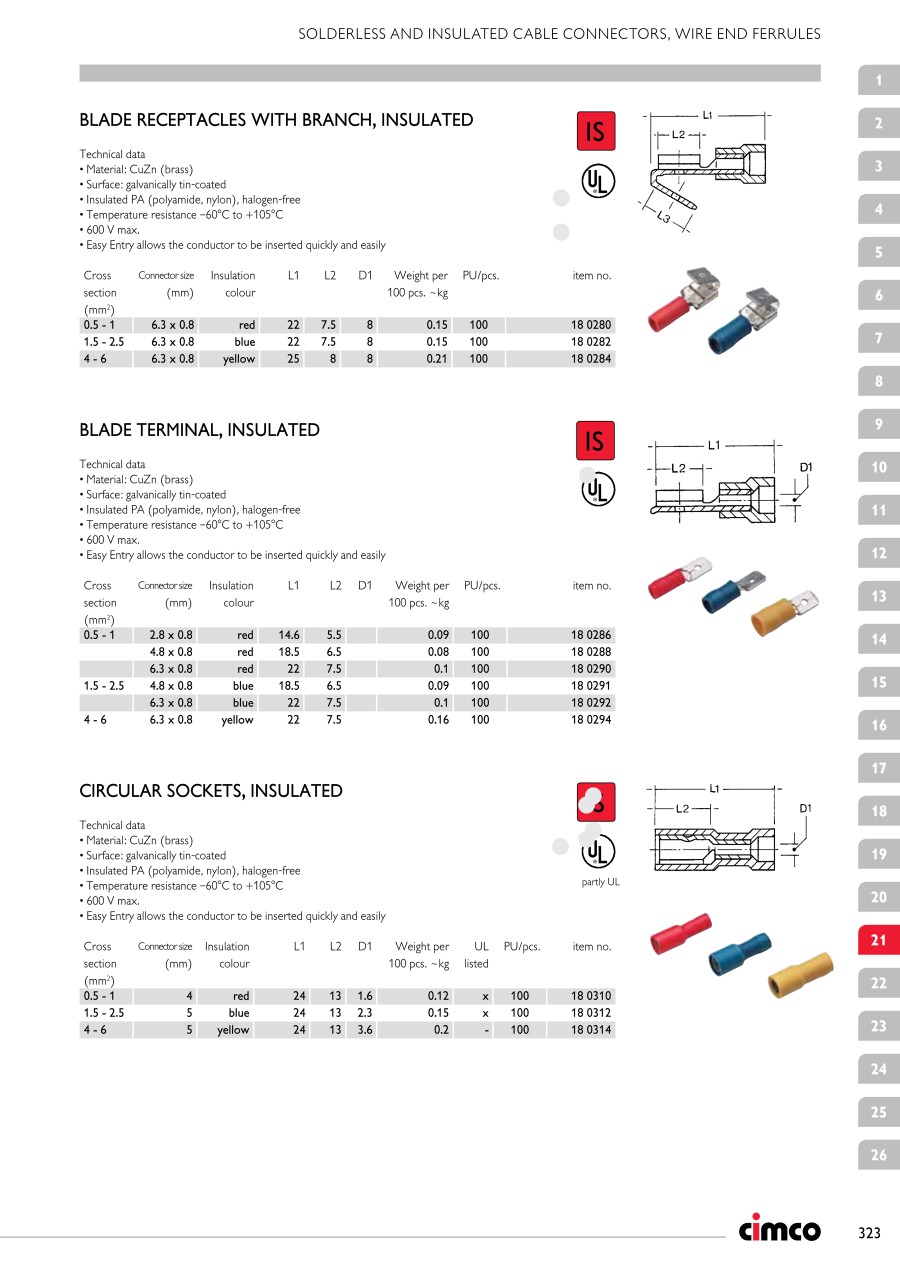

Blade terminal
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| 180286 |
| 180288 |
| 180290 |
| 180291 |
| 180292 |
| 180294 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Colour | Connector width (mm) | Cross-section range | Cross section (mm²) | Cross section (max.) (mm²) | Manufacturer part # | Min. cross section (mm²) | Size | Type (manufacturer type) | Type (misc.) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0.32 € | 1 | Available | 3 Days | Red | 2.8 | 0.50 - 1 mm² | 0.5 - 1 | 1 | 180286 | 0.5 | 2.8 x 0.8 mm | 180286 | 2.5 x 0.8 mm | |
0.29 € | 1 | Available | 3 Days | Red | 4.8 | 0.50 - 1 mm² | 0.5 - 1 | 1 | 180288 | 0.5 | 4.8 x 0.8 mm | 180288 | 4.8 x 0.8 mm | |
0.27 € | 1 | Available | 3 Days | Red | 6.3 | 0.50 - 1 mm² | 0.5 - 1 | 1 | 180290 | 0.5 | 6.3 x 0.8 mm | 180290 | 6.3 x 0.8 mm | |
0.29 € | 1 | Available | 3 Days | Blue | 4.8 | 1.50 - 2.50 mm² | 1.5 - 2.5 | 2.5 | 180291 | 1.5 | 4.8 x 0.8 mm | 180291 | 4.8 x 0.8 mm | |
0.24 € | 1 | Available | 3 Days | Blue | 6.3 | 1.50 - 2.50 mm² | 1.5 - 2.5 | 2.5 | 180292 | 1.5 | 6.3 x 0.8 mm | 180292 | 6.3 x 0.8 mm | |
0.28 € | 1 | Available | 3 Days | Yellow | 6.3 | 4 - 6 mm² | 4 - 6 | 6 | 180294 | 4 | 6.3 x 0.8 mm | 180294 | 6.3 x 0.8 mm |
Loading...
Basic information
| Connection angle(°) | 180 | Connector thickness(mm) | 0.8 | Contact material | Brass tin plated |
|---|---|---|---|---|---|
| Insulation type | Partially insulated | Insulation material | PA 6.6 | Insulation (material) | Halogen-free PA insulation (polyamide. nylon) |
| Material (details) | Material: CuZn (brass) | Product type | Blade terminal | RoHS-compliant | Yes |
| Support sleeve | Yes | Temperature range(°C) | -60 - +105 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
