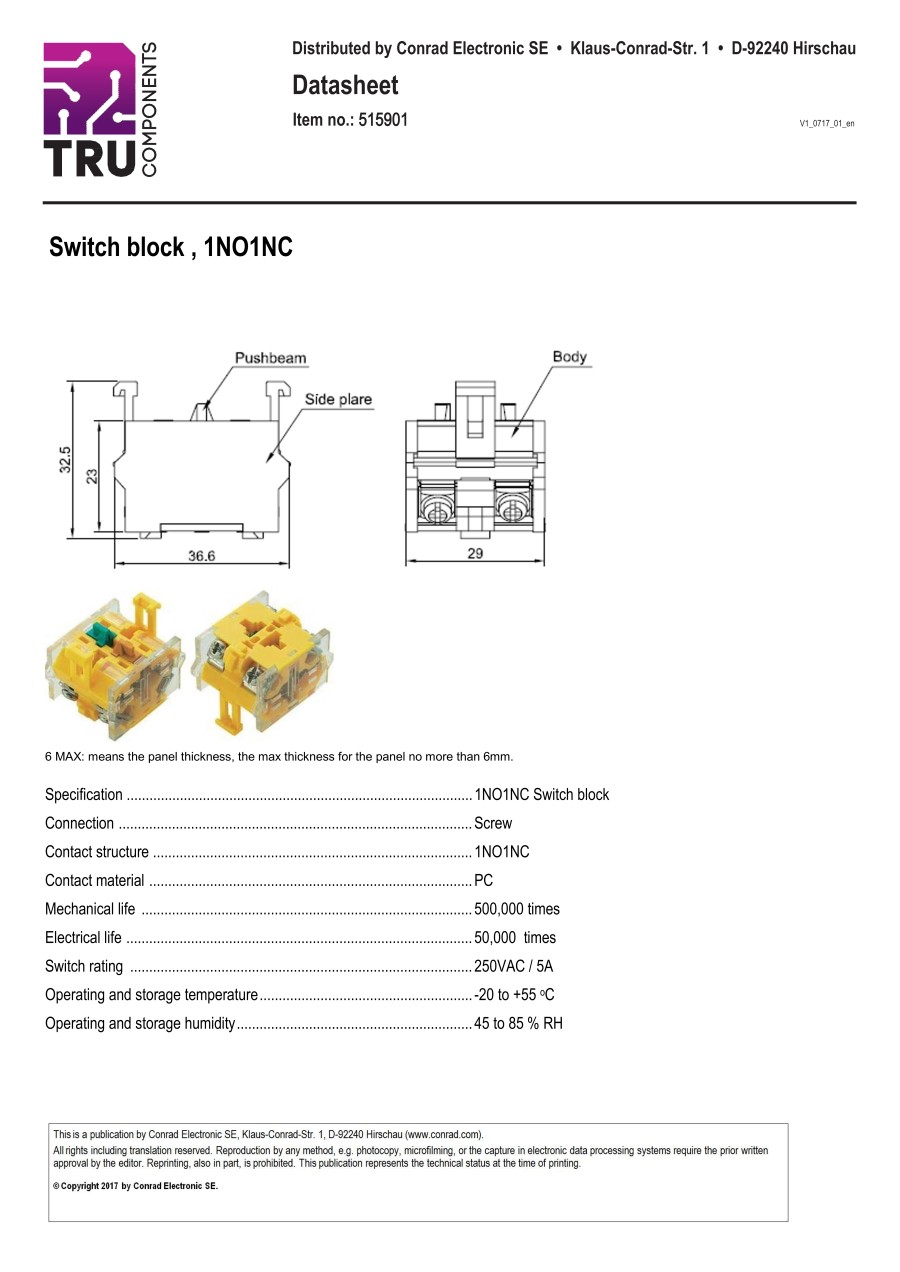

LAS0-B Contact
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
515901
Basic information
| Connection (components) | Screws | Contact material | Silver | Contact type | 1 breaker|1 maker |
|---|---|---|---|---|---|
| Durability | 1 million cycles | Electrical lifespan | 50 000 cycles | Functions (switches) | momentary |
| IP rating | IP40 | Max. temperature(°C) | +55 | Min. temperature(°C) | -25 |
| Mounting type | Front panel fixed | Product size (height)(mm) | 32 | Product size (width)(mm) | 29 |
| Product size (length)(mm) | 36 | Product type | Contact | RoHS-compliant | Yes |
| Switching current (max.)(A) | 2 | Switching voltage(V AC) | 500 | Switch position(s) | 1 NO. 1 NC |
| Type (manufacturer type) | LAS0-B | Weight(g) | 26 |
This page is LAS0-B Contact, part number 515901.
You can find the detail information about specifications and dimensions on part number 515901.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
