Screw terminal【600 Pieces Per Package】
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
237-112
Basic information
| AWG (min.) | 20 | AWG max. | 14 | Contact spacing(mm) | 10|10.16 |
|---|---|---|---|---|---|
| Max. cross section (flexible)(mm²) | 2.5 | Min. cross section (flexible)(mm²) | 0.5 | Max. cross section (inflexible)(mm²) | 2.5 |
| Min. cross section (inflexible)(mm²) | 0.5 | No. of rows | 1 | Nominal voltage(V) | 800 |
| Product size (height)(mm) | 10.00 | Product size (length)(mm) | 9 | Product size (width)(mm) | 11 |
| Series (PCB terminals) | 237 | Pins per row | 1 | Connection (components) | Screw terminal|Print |
| Contact material | Cathode copper. tin plated | Industrial goods | Yes | Wire protection | Yes |
| Actuation direction | Perpendicular (to the PCB) | Colour | Grey | Connector orientation | Parallel (to the PCB) |
| Manufacturer part # | 237-112 | Min. stripping length(mm) | 5 | Number of pins | 1 |
| Product type | Screw terminal | Stripping length (max.)(mm) | 6 | Type (manufacturer type) | 237-112 |

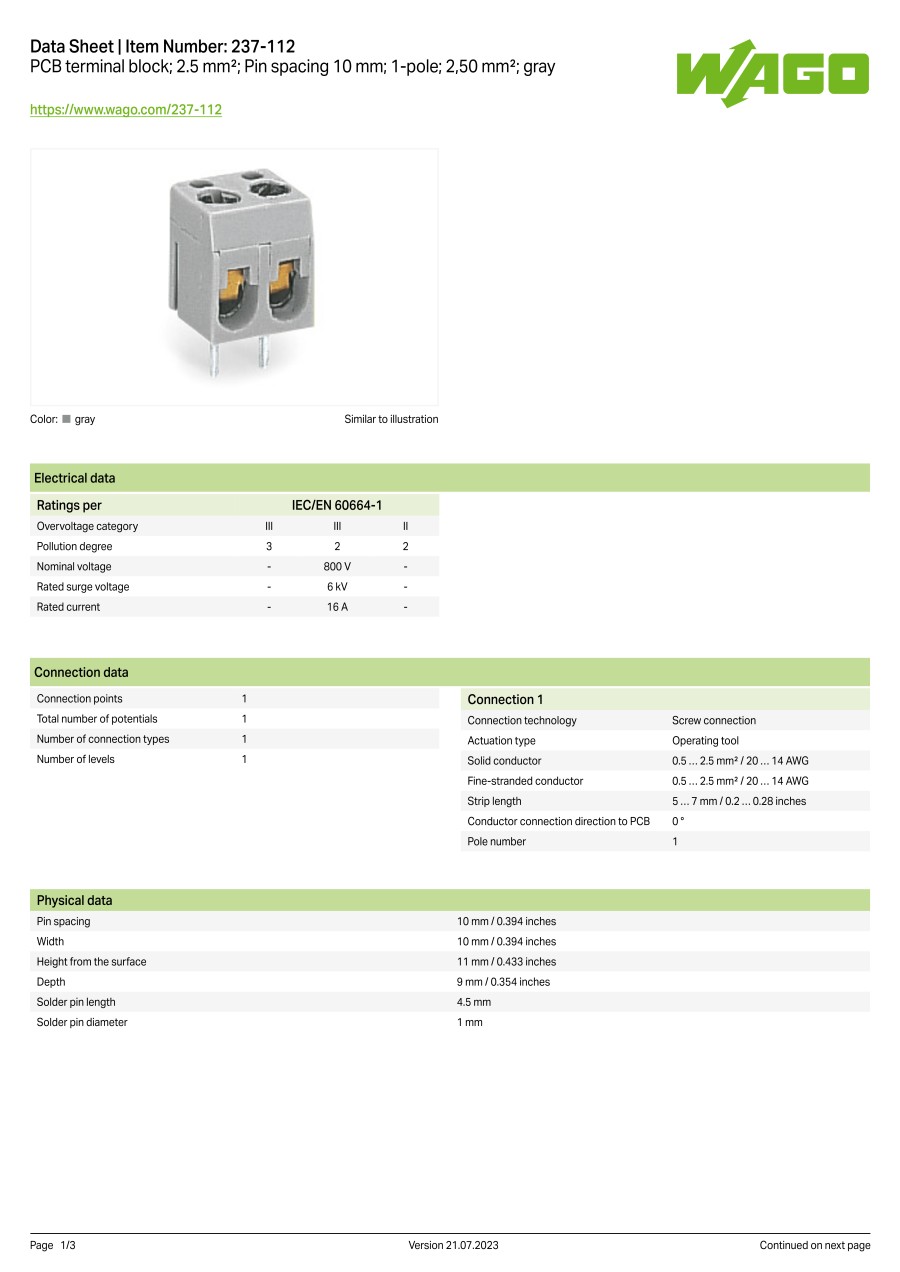

This page is Screw terminal, part number 237-112.
You can find the detail information about specifications and dimensions on part number 237-112.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
