JST (JST MANUFACTURING)

Multi-pin Connector Series ZH

Multi-pin Connector Series ZH

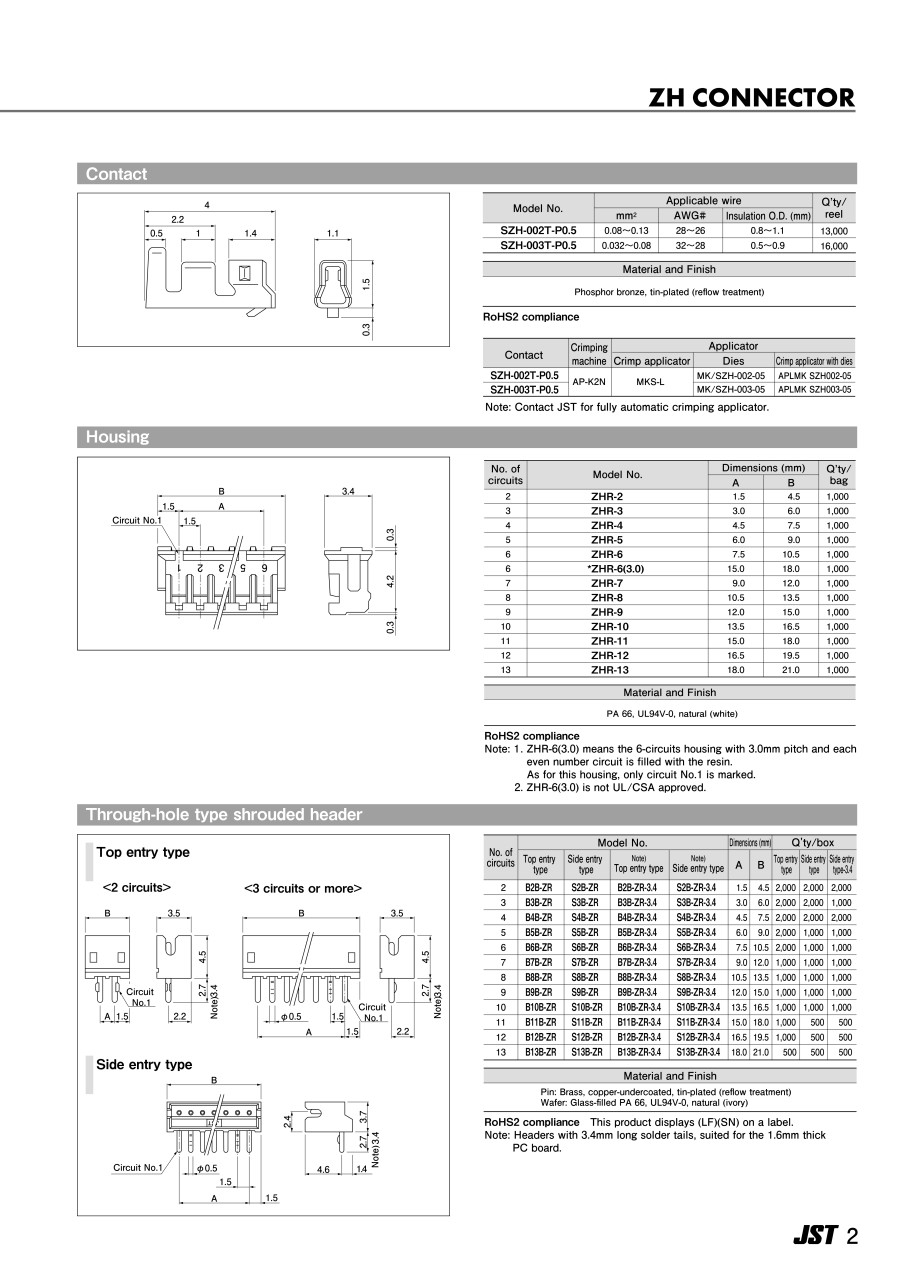

Catalog

Part number:

Still undefined. 16 possible part numbers found.

Part number list
Catalog

Part number list

Number of items

Part number

B2B-ZR (LF)(SN)

B3B-ZR (LF)(SN)

B4B-ZR (LF)(SN)

B5B-ZR (LF)(SN)

B6B-ZR (LF)(SN)

B7B-ZR (LF)(SN)

B8B-ZR (LF)(SN)

B9B-ZR (LF)(SN)

B10B-ZR (LF)(SN)

B12B-ZR (LF)(SN)

S2B-ZR (LF)(SN)

S3B-ZR (LF)(SN)

S4B-ZR (LF)(SN)

S5B-ZR (LF)(SN)

S6B-ZR (LF)(SN)

S8B-ZR (LF)(SN)

Number of Positions

Connector Type

Board contact surface

Connector orientation

Connector contact surface

Contact surface

Manufacturer part #

Number of pins

Pins per row

Product size (height)

(mm)

Product size (length)

(mm)

Type (manufacturer type)

Minimum order quantity

2	Pin strip. straight	Tin plated	Perpendicular (to the PCB)	Tin plated	-	B2B-ZR (LF)(SN)	2	2	7.2	4.5	B2B-ZR (LF)(SN)	1 pieces
3	Pin strip. straight	Tin plated	Perpendicular (to the PCB)	Tin plated	-	B3B-ZR (LF)(SN)	3	3	7.2	6	B3B-ZR (LF)(SN)	1 pieces
4	Pin strip. straight	Tin plated	Perpendicular (to the PCB)	Tin plated	-	B4B-ZR (LF)(SN)	4	4	7.2	7.5	B4B-ZR (LF) (SN)	1 pieces
5	Pin strip. straight	-	Perpendicular (to the PCB)	-	Tin plated	B5B-ZR (LF)(SN)	5	5	7.2	9	B5B-ZR (LF)(SN)	1 pieces
6	Pin strip. straight	Tin plated	Perpendicular (to the PCB)	Tin plated	-	B6B-ZR (LF)(SN)	6	6	7.2	10.5	B6B-ZR (LF)(SN)	1 pieces
7	Pin strip. straight	Tin plated	Perpendicular (to the PCB)	Tin plated	-	B7B-ZR (LF)(SN)	7	7	7.2	12	B7B-ZR (LF)(SN)	1 pieces
8	Pin strip. straight	Tin plated	Perpendicular (to the PCB)	Tin plated	-	B8B-ZR (LF)(SN)	8	8	7.2	13.5	B8B-ZR (LF)(SN)	1 pieces
9	Pin strip. straight	Tin plated	Perpendicular (to the PCB)	Tin plated	-	B9B-ZR (LF)(SN)	9	9	7.2	15	B9B-ZR (LF)(SN)	1 pieces
10	Pin strip. straight	Tin plated	Perpendicular (to the PCB)	Tin plated	-	B10B-ZR (LF)(SN)	10	10	7.2	16.5	B10B-ZR (LF)(SN)	1 pieces
12	Pin strip. straight	Tin plated	Perpendicular (to the PCB)	Tin plated	-	B12B-ZR (LF)(SN)	12	12	7.2	19.5	B12B-ZR (LF)(SN)	1 pieces
2	Pin strip. right angle	Tin plated	Parallel (to the PCB)	Tin plated	-	S2B-ZR (LF)(SN)	2	2	6.4	4.5	S2B-ZR (LF)(SN)	1 pieces
3	Pin strip. right angle	Tin plated	Parallel (to the PCB)	Tin plated	-	S3B-ZR (LF)(SN)	3	3	6.4	6	S3B-ZR (LF)(SN)	1 pieces
4	Pin strip. right angle	Tin plated	Parallel (to the PCB)	Tin plated	-	S4B-ZR (LF)(SN)	4	4	6.4	7.5	S4B-ZR (LF)(SN)	1 pieces
5	Pin strip. right angle	Tin plated	Parallel (to the PCB)	Tin plated	-	S5B-ZR (LF)(SN)	5	5	6.4	9	S5B-ZR (LF)(SN)	1 pieces
6	Pin strip. right angle	Tin plated	Parallel (to the PCB)	Tin plated	-	S6B-ZR (LF)(SN)	6	6	6.4	10.5	S6B-ZR (LF)(SN)	1 pieces
8	Pin strip. right angle	Tin plated	Parallel (to the PCB)	Tin plated	-	S8B-ZR (LF)(SN)	8	8	6.4	13.5	S8B-ZR (LF)(SN)	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

0.45 € ( 0.54 € )	3 working days
0.51 € ( 0.61 € )	3 working days
0.60 € ( 0.71 € )	3 working days
0.71 € ( 0.84 € )	3 working days
0.84 € ( 1.00 € )	3 working days
0.93 € ( 1.11 € )	3 working days
0.99 € ( 1.18 € )	3 working days
1.01 € ( 1.20 € )	3 working days
1.33 € ( 1.58 € )	3 working days
1.33 € ( 1.58 € )	3 working days
0.47 € ( 0.56 € )	3 working days
0.51 € ( 0.61 € )	3 working days
0.65 € ( 0.77 € )	3 working days
0.73 € ( 0.87 € )	3 working days
0.88 € ( 1.05 € )	3 working days
1.01 € ( 1.20 € )	3 working days
