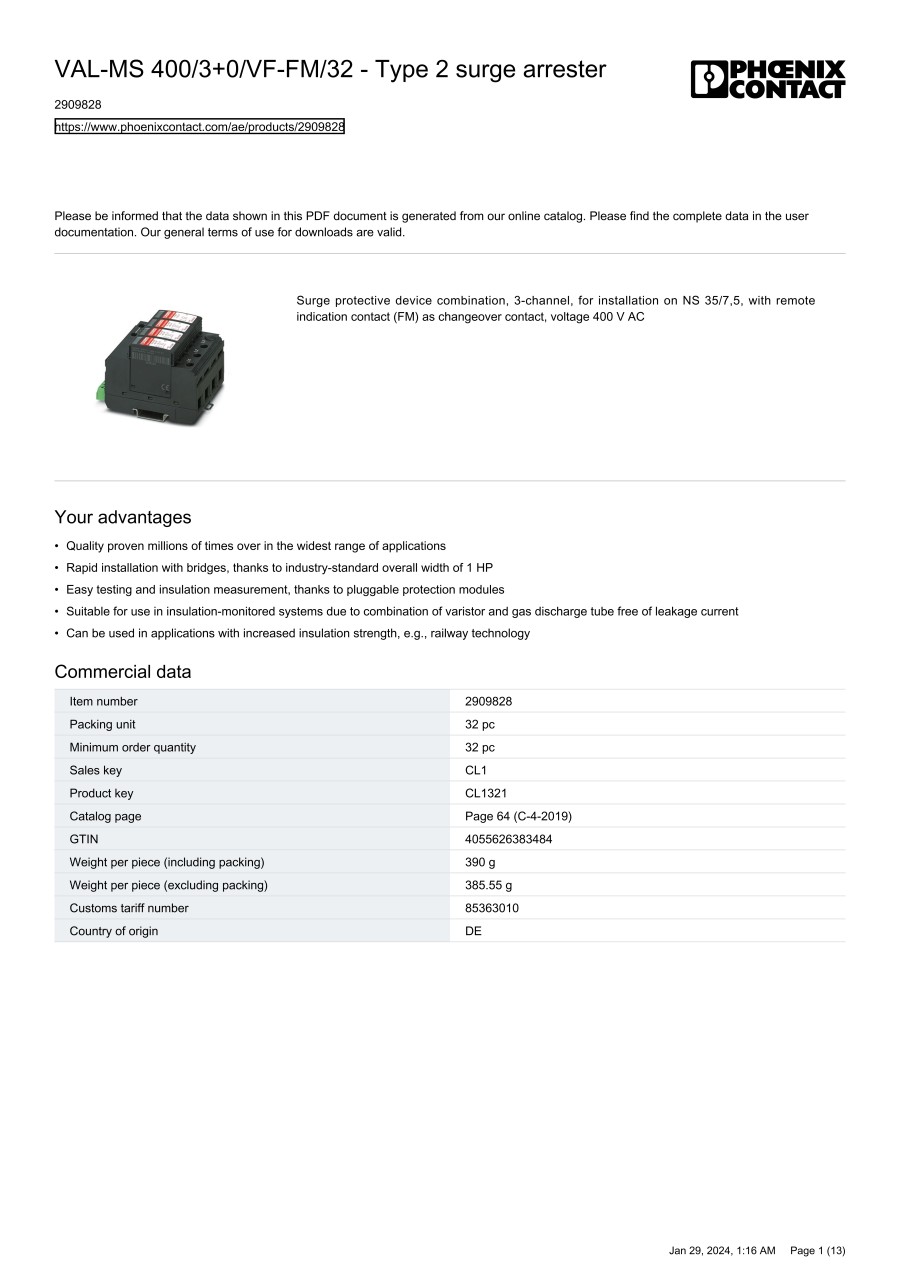

Type 2 surge protection device, Surge voltage arrester, VAL-MS
[Specifications]
・Mounting method: DIN rail (top hat rail) 35 mm
・Construction size: 4 modular spacing
[Features]
・Easy testing and insulation measurement, thanks to pluggable protection modules
・Suitable for use in insulation-monitored systems due to combination of varistor and gas discharge tube free of leakage current
・Can be used in applications with increased insulation strength, e.g., railway technology
・Mounting method: DIN rail (top hat rail) 35 mm
・Construction size: 4 modular spacing
[Features]
・Easy testing and insulation measurement, thanks to pluggable protection modules
・Suitable for use in insulation-monitored systems due to combination of varistor and gas discharge tube free of leakage current
・Can be used in applications with increased insulation strength, e.g., railway technology
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Basic information
| Mounting method | DIN rail (top hat rail) 35 mm | With remote signalling contact | true | Number of conductors (without earthing) | - |
|---|---|---|---|---|---|
| Construction size | 4 modular spacing | Voltage protection level(kV) | 3.5 | Max. continuous voltage AC(V) | 440 |
| Nominal discharge surge current (8/20)(kA) | 20 | Nominal voltage AC(V) | 400 | Nominal voltage DC(V) | - |
| Category type 2 | true | Voltage protection level L-N(kV) | - | Signalling at the device | Optic |
| Max. continuous voltage DC(V) | - | Degree of protection (IP) | - | Max. PV-voltage(V) | - |
| Voltage protection level N-PE(kV) | - | Integrated backup fuse | false | Max. conductor cross section solid (solid, stranded)(mm²) | 35 |
| Max. conductor cross section flexible (fine-strand)(mm²) | 25 | System configuration DC | - | System configuration IT | - |
| System configuration TN | - | System configuration TN-C | - | System configuration TN-S | - |
| System configuration TT | - | System configuration other | - | System configuration TN-C-S | - |
| Max. discharge surge current (8/20)(kA) | - | Short-circuit breaking capacity (Isccr)(kA) | - |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
