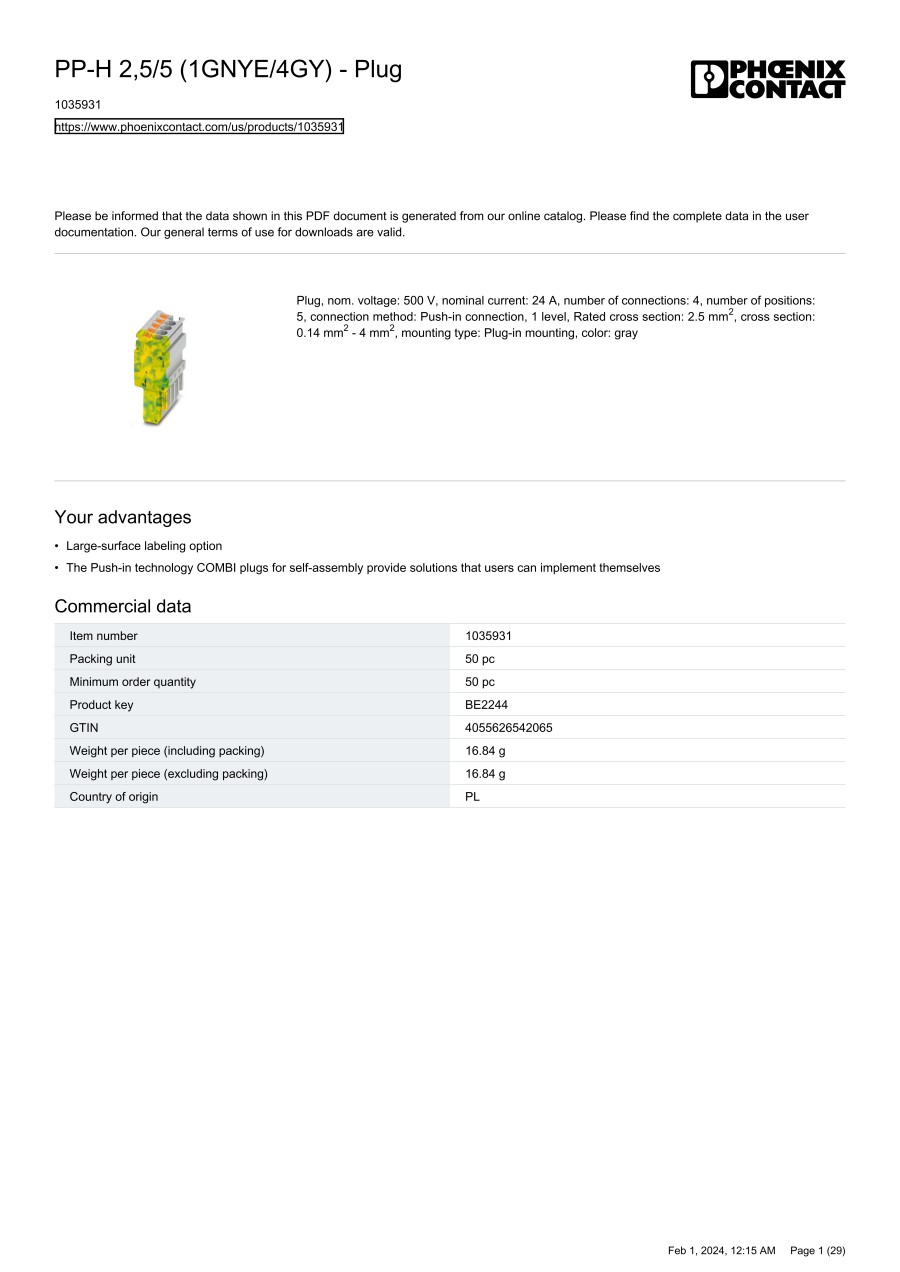

Plug, PP-H
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Basic information
| Model | - | Rated voltage(V) | 500 | Type of electric connection | Spring clamp connection |
|---|---|---|---|---|---|
| Tackable | true | Total number of poles (without ground contact) | 4 | Connectable conductor cross section solid-core(mm²) | 0.14|4 |
| Connectable conductor cross section fine-strand with cable end sleeve(mm²) | 0.14|2.5 | Connectable conductor cross section fine-strand without cable end sleeve(mm²) | 0.14|2.5 | Connectable conductor cross section multi-wired(mm²) | 0.14|2.5 |
| Connectable conductor cross section(mm²) | 0.14|4 | Rated current In(A) | 24 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
