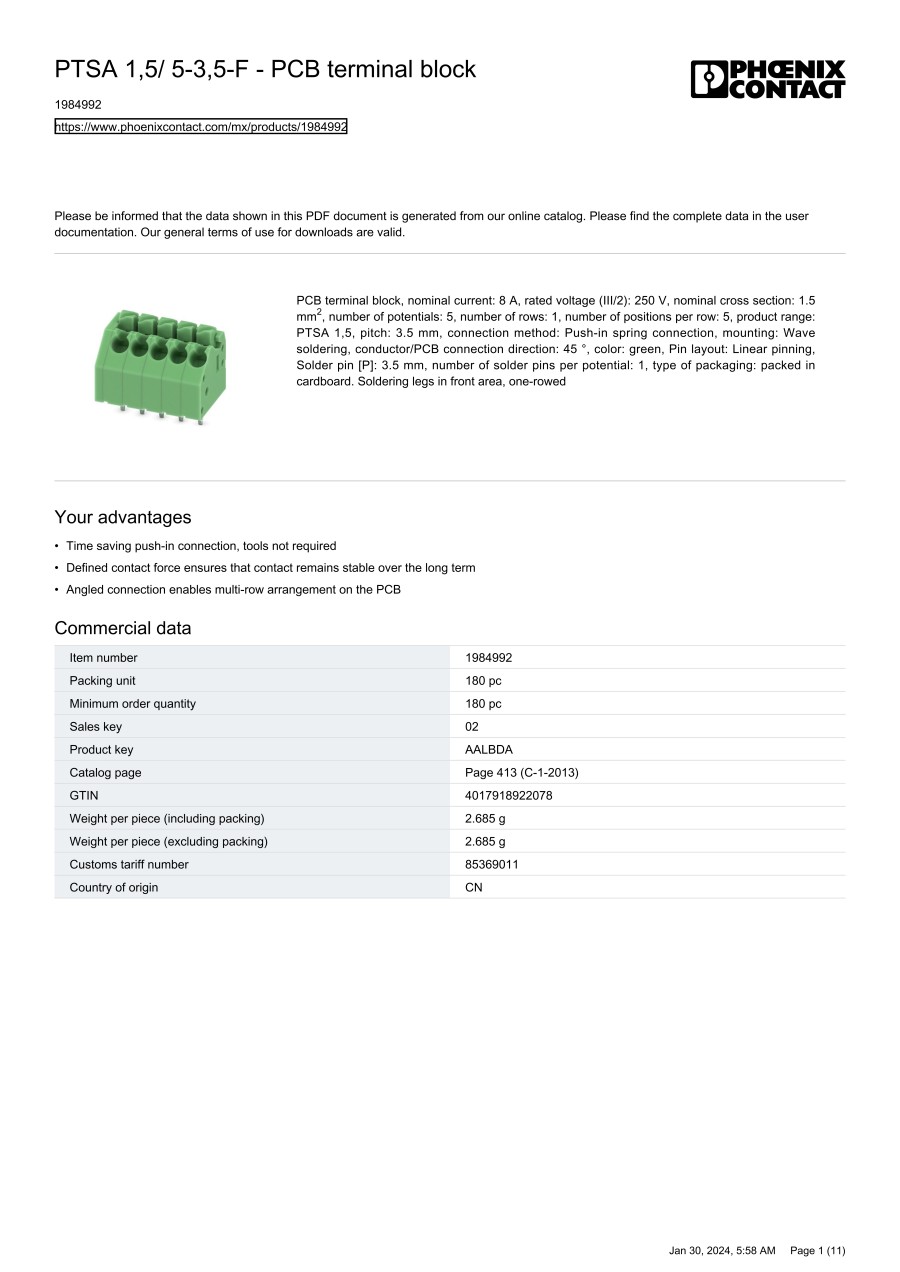

PCB terminal block, PTSA

Basic Attributes

• Height(mm)

  • 16.6
  • 16.7

  Clear

• Rated voltage(V)

  • 250
  • 400

  Clear

• Operation temperature(°C)

  • -40|85
  • -40|100

  Clear

• Inflammability class of insulation material acc. with UL94

  • V0
  • -

  Clear

• Rated surge voltage(kV)

  • 2.5
  • 4

  Clear

• Length pin(mm)

  • 3.5
  • 3.6

  Clear

• Modular spacing connections(mm)

  • 2.5
  • 3.5

  Clear

• Connectable conductor cross section solid-core(mm²)

  • 0.14|0.5
  • 0.2|1.5

  Clear

• Connectable conductor cross section fine-strand with cable end sleeve(mm²)

  • 0.25|1
  • 0.5|0.5

  Clear

• Connectable conductor cross section fine-strand without cable end sleeve(mm²)

  • 0.2|0.2
  • 0.2|1

  Clear

• Connectable conductor cross section multi-wired(mm²)

  • 0.2|0.5
  • 0.2|1.5

  Clear

• Rated current In(A)

  • 2
  • 8

  Clear

• Number of electrical connections

  • 2
  • 5
  • 6
  • 7
  • 9
  • 11
  • 13
  • 14
  • 15
  • 17
  • 18
  • 19
  • 20
  • 21
  • 22
  • 23
  • 24

  Clear

• Type

  Clear
