Configure

Rated voltage(V)
- 1000
- -
Operation temperature(°C)
- -40|100
- -|-
Rated surge voltage(kV)
- 8
- -
Material of contact surface
- Silver
- Tin
Over voltage category
- -
- III
Modular spacing connections(mm)
- 7.62
- 10.16
Modular spacing contacts(mm)
- 7.62
- 10.16
Connectable conductor cross section solid-core(mm²)
Connectable conductor cross section fine-strand with cable end sleeve(mm²)
Connectable conductor cross section fine-strand without cable end sleeve(mm²)
Connectable conductor cross section multi-wired(mm²)
- 0.2|2.5
- -|-
Degree of protection (IP), mounted
- -
- Other
Angle contact/conductor connection
- 180° (horizontal)
- -
Rated current In(A)
- 20
- 41
- 76
Est. shipping days
- All
- Within 28 working days
- Within 33 working days
- Within 40 working days
- Within 47 working days

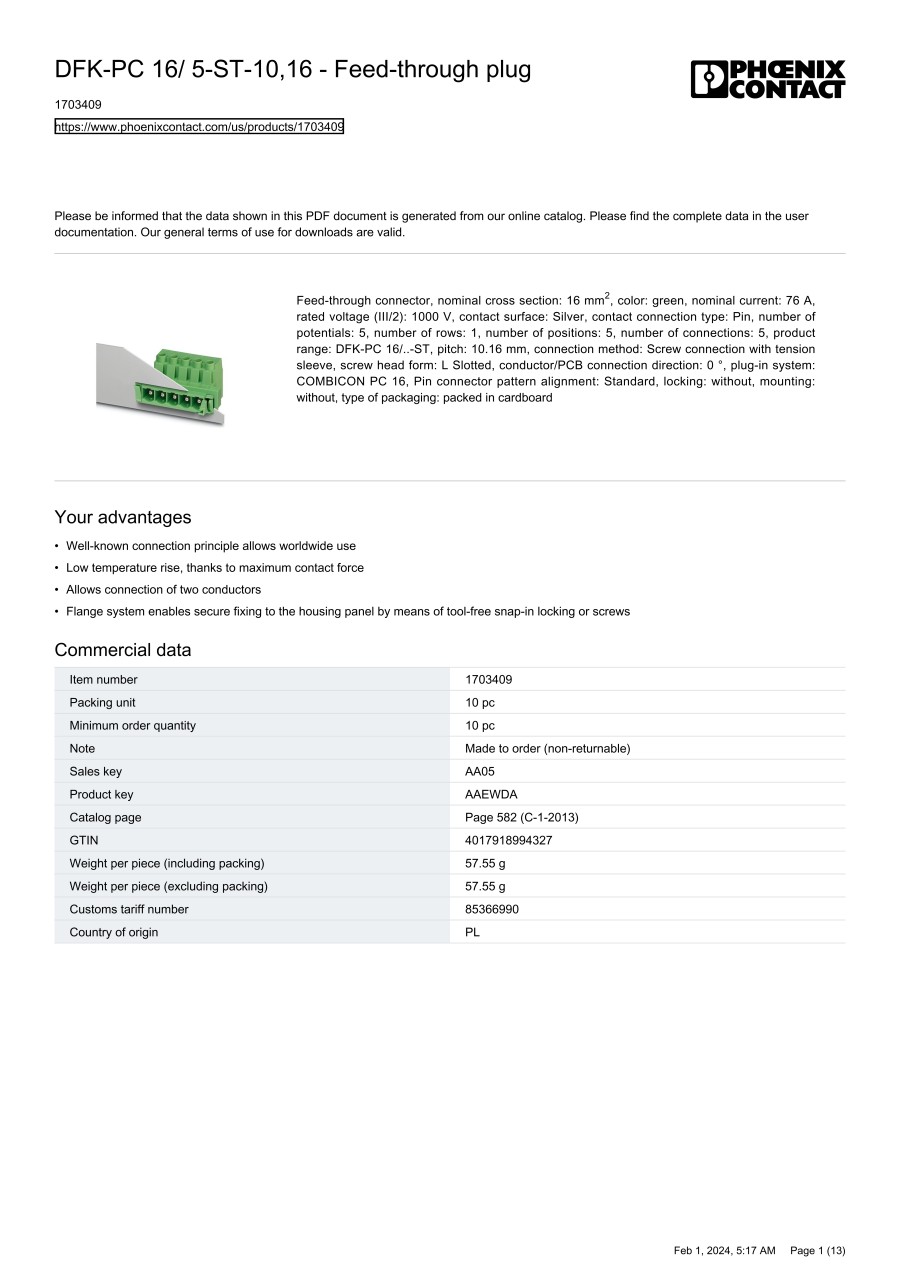

Feed-through connector, DFK-PC

Catalog

Part number:

Still undefined. 30 possible part numbers found.

Part number list
Catalog

Part number list

Number of items

Part number

Rated voltage

(V)

Operation temperature

(°C)

Rated surge voltage

(kV)

Material of contact surface

Over voltage category

Modular spacing connections

(mm)

Modular spacing contacts

(mm)

Connectable conductor cross section solid-core

(mm²)

Connectable conductor cross section fine-strand with cable end sleeve

(mm²)

Connectable conductor cross section fine-strand without cable end sleeve

(mm²)

Connectable conductor cross section multi-wired

(mm²)

Degree of protection (IP), mounted

Angle contact/conductor connection

Rated current In

(A)

Minimum order quantity

1000	-40\|100	8	Silver	-	10.16	10.16	0.75\|16	0.5\|16	0.75\|16	-\|-	Other	-	76	20 pieces
1000	-40\|100	8	Silver	-	10.16	10.16	0.75\|16	0.5\|16	0.75\|16	-\|-	Other	-	76	10 pieces
1000	-40\|100	8	Silver	-	10.16	10.16	0.75\|16	0.5\|16	0.75\|16	-\|-	Other	-	76	10 pieces
1000	-40\|100	8	Silver	-	10.16	10.16	0.75\|16	0.5\|16	0.75\|16	-\|-	Other	-	76	10 pieces
1000	-40\|100	8	Silver	-	10.16	10.16	0.75\|16	0.5\|16	0.75\|16	-\|-	Other	-	76	10 pieces
1000	-40\|100	8	Silver	-	10.16	10.16	0.75\|16	0.5\|16	0.75\|16	-\|-	Other	-	76	10 pieces
1000	-40\|100	8	Silver	-	10.16	10.16	0.75\|16	0.5\|16	0.75\|16	-\|-	Other	-	76	10 pieces
1000	-40\|100	8	Silver	-	10.16	10.16	0.75\|16	0.5\|16	0.75\|16	-\|-	Other	-	76	10 pieces
1000	-\|-	8	Silver	-	10.16	10.16	0.75\|16	0.5\|16	0.75\|16	-\|-	-	-	76	30 pieces
1000	-\|-	8	Silver	-	10.16	10.16	0.75\|16	0.5\|16	0.75\|16	-\|-	-	-	76	20 pieces
1000	-\|-	8	Silver	-	10.16	10.16	0.75\|16	0.5\|16	0.75\|16	-\|-	-	-	76	20 pieces
1000	-\|-	8	Silver	-	10.16	10.16	0.75\|16	0.5\|16	0.75\|16	-\|-	-	-	76	10 pieces
1000	-\|-	8	Silver	-	10.16	10.16	0.75\|16	0.5\|16	0.75\|16	-\|-	-	-	76	10 pieces
1000	-\|-	8	Silver	-	10.16	10.16	0.75\|16	0.5\|16	0.75\|16	-\|-	-	-	76	10 pieces
1000	-\|-	8	Silver	-	10.16	10.16	0.75\|16	0.5\|16	0.75\|16	-\|-	-	-	76	10 pieces
1000	-\|-	8	Silver	-	10.16	10.16	0.75\|16	0.5\|16	0.75\|16	-\|-	-	-	76	10 pieces
1000	-40\|100	8	Tin	III	7.62	7.62	0.2\|10	0.25\|6	0.2\|6	0.2\|2.5	Other	180° (horizontal)	41	20 pieces
1000	-40\|100	8	Tin	III	7.62	7.62	0.2\|10	0.25\|6	0.2\|6	0.2\|2.5	Other	180° (horizontal)	41	10 pieces
1000	-40\|100	8	Tin	III	7.62	7.62	0.2\|10	0.25\|6	0.2\|6	0.2\|2.5	Other	180° (horizontal)	41	10 pieces
1000	-40\|100	8	Tin	III	7.62	7.62	0.2\|10	0.25\|6	0.2\|6	0.2\|2.5	Other	180° (horizontal)	41	10 pieces
1000	-40\|100	8	Tin	III	7.62	7.62	0.2\|10	0.25\|6	0.2\|6	0.2\|2.5	-	180° (horizontal)	41	30 pieces
1000	-40\|100	8	Tin	III	7.62	7.62	0.2\|10	0.25\|6	0.2\|6	0.2\|2.5	-	180° (horizontal)	41	20 pieces
1000	-40\|100	8	Tin	III	7.62	7.62	0.2\|10	0.25\|6	0.2\|6	0.2\|2.5	-	180° (horizontal)	41	20 pieces
1000	-40\|100	8	Tin	III	7.62	7.62	0.2\|10	0.25\|6	0.2\|6	0.2\|2.5	-	180° (horizontal)	41	20 pieces
1000	-40\|100	8	Tin	III	7.62	7.62	0.2\|10	0.25\|6	0.2\|6	0.2\|2.5	-	180° (horizontal)	41	10 pieces
1000	-40\|100	8	Tin	III	7.62	7.62	0.2\|10	0.25\|6	0.2\|6	0.2\|2.5	-	180° (horizontal)	41	10 pieces
1000	-40\|100	8	Tin	III	7.62	7.62	0.2\|10	0.25\|6	0.2\|6	0.2\|2.5	-	180° (horizontal)	41	10 pieces
1000	-40\|100	8	Tin	III	7.62	7.62	0.2\|10	0.25\|6	0.2\|6	0.2\|2.5	-	180° (horizontal)	41	10 pieces
1000	-40\|100	8	Tin	III	7.62	7.62	0.2\|10	0.25\|6	0.2\|6	0.2\|2.5	-	180° (horizontal)	41	10 pieces
-	-40\|100	-	Tin	-	7.62	7.62	0.2\|4	0.25\|4	0.2\|4	-\|-	Other	-	20	50 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

16.34 € ( 19.44 € )	33 working days
19.61 € ( 23.34 € )	33 working days
22.88 € ( 27.23 € )	28 working days
26.14 € ( 31.11 € )	33 working days
29.41 € ( 35.00 € )	33 working days
23.77 € ( 28.29 € )	33 working days
27.04 € ( 32.18 € )	33 working days
30.31 € ( 36.07 € )	33 working days
8.64 € ( 10.28 € )	33 working days
11.90 € ( 14.16 € )	33 working days
15.17 € ( 18.05 € )	33 working days
18.44 € ( 21.94 € )	33 working days
21.71 € ( 25.83 € )	28 working days
24.98 € ( 29.73 € )	33 working days
28.24 € ( 33.61 € )	28 working days
31.51 € ( 37.50 € )	28 working days
15.56 € ( 18.52 € )	47 working days
20.01 € ( 23.81 € )	47 working days
24.46 € ( 29.11 € )	28 working days
26.68 € ( 31.75 € )	47 working days
6.55 € ( 7.79 € )	47 working days
13.22 € ( 15.73 € )	47 working days
15.44 € ( 18.37 € )	47 working days
17.66 € ( 21.02 € )	47 working days
19.89 € ( 23.67 € )	47 working days
22.11 € ( 26.31 € )	28 working days
24.34 € ( 28.96 € )	47 working days
26.56 € ( 31.61 € )	28 working days
28.78 € ( 34.25 € )	28 working days
16.68 € ( 19.85 € )	40 working days
