Oil Hole Collet
- Promotional pricing ends 30/11/2024

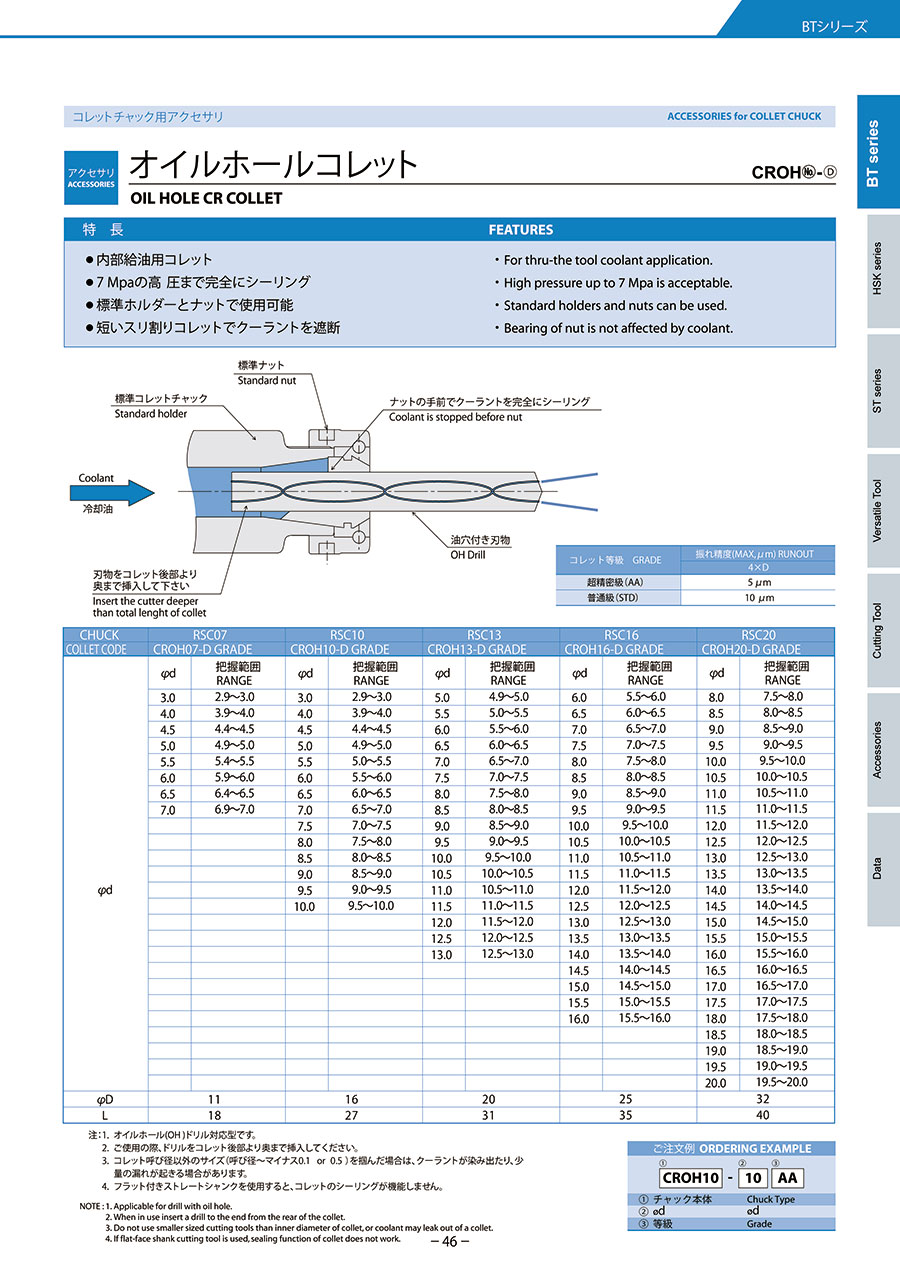

· Collet for internal lubrication. Complete sealing up to a high pressure of 7 MPa. Usable with the standard holder and nut. Short slotting collet used to block off coolant
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| CROH10-3AA |
| CROH16-6AA |
| CROH16-8AA |
| CROH16-10AA |
| CROH16-12AA |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Tool shank size | Main Body Name | A (mm) | B (mm) | D (mm) | |
|---|---|---|---|---|---|---|---|---|---|
98.73 € 69.11 € | 1 |
Same day
Stock | 2.9～3.0 | CTM10 | 17 | 27 | 3 | ||
106.35 € | 1 | 7 Days | 5.5–6.0 | CTM16 | 26 | 35 | 6 | ||
106.35 € | 1 | 7 Days | 7.5～8.0 | CTM16 | 26 | 35 | 8 | ||
106.35 € | 1 | 7 Days | 9.5 to 10.0 | CTM16 | 26 | 35 | 10 | ||
106.35 € | 1 | 7 Days | 11.5～12.0 | CTM16 | 26 | 35 | 12 |
Loading...
Basic information
| Product Category | Attachments/Accessories | Tool Type | End mill / Drill / Reamer / Tap | Coolant System | Center Through (Blade Through) |
|---|---|---|---|---|---|
| Nominal Type Number | CROH |
Configure
Stock
-
- Show only stock items
Basic Attributes
-
Tool shank size
- 2.9～3.0
- 5.5–6.0
- 7.5～8.0
- 9.5 to 10.0
- 11.5～12.0
-
Main Body Name
- CTM10
- CTM16
-
A(mm)
- 17
- 26
-
B(mm)
- 27
- 35
-
D(mm)
- 3
- 6
- 8
- 10
- 12
-
Type
- CROH
Filter by standard shipping days
-
- All
- Same day
- 7 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
