NABEYA

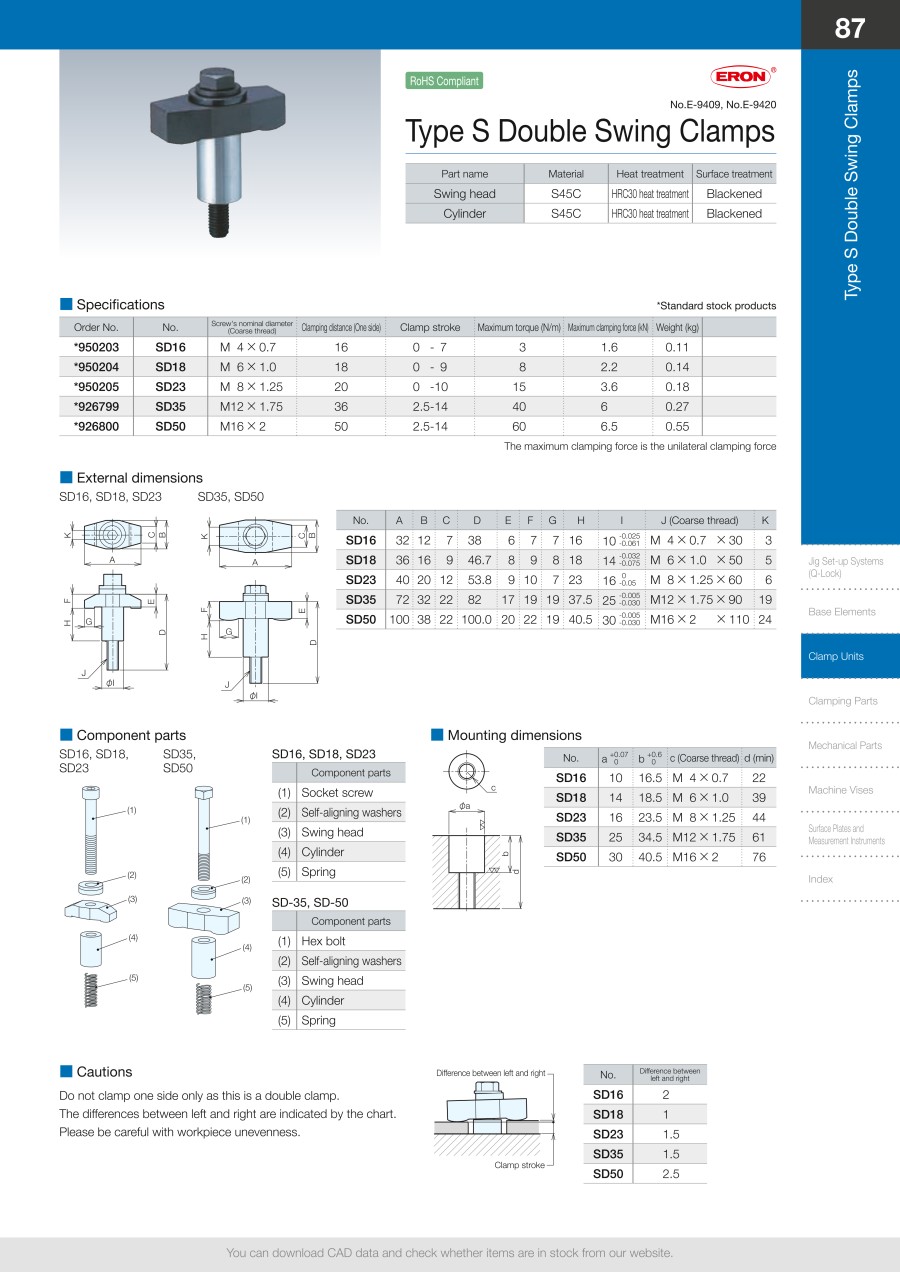

Double Swing Clamp S Type

Double Swing Clamp S Type

Part number:

Still undefined. 5 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    SD-16
    SD-18
    SD-23
    SD-35
    SD-50

    A

    (mm)

    B

    (mm)

    C

    (mm)

    D

    (mm)

    E

    (mm)

    F

    (mm)

    G

    (mm)

    H

    (mm)

    I

    (mm)

    J

    (mm)

    K

    (mm)

    I Allowable Tolerance

    (mm)

    Mass

    (kg)

    		Minimum order quantity
    32
    12
    7
    38
    6
    7
    7
    16
    10
    M4×0.7×30
    3
    -0.025～-0.061
    0.11
    1 pieces
    36
    16
    9
    46.7
    8
    9
    8
    18
    14
    M6×1×50
    5
    -0.032～-0.075
    0.14
    1 pieces
    40
    20
    12
    53.8
    9
    10
    7
    23
    16
    M8×1.25×60
    6
    0～-0.05
    0.18
    1 pieces
    72
    32
    22
    82
    17
    19
    19
    37.5
    25
    M12×1.75×90
    19
    -0.005～-0.030
    0.27
    1 pieces
    100
    38
    22
    100
    20
    22
    19
    40.5
    30
    M16×2×110
    24
    -0.005～-0.030
    0.55
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    81.28 €
    ( 96.72 € )
    6 working days
    86.09 €
    ( 102.45 € )
    8 working days
    90.96 €
    ( 108.24 € )
    8 working days
    112.07 €
    ( 133.36 € )
    8 working days
    145.43 €
    ( 173.06 € )
    6 working days
  • 1

    • More Information

    Basic information

    This product can clamp 2 workpieces at the same time. Due to its compact structure (cylinder diameter 10 mm to 30 mm), it can be used in small spaces. The freely rotating structure saves time when loading and unloading the workpieces.
