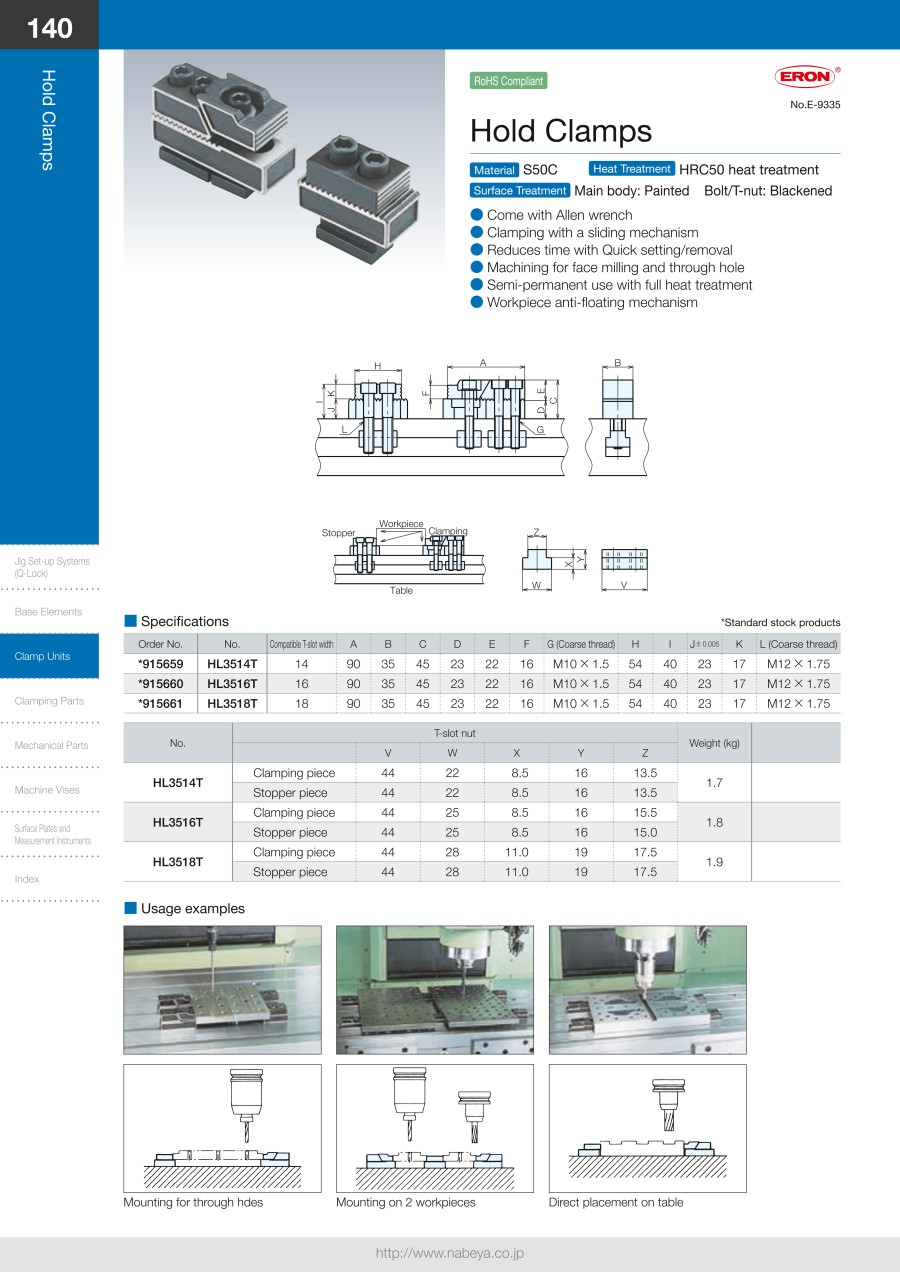

Hold Clamp Set
Includes a hex wrench. Completely tightened with a sliding mechanism. Saves time thanks to its "one point" fitting and removal function. For machining the whole top surface of the workpiece and through-hole machining. Fully heat-treated for semi-permanent use. A workpiece rising prevention mechanism type.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Loading...
Basic information
| A(mm) | 90 | B(mm) | 35 | C(mm) | 45 |
|---|---|---|---|---|---|
| D(mm) | 23 | E(mm) | 22 | F(mm) | 16 |
| G(mm) | M10 | H(mm) | 54 | I(mm) | 40 |
| J(mm) | 23 | K(mm) | 17 | L(mm) | M12 |
| V(mm) | 44 | Material | S50C | Heat Treatment | Hardening HRC50 |
| Surface Treatment | Main Body Painted, Bolt, T-nut: Black Oxide Finish |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
