Lock-tight 5-Axis Machine Vise

Lock-tight 5-Axis Machine Vise

Click on this image to zoom in.

Click on this image to zoom in.

NABEYA

NABEYA

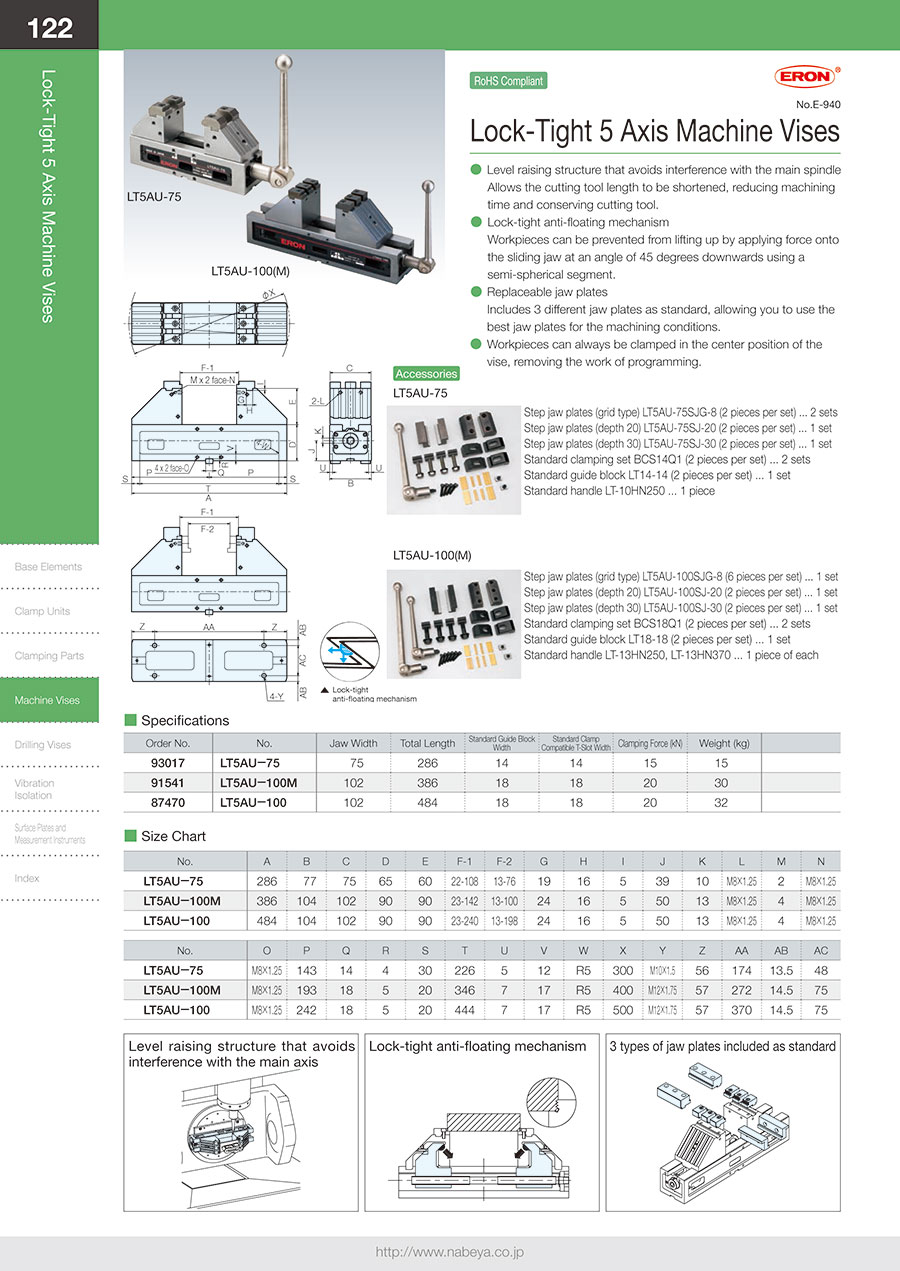

Raised structure that avoids the interference of the machine spindle: The length of the cutter can be shortened to reduce processing time and labor. Lock-tight lift prevention mechanism: A hemispherical segment is used to apply force on the movable part in a downward sloping direction at 45 degrees in order to prevent the workpiece from rising up. Socket replacement type: Three types of socket are included as standard and can be selected according to the machining conditions.
