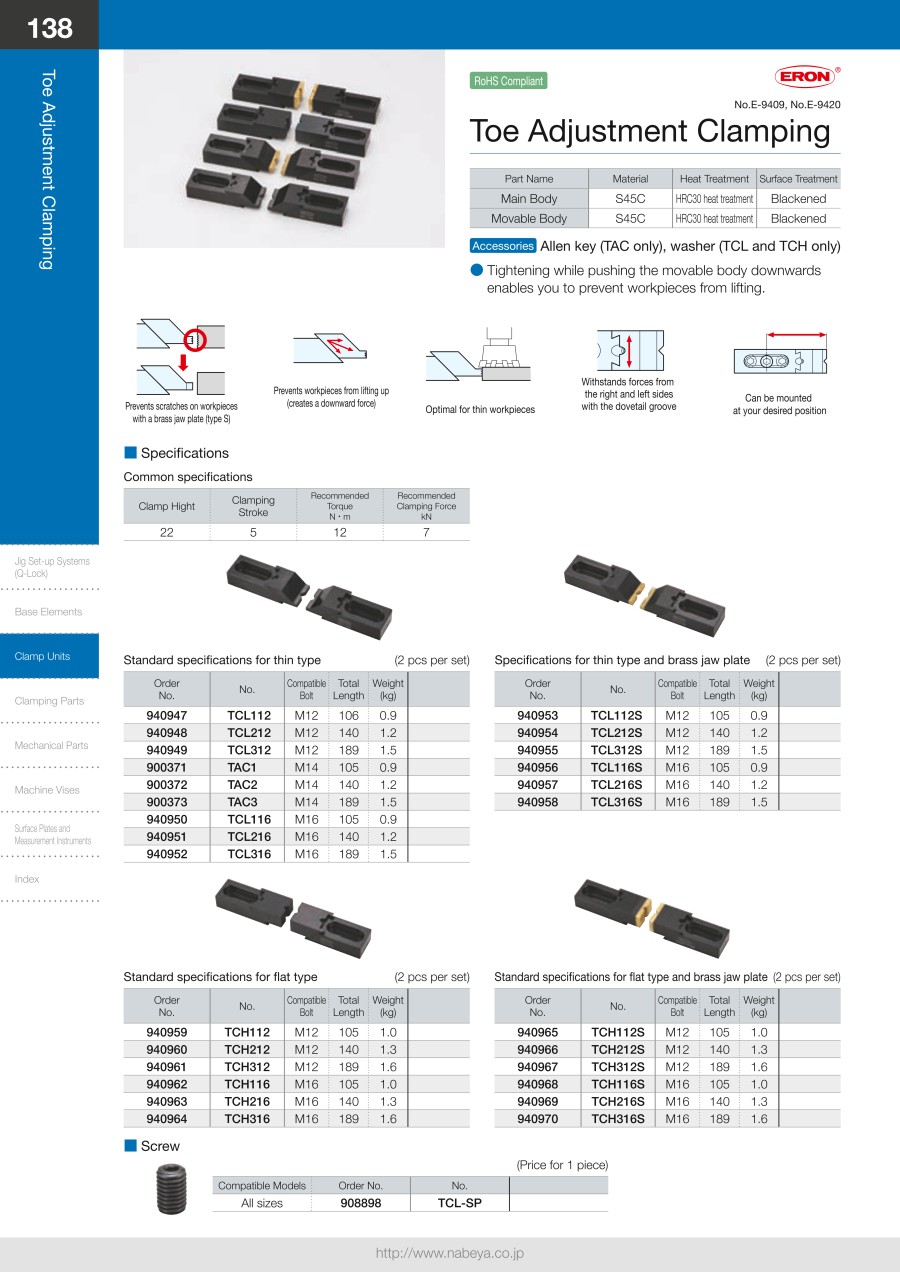

Toe Adjusting Clamp
[Features]
· Tightening is performed while pressing the movable part downward, preventing the workpiece from lifting.
· Lifting prevention (generates force in the downward direction).
· Ideal for thin workpieces.
· Dovetail groove can withstand lateral force.
· Free Mounting Position
· Tightening is performed while pressing the movable part downward, preventing the workpiece from lifting.
· Lifting prevention (generates force in the downward direction).
· Ideal for thin workpieces.
· Dovetail groove can withstand lateral force.
· Free Mounting Position
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Loading...
Basic information
| Material | S45C | Heat Treatment | Hardening | Surface Treatment | Black oxide finish |
|---|---|---|---|---|---|
| Applicable Bolt | M14 | Tightening Force(kN) | 7 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
