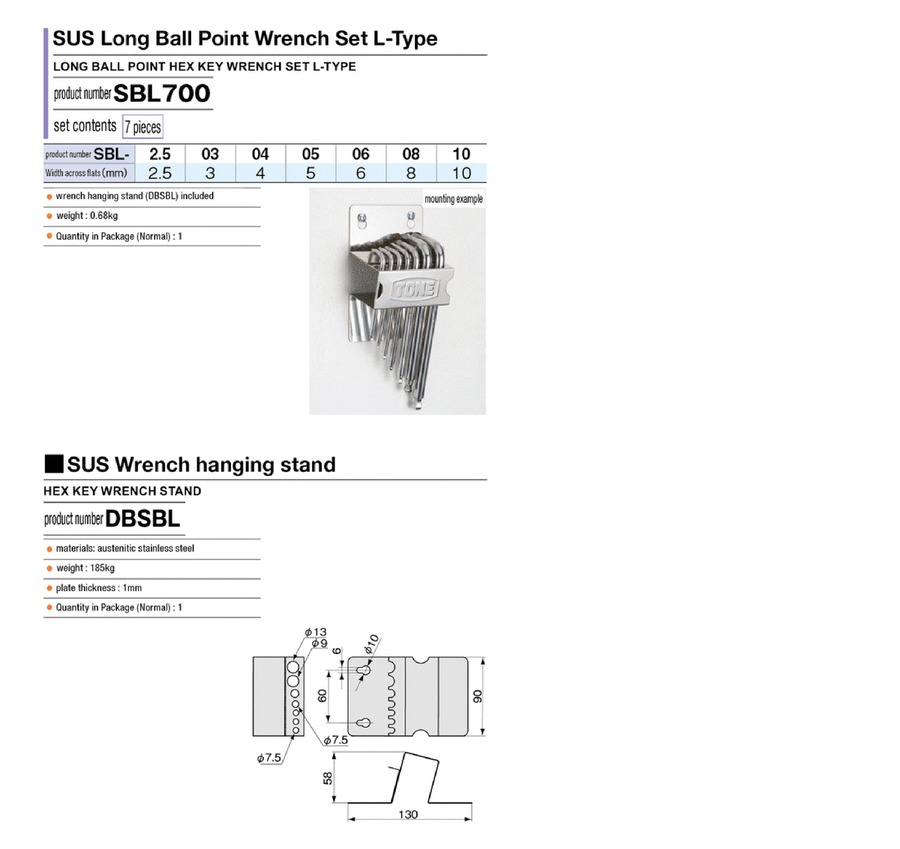

Long Ball Point L-Type Wrench Set SBL700
Click on this image to zoom in.
Click on this image to zoom in.
Stainless steel wrench stand for convenient storage. Layout allows to identify each size at a glance.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
SBL700
Basic information
| Type | Hex L-shape wrench | Tip Type | Ballpoint | Width across flat dimension(mm) | 10 / 3 / 4 / 5 / 6 / 8 / 2.5 |
|---|---|---|---|---|---|
| Single Product/Set Classification | Set Product | Overall length (L dimension)(mm) | 84 / 95 / 107 / 120 / 135 / 150 / 170 | Hex bar wrench underneck length (H dimension) L-shape only(mm) | 18 / 20 / 23 / 28 / 32 / 36 / 40 |
| Material | Stainless Steel | Set Content | 2.5、3、4、5、6、8、10 | Weight(g) | 680 |
This page is Long Ball Point L-Type Wrench Set SBL700, part number SBL700.
You can find the detail information about specifications and dimensions on part number SBL700.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
