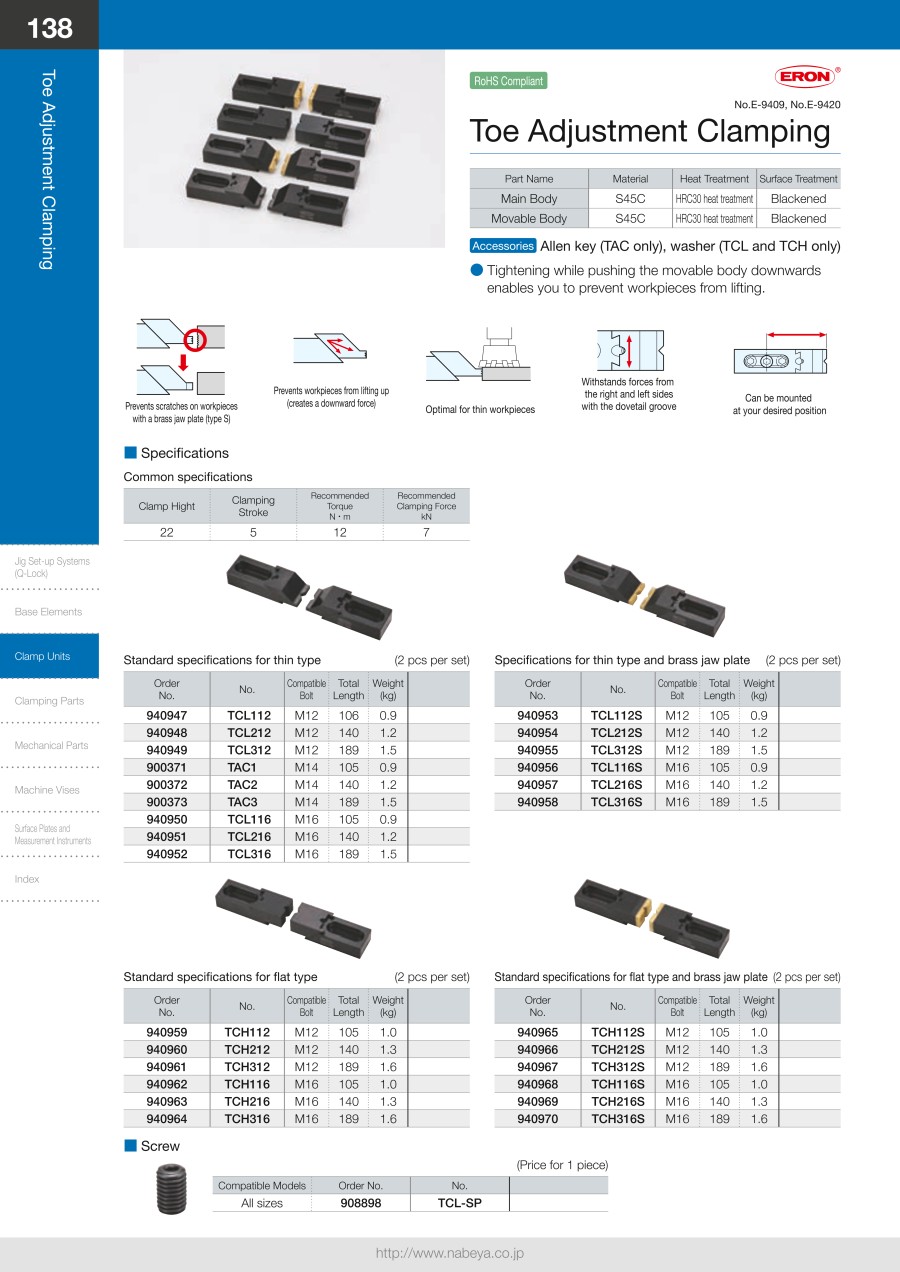

Toe Adjusting Clamp TCL Type
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| TCL-112 |
| TCL-112S |
| TCL-116 |
| TCL-116S |
| TCL-212 |
| TCL-212S |
| TCL-216 |
| TCL-216S |
| TCL-312 |
| TCL-312S |
| TCL-316 |
| TCL-316S |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | Mass (kg) | Material | Applicable Bolt | Mass (g) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
311.67 € | 1 | 7 Days | 105 | 31 | 14 | 14 | 19 | 0.9 | S45C | M12 | 900 | ||
340.86 € | 1 | 7 Days | 105 | 31 | 14 | 14 | 19 | 0.9 | Brass | M12 | 900 | ||
370.98 € | 1 | 7 Days | 105 | 27 | 15.5 | 17 | 25 | 0.9 | S45C | M16 | 900 | ||
433.13 € | 1 | 7 Days | 105 | 27 | 15.5 | 17 | 25 | 0.9 | Brass | M16 | 900 | ||
367.22 € | 1 | 7 Days | 140 | 49 | 24 | 14 | 19 | 1.2 | S45C | M12 | 1200 | ||
367.22 € | 1 | 7 Days | 140 | 49 | 24 | 14 | 19 | 1.2 | Brass | M12 | 1200 | ||
437.83 € | 1 | 7 Days | 140 | 46 | 25 | 17 | 25 | 1.2 | S45C | M16 | 1200 | ||
460.44 € | 1 | 7 Days | 140 | 46 | 25 | 17 | 25 | 1.2 | Brass | M16 | 1200 | ||
489.63 € | 1 | 7 Days | 189 | 74 | 37 | 14 | 19 | 1.5 | S45C | M12 | 1500 | ||
424.66 € | 1 | 7 Days | 189 | 74 | 37 | 14 | 19 | 1.5 | Brass | M12 | 1500 | ||
588.50 € | 1 | 7 Days | 189 | 72 | 38 | 17 | 25 | 1.5 | S45C | M16 | 1500 | ||
499.04 € | 1 | 7 Days | 189 | 72 | 38 | 17 | 25 | 1.5 | Brass | M16 | 1500 |
Loading...
Basic information
| F(mm) | 13 | Heat Treatment | Hardening | Surface Treatment | Black oxide finish |
|---|---|---|---|---|---|
| Tightening Force(kN) | 7 |
Configure
Basic Attributes
-
A(mm)
- 105
- 140
- 189
-
B(mm)
- 27
- 31
- 46
- 49
- 72
- 74
-
C(mm)
- 14
- 15.5
- 24
- 25
- 37
- 38
-
D(mm)
- 14
- 17
-
E(mm)
- 19
- 25
-
Mass(kg)
- 0.9
- 1.2
- 1.5
-
Material
- S45C
- Brass
-
Applicable Bolt
- M12
- M16
-
Mass(g)
- 900
- 1200
- 1500
-
Type
- TCL
Filter by standard shipping days
-
- All
- 7 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
