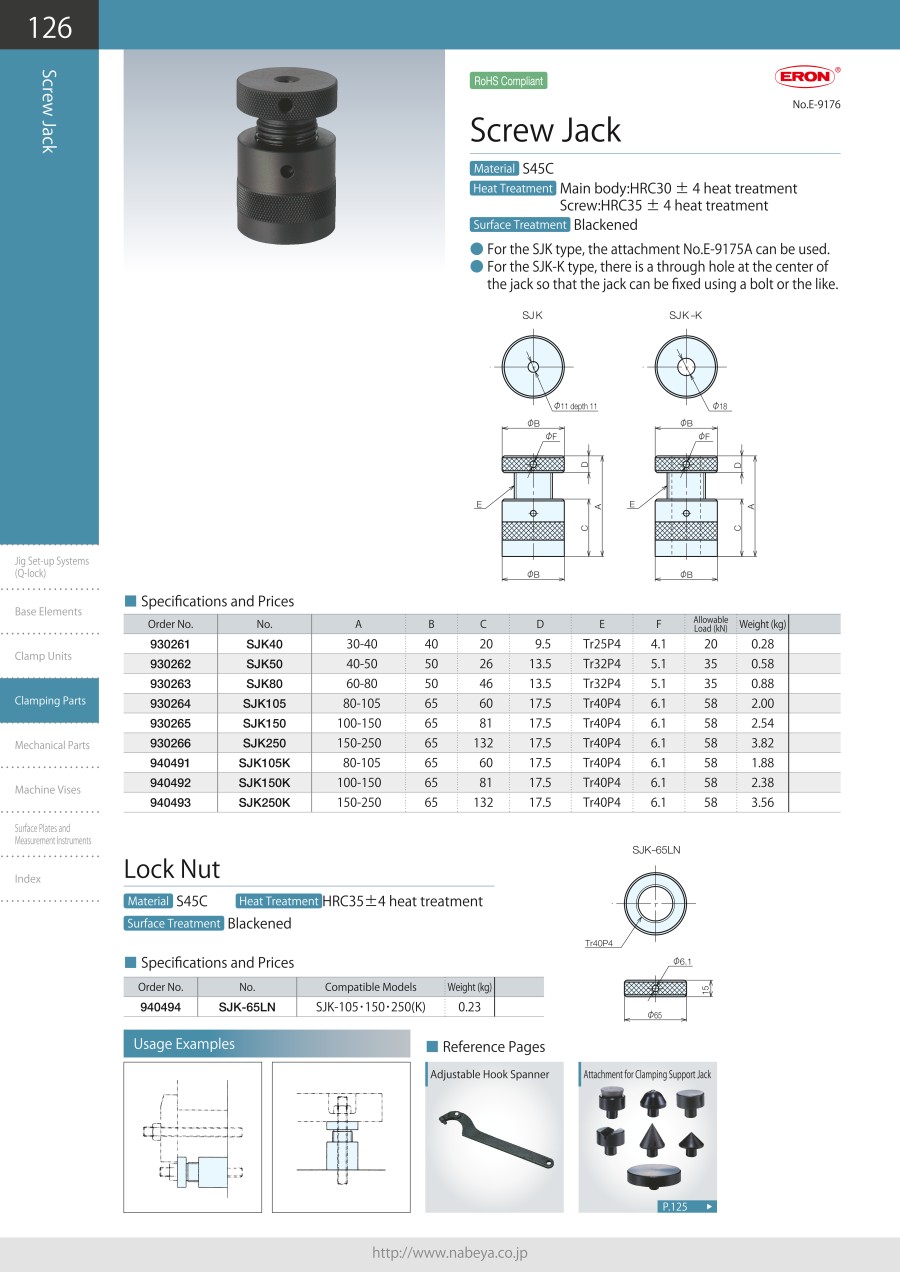

Screw Jack (Fixed) Type

Screw Jack (Fixed) Type

Attachment for No. E-175A can be used for SJK type. SJK-K type is provided with through holes in the center of the jack, making it possible to fix the jacks using bolts, etc.

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Part Number
SJK-105K
SJK-150K
SJK-250K
Part NumberStandard Unit PriceVolume DiscountShipping Days?A
(mm)
C
(mm)
Mass
(kg)
Heat Treatment Surface Treatment

52.66 €

4 Days 80 - 105601.88HardeningBlack oxide finish

78.67 €

6 Days 100 - 150812.38HardeningBlack oxide finish

112.89 €

4 Days 150 - 2501323.56HardeningBlack oxide finish

Loading...

  1. 1

Basic information

B(mm) 65 D(mm) 17.5 E(mm) Tr40P4
F(mm) 6.1 Material S45C Load Resistance(kN) 58
