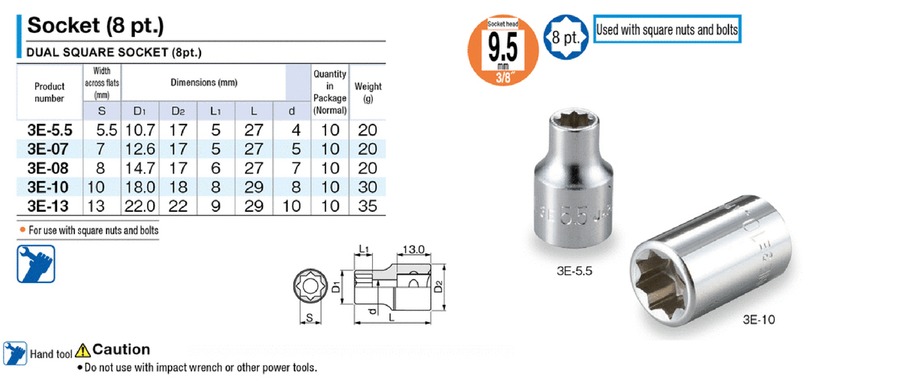

Sockets (8-point) 3E
- Promotional pricing
- Volume Discount
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| 3E-5.5 |
| 3E-10 |
| 3E-13 |
| 3.00E-07 |
| 3.E-08 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Width across flat dimension (S Measurement) | Overall length (L dimension) (mm) | Width across flat part external diameter (measurement D1) (mm) | Maximum Outer Diameter (D1 or D2 Dimensions) (mm) | Width across flat part depth (measurement L1) (mm) | Through Hole I.D. (d Dimension) (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|
9.20 € | 1 | Available | 9 Days | 5.5 | 27 | 10.7 | 17 | 5 | 4 | |
10.21 € | 1 | Available | 5 Days | 10 | 29 | 18 | 18 | 8 | 8 | |
10.99 € | 1 | Available | 9 Days | 13 | 29 | 22 | 22 | 9 | 10 | |
8.70 € 5.05 € | 1 |
Same day
Stock | 7 | 27 | 12.6 | 17 | 6 | 5 | ||
8.70 € | 1 | 10 Days | 8 | 27 | 14.7 | 17 | 6 | 7 |
Loading...
Basic information
| Single Product/Set Classification | Single Item Socket | Application | For handwork | Insertion Angle (Shaft measurement when electric drill) (mm) | 9.5 |
|---|---|---|---|---|---|
| Socket shape | 8 Sq. | Insertion Angle (Shaft measurement when electric drill) (Inch) | 3/8 |
Configure
Stock
-
- Show only stock items
Basic Attributes
-
Width across flat dimension (S Measurement)
-
Overall length (L dimension)(mm)
-
Type
- 3E-5.5-3E-13
Filter by standard shipping days
-
- All
- Same day
- 5 Days or Less
- 9 Days or Less
- 10 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
