X's Mill Geo Long Shank 4GEOLS

X's Mill Geo Long Shank 4GEOLS

NACHI(FUJIKOSHI)

NACHI(FUJIKOSHI)

Can perform high precision machining even during deep carving.

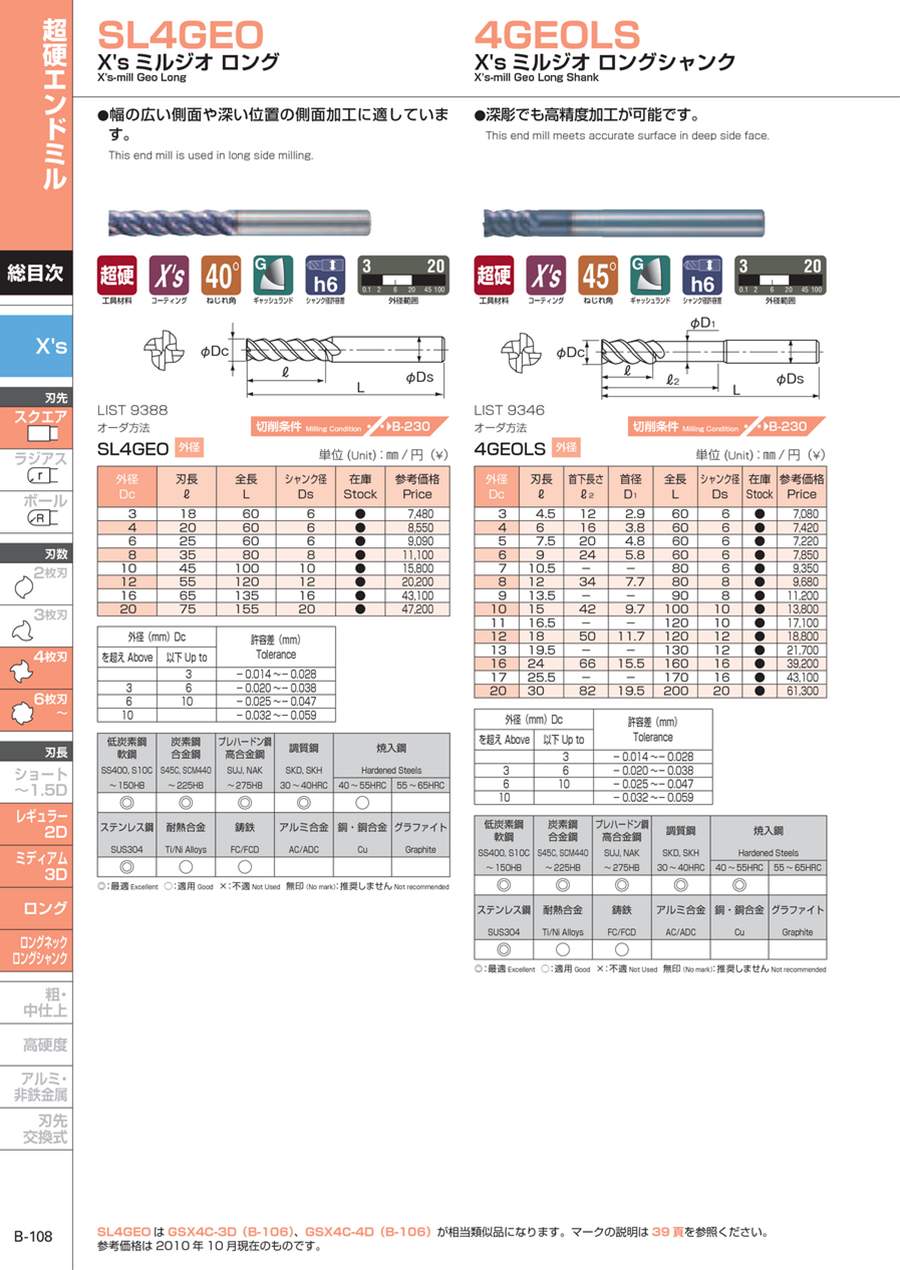

Data sheet

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.


Data to be displayed
30
45
60
  1. 1
Part Number
4GEOLS3
4GEOLS4
4GEOLS5
4GEOLS6
4GEOLS7
4GEOLS8
4GEOLS9
4GEOLS10
4GEOLS11
4GEOLS12
4GEOLS13
4GEOLS16
4GEOLS17
4GEOLS20
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
Blade diameter (D)
(φ) 		Blade length (ℓ)
(mm) 		Shank diameter (d)
(mm) 		Overall Length (L)
(mm) 		Length under neck ℓ2
(mm) 		O.D. Dc
(mm) 		Neck diameter D1
(mm)

77.47 €

1 6 Days 34.56601232.9

81.15 €

1 6 Days 466601643.8

78.98 €

1 6 Days 57.56602054.8

93.14 €

1 6 Days 696602465.8

102.29 €

1 6 Days 710.5680-7-

105.31 €

1 6 Days 8128803487.7

122.36 €

1 6 Days 913.5890-9-

106.21 €

1 6 Days 10151010042109.7

124.81 €

1 9 Days 1116.510120-11-

144.26 €

1 6 Days 121812120501211.7

166.79 €

1 6 Days 1319.512130-13-

301.45 €

1 6 Days 162416160661615.5

331.30 €

1 6 Days 1725.516170-17-

472.08 €

1 6 Days 203020200822019.5

Loading...

  1. 1

Basic information

work material General Steel / Quenched and tempered steel / High Hardness Steel: to HRC55 / Stainless Steel / Cast Iron / Titanium Number of flutes(sheet) 4 Type Square
Coating TiAlN Machining Application Plane / Side / Groove / Inclined Cuts Blade tip shape With Lead
Torsion Angle (θ) High Helix (45˚ to 60˚)

Configure

Clear all

14Suggestion of an applicable part number.

View Part Numbers

Some specification is not specified yet.
The part number is completed.

Basic Attributes

  • Blade diameter (D)(φ)

    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 16
    • 17
    • 20
