NIIGATA SEIKI

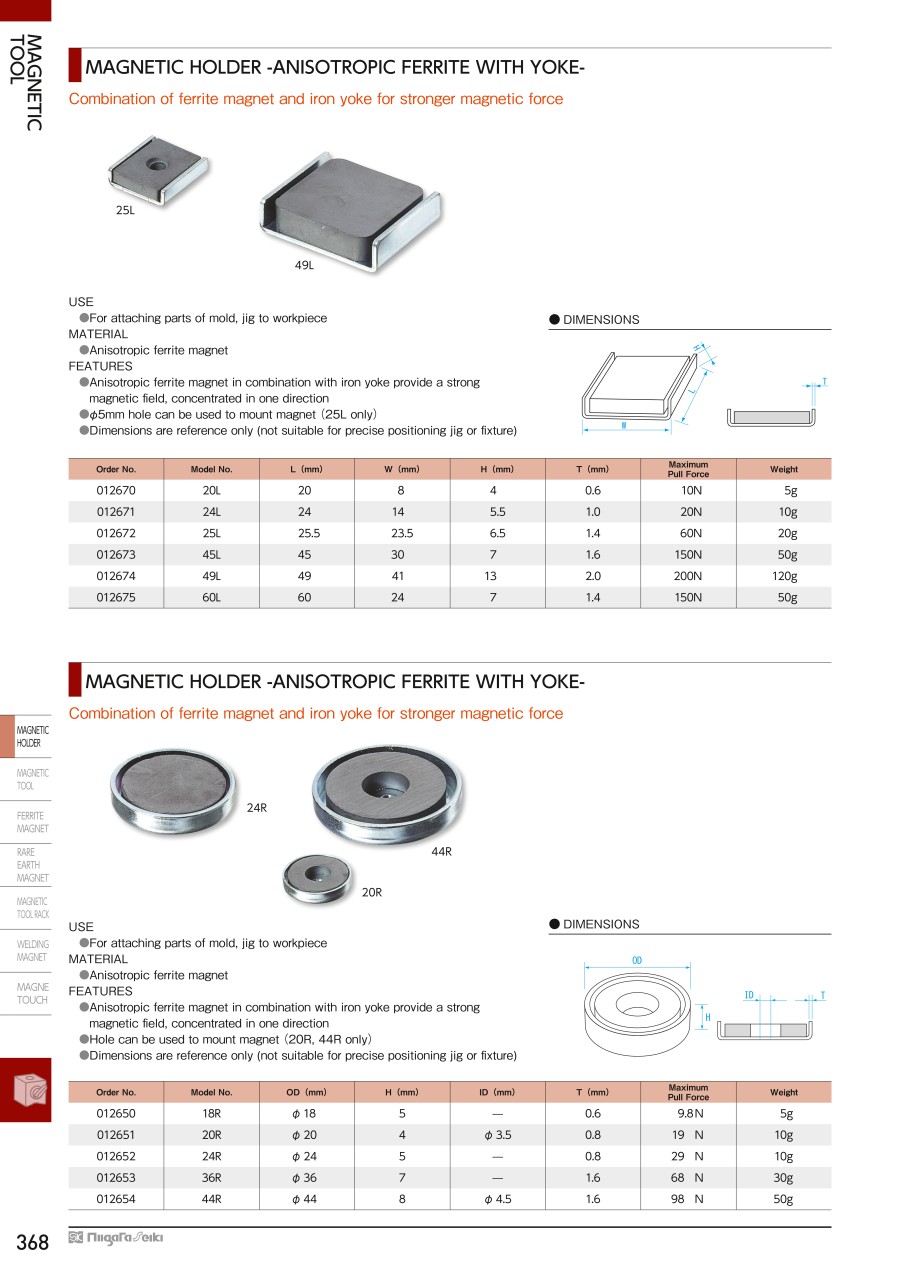

Simple Rectangular Magnet Holder

Simple Rectangular Magnet Holder

Part number:

Still undefined. 6 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    20L
    24L
    25L
    45L
    49L
    60L

    Adsorption Power

    (N)

    L

    (mm)

    H

    (mm)

    W

    (mm)

    T

    (mm)

    		Minimum order quantity
    10
    20
    4
    8
    0.6
    1 pieces
    20
    24
    5.5
    14
    1.0
    1 pieces
    60
    25.5
    6.5
    23.5
    1.4
    1 pieces
    150
    45
    7
    30
    1.6
    1 pieces
    200
    49
    13
    41
    2.0
    1 pieces
    150
    60
    7
    24
    1.4
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    2.37 €
    ( 2.82 € )
    7 working days
    2.68 €
    ( 3.19 € )
    8 working days
    3.27 €
    ( 3.89 € )
    6 working days
    6.91 €
    ( 8.22 € )
    6 working days
    10.88 €
    ( 12.95 € )
    6 working days
    5.60 €
    ( 6.66 € )
    6 working days
  • 1

    • More Information

    Basic information

    Ferrite magnet and yoke (iron) combination provides a magnetic holder with increased magnetic strength.
    [Features]
    · Combining an anisotropic ferrite magnet and yoke (iron), magnetic force is concentrated in a fixed direction.
    · Can be mounted to components, etc. by making use of mounting holes φ5 (5 mm diameter) on yoke. (25L only)
    · Since the dimensions are rough, it is not suitable for incorporating into jigs.
    [Applications]
    · Used for attachment to iron plate etc. and mold and jig tool attachment parts as well as retaining drawings and rulers, etc.
