OSG

Regular Type for General Machining EX-GDR

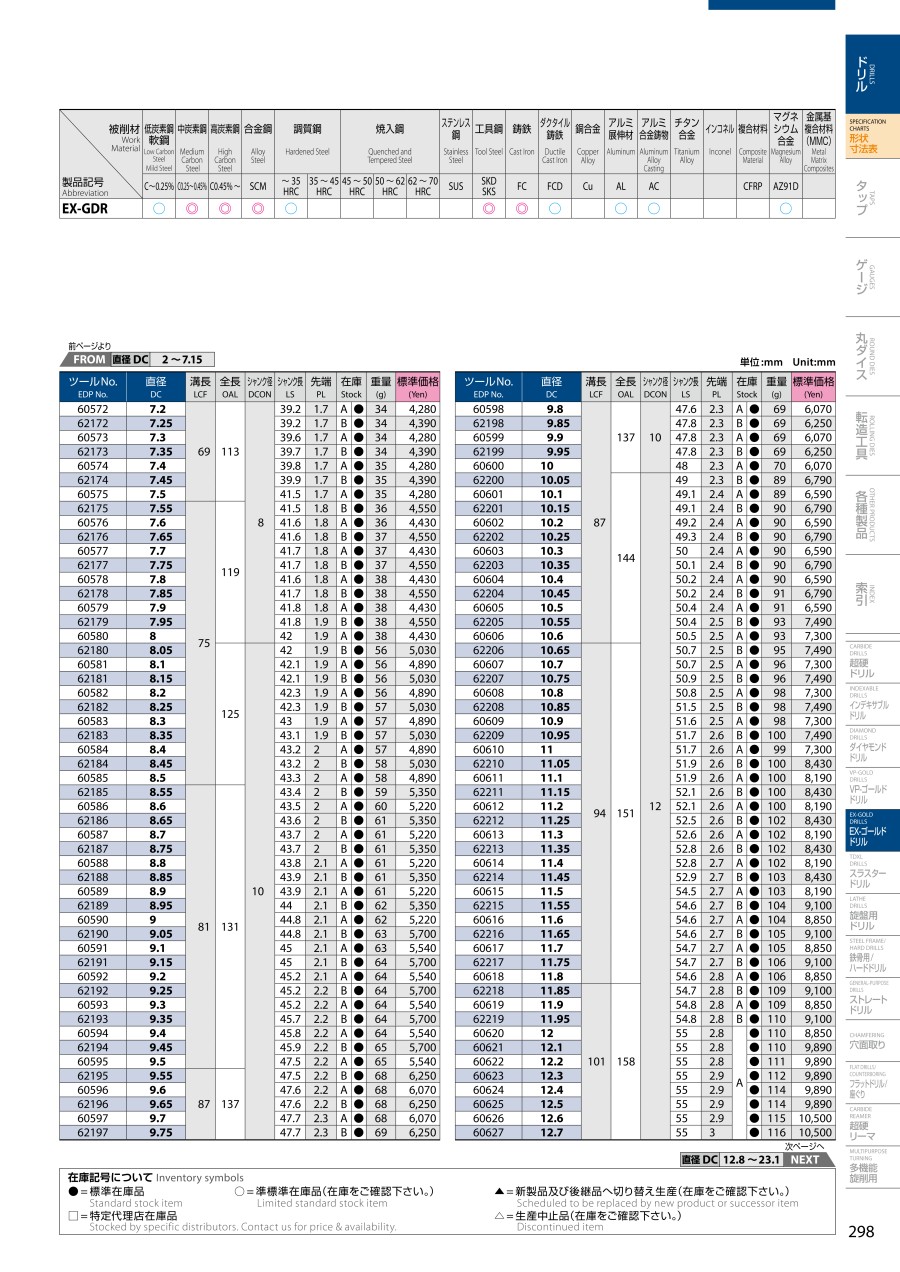

Catalog

Part number:

Still undefined. 247 possible part numbers found.

Product information
Part number list
More Information
Catalog

Product information

Part number list

Number of items

Part number

Hole diameter (drill diameter) Dc

(mm)

Groove Length L

(mm)

Overall Length L

(mm)

Shank Type

Shank diameter

(mm)

Tool No.

Thinning

Minimum order quantity

2	24	56	End Mill Shank	3	60520	X Type	1 pieces
2.05	24	56	End Mill Shank	3	62120	X Type	1 pieces
2.1	24	56	End Mill Shank	3	60521	X Type	1 pieces
2.2	27	59	End Mill Shank	3	60522	X Type	1 pieces
2.3	27	59	End Mill Shank	3	60523	X Type	1 pieces
2.4	30	62	End Mill Shank	3	60524	X Type	1 pieces
2.5	30	62	End Mill Shank	3	60525	X Type	1 pieces
2.6	30	62	End Mill Shank	3	60526	X Type	1 pieces
2.7	33	65	End Mill Shank	3	60527	X Type	1 pieces
2.8	33	65	End Mill Shank	3	60528	X Type	1 pieces
2.9	33	65	End Mill Shank	3	60529	X Type	1 pieces
2.15	27	59	End Mill Shank	3	62121	X Type	1 pieces
2.25	27	59	End Mill Shank	3	62122	X Type	1 pieces
2.35	27	59	End Mill Shank	3	62123	X Type	1 pieces
2.45	30	62	End Mill Shank	3	62124	X Type	1 pieces
2.55	30	62	End Mill Shank	3	62125	X Type	1 pieces
2.65	30	62	End Mill Shank	3	62126	X Type	1 pieces
2.75	33	65	End Mill Shank	3	62127	X Type	1 pieces
2.85	33	65	End Mill Shank	3	62128	X Type	1 pieces
2.95	33	65	End Mill Shank	3	62129	X Type	1 pieces
3	33	65	Straight shank	3	60530	X Type	1 pieces
3.05	36	68	End Mill Shank	4	62130	X Type	1 pieces
3.1	36	68	End Mill Shank	4	60531	X Type	1 pieces
3.2	36	68	End Mill Shank	4	60532	X Type	1 pieces
3.3	36	68	End Mill Shank	4	60533	X Type	1 pieces
3.4	39	71	End Mill Shank	4	60534	X Type	1 pieces
3.5	39	71	End Mill Shank	4	60535	X Type	1 pieces
3.6	39	71	End Mill Shank	4	60536	X Type	1 pieces
3.7	39	71	End Mill Shank	4	60537	X Type	1 pieces
3.8	43	75	End Mill Shank	4	60538	X Type	1 pieces
3.9	43	75	End Mill Shank	4	60539	X Type	1 pieces
3.15	36	68	End Mill Shank	4	62131	X Type	1 pieces
3.25	36	68	End Mill Shank	4	62132	X Type	1 pieces
3.35	36	68	End Mill Shank	4	62133	X Type	1 pieces
3.45	39	71	End Mill Shank	4	62134	X Type	1 pieces
3.55	39	71	End Mill Shank	4	62135	X Type	1 pieces
3.65	39	71	End Mill Shank	4	62136	X Type	1 pieces
3.75	39	71	End Mill Shank	4	62137	X Type	1 pieces
3.85	43	75	End Mill Shank	4	62138	X Type	1 pieces
3.95	43	75	End Mill Shank	4	62139	X Type	1 pieces
4	43	75	Straight shank	4	60540	R Type	1 pieces
4.05	43	87	End Mill Shank	6	62140	R Type	1 pieces
4.1	43	87	End Mill Shank	6	60541	R Type	1 pieces
4.2	43	87	End Mill Shank	6	60542	R Type	1 pieces
4.3	47	91	End Mill Shank	6	60543	R Type	1 pieces
4.4	47	91	End Mill Shank	6	60544	R Type	1 pieces
4.5	47	91	End Mill Shank	6	60545	R Type	1 pieces
4.6	47	91	End Mill Shank	6	60546	R Type	1 pieces
4.7	47	91	End Mill Shank	6	60547	R Type	1 pieces
4.8	52	96	End Mill Shank	6	60548	R Type	1 pieces
4.9	52	96	End Mill Shank	6	60549	R Type	1 pieces
4.15	43	87	End Mill Shank	6	62141	R Type	1 pieces
4.25	43	87	End Mill Shank	6	62142	R Type	1 pieces
4.35	47	91	End Mill Shank	6	62143	R Type	1 pieces
4.45	47	91	End Mill Shank	6	62144	R Type	1 pieces
4.55	47	91	End Mill Shank	6	62145	R Type	1 pieces
4.65	47	91	End Mill Shank	6	62146	R Type	1 pieces
4.75	47	91	End Mill Shank	6	62147	R Type	1 pieces
4.85	52	96	End Mill Shank	6	62148	R Type	1 pieces
4.95	52	96	End Mill Shank	6	62149	R Type	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

12.10 € ( 14.40 € )	6 working days
17.10 € ( 20.35 € )	6 working days
14.20 € ( 16.90 € )	6 working days
14.20 € ( 16.90 € )	6 working days
14.20 € ( 16.90 € )	6 working days
14.20 € ( 16.90 € )	6 working days
13.40 € ( 15.95 € )	6 working days
14.20 € ( 16.90 € )	6 working days
14.20 € ( 16.90 € )	6 working days
14.20 € ( 16.90 € )	6 working days
14.20 € ( 16.90 € )	6 working days
17.10 € ( 20.35 € )	6 working days
17.10 € ( 20.35 € )	6 working days
17.10 € ( 20.35 € )	6 working days
17.10 € ( 20.35 € )	6 working days
17.10 € ( 20.35 € )	6 working days
17.10 € ( 20.35 € )	6 working days
17.10 € ( 20.35 € )	6 working days
17.10 € ( 20.35 € )	6 working days
17.10 € ( 20.35 € )	6 working days
14.20 € ( 16.90 € )	6 working days
17.10 € ( 20.35 € )	6 working days
16.00 € ( 19.04 € )	6 working days
16.00 € ( 19.04 € )	6 working days
16.00 € ( 19.04 € )	6 working days
16.00 € ( 19.04 € )	6 working days
16.00 € ( 19.04 € )	6 working days
17.50 € ( 20.82 € )	6 working days
17.50 € ( 20.82 € )	6 working days
17.50 € ( 20.82 € )	6 working days
19.00 € ( 22.61 € )	6 working days
17.10 € ( 20.35 € )	6 working days
17.10 € ( 20.35 € )	6 working days
17.10 € ( 20.35 € )	6 working days
17.10 € ( 20.35 € )	6 working days
20.40 € ( 24.28 € )	6 working days
20.40 € ( 24.28 € )	6 working days
20.40 € ( 24.28 € )	6 working days
22.30 € ( 26.54 € )	6 working days
20.40 € ( 24.28 € )	6 working days
17.50 € ( 20.82 € )	6 working days
23.90 € ( 28.44 € )	6 working days
20.70 € ( 24.63 € )	6 working days
19.60 € ( 23.32 € )	6 working days
20.70 € ( 24.63 € )	6 working days
20.70 € ( 24.63 € )	6 working days
20.70 € ( 24.63 € )	6 working days
23.50 € ( 27.96 € )	6 working days
23.50 € ( 27.96 € )	6 working days
23.50 € ( 27.96 € )	6 working days
23.50 € ( 27.96 € )	6 working days
23.90 € ( 28.44 € )	6 working days
23.90 € ( 28.44 € )	6 working days
23.90 € ( 28.44 € )	6 working days
23.90 € ( 28.44 € )	6 working days
28.20 € ( 33.56 € )	6 working days
28.20 € ( 33.56 € )	6 working days
28.20 € ( 33.56 € )	6 working days
28.20 € ( 33.56 € )	6 working days
30.80 € ( 36.65 € )	6 working days

Basic information

Basic information

[Features] With an overall length of 59 mm to 235 mm, it is a highly versatile drill that provides high-speed stepless machining up to 4 to 5 times the diameter.

Catalog

Products homepage

Catalog (2-page spread)

Regular Type for General Machining EX-GDR

Product information

Part number list

More Information

Basic information

Catalog
