2-Flute Long Neck Ball End (Heavy Duty Type) WXL-HS-LN-EBD
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| WXL-HS-LN-EBD-R0.3X1.5X4 |
| WXL-HS-LN-EBD-R0.3X2.5X4 |
| WXL-HS-LN-EBD-R0.3X4X4 |
| WXL-HS-LN-EBD-R0.3X6X4 |
| WXL-HS-LN-EBD-R1.5X12X4 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | R Size (mm) | Blade length (ℓ) (mm) | Overall Length (L) (mm) | Underneck length (ℓ1) (mm) | Tool No. | Neck diameter (mm) | Grip Margin (Reference) (mm) | Interference Angle (Degree) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
20.02 € | 1 | 6 Days | 0.3 | 0.5 | 35 | 1.5 | 3140615 | 0.55 | 26.5 | 12.14 | ||
20.41 € | 1 | 6 Days | 0.3 | 0.5 | 35 | 2.5 | 3140625 | 0.55 | 25.5 | 10.82 | ||
21.35 € | 1 | 6 Days | 0.3 | 0.5 | 40 | 4 | 3140640 | 0.55 | 29 | 9.29 | ||
21.35 € | 1 | 6 Days | 0.3 | 0.5 | 40 | 6 | 3140660 | 0.55 | 27 | 7.81 | ||
26.45 € | 1 | 6 Days | 1.5 | 2.4 | 40 | 12 | 3143112 | 2.85 | 25.7 | 2.15 |
Loading...
Basic information
| Type | Long Neck Bore | work material | General steel / Heat-Treated Steel / High hardness steel –HRC55 / Stainless Steel / Cast Iron / Aluminum / Titanium / Copper | Number of flutes(sheet) | 2 |
|---|---|---|---|---|---|
| Coating | For General Steel (AlCrN etc.) | Shank diameter (d)(mm) | 4 | R Precision(μm) | -0.005～+0.005 |
| Machining Application | Curved Surface / Side Surface / Carving / R-Groove | With/Without Torsion | Available |
Configure
Basic Attributes
-
R Size(mm)
-
Blade length (ℓ)(mm)
-
Overall Length (L)(mm)
-
Underneck length (ℓ1)(mm)
-
Tool No.
-
Type
- WXL-HS-LN-EBD
Filter by standard shipping days
-
- All
- 6 Days or Less
Optional Attributes

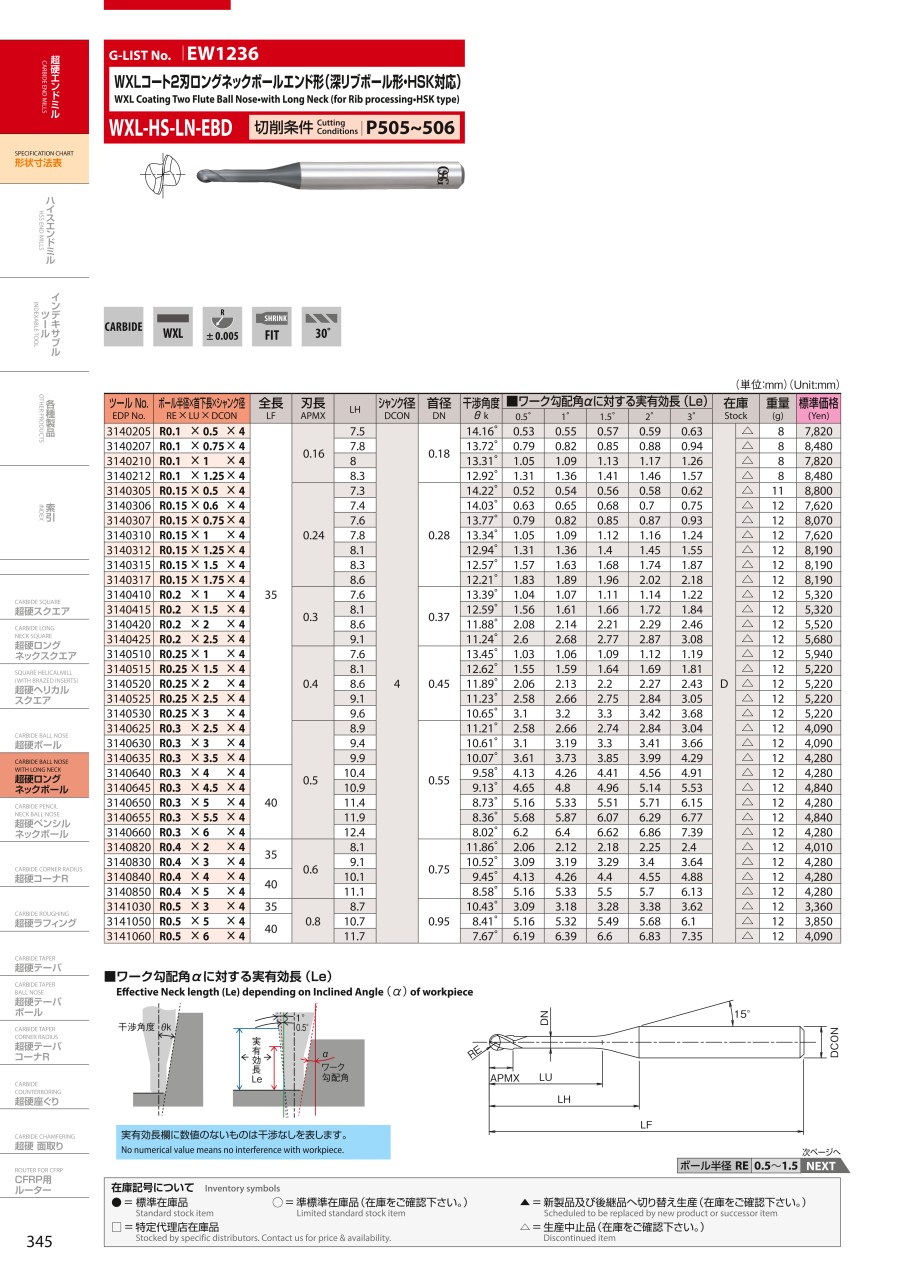

- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
