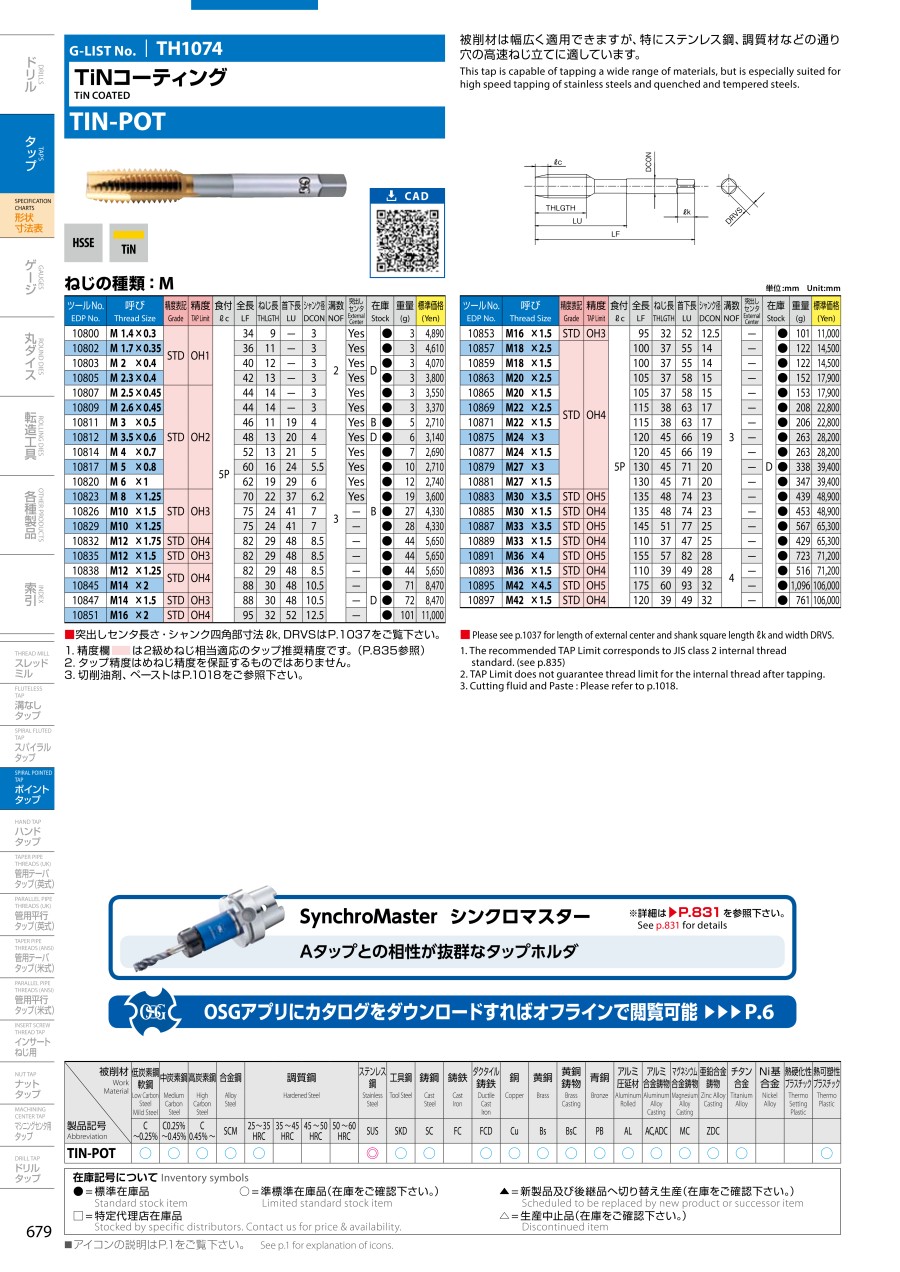

Point Tap Series, Tin Coated, TIN-POT

Point Tap Series, Tin Coated, TIN-POT
  • Volume Discount

OSG

OSG

Though workpiece can be widely applied, it is suitable for high speed tapping of through holes, such as tempered material, and especially stainless steel

Data sheet

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Data to be displayed
30
45
60
  1. 1
Part Number
TIN-POT-OH1-M1.4X0.3
TIN-POT-OH1-M1.7X0.35
TIN-POT-OH1-M2X0.4
TIN-POT-OH1-M2.3X0.4
TIN-POT-OH2-M2.5X0.45
TIN-POT-OH2-M2.6X0.45
TIN-POT-OH2-M3X0.5
TIN-POT-OH2-M3.5X0.6
TIN-POT-OH2-M4X0.7
TIN-POT-OH2-M5X0.8
TIN-POT-OH2-M6X1
TIN-POT-OH3-M8X1.25
TIN-POT-OH3-M10X1.5
TIN-POT-OH3-M10X1.25
TIN-POT-OH3-M12X1.5
TIN-POT-OH3-M14X1.5
TIN-POT-OH3-M16X1.5
TIN-POT-OH4-M12X1.25
TIN-POT-OH4-M12X1.75
TIN-POT-OH4-M14X2
TIN-POT-OH4-M16X2
TIN-POT-OH4-M18X1.5
TIN-POT-OH4-M18X2.5
TIN-POT-OH4-M20X1.5
TIN-POT-OH4-M20X2.5
TIN-POT-OH4-M22X1.5
TIN-POT-OH4-M22X2.5
TIN-POT-OH4-M24X1.5
TIN-POT-OH4-M24X3
TIN-POT-OH4-M27X1.5
TIN-POT-OH4-M27X3
TIN-POT-OH4-M30X1.5
TIN-POT-OH4-M33X1.5
TIN-POT-OH4-M36X1.5
TIN-POT-OH4-M42X1.5
TIN-POT-OH5-M30X3.5
TIN-POT-OH5-M33X3.5
TIN-POT-OH5-M36X4
TIN-POT-OH5-M42X4.5
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
Nominal Pitch, Number of Threading
(mm) 		L
(mm) 		Accuracy Length under neck
(mm) 		Shank diameter
(mm) 		Number of Grooves Thread Length
(mm) 		Tool No.

26.13 €

1 Available 6 Days M1.40.334OH1-32910800

25.07 €

1 Available 6 Days M1.70.3536OH1-321110802

22.07 €

1 6 Days M20.440OH1-321210803

20.73 €

1 Available 6 Days M2.30.442OH1-321310805

19.86 €

1 Available 6 Days M2.50.4544OH2-321410807

18.96 €

1 6 Days M2.60.4544OH2-321410809

16.14 €

1 6 Days M30.546OH219431110811

17.42 €

1 Available 6 Days M3.50.648OH220431310812

15.45 €

1 6 Days M40.752OH221531310814

16.04 €

1 Available 6 Days M50.860OH2245.531610817

16.24 €

1 6 Days M6162OH229631910820

20.58 €

1 Available 6 Days M81.2570OH3376.232210823

24.67 €

1 Available 6 Days M101.575OH341732410826

24.67 €

1 Available 6 Days M101.2575OH341732410829

31.58 €

1 Available 6 Days M121.582OH3488.532910835

43.86 €

1 Available 6 Days M141.588OH34810.533010847

56.27 €

1 Available 6 Days M161.595OH35212.533210853

31.58 €

1 Available 6 Days M121.2582OH4488.532910838

31.58 €

1 Available 6 Days M121.7582OH4488.532910832

43.86 €

1 Available 6 Days M14288OH44810.533010845

56.61 €

1 Available 6 Days M16295OH45212.533210851

73.30 €

1 Available 6 Days M181.5100OH4551433710859

73.30 €

1 Available 6 Days M182.5100OH4551433710857

90.72 €

1 Available 6 Days M201.5105OH4581533710865

90.72 €

1 Available 6 Days M202.5105OH4581533710863

102.38 €

1 6 Days M221.5115OH4631733810871

102.38 €

1 6 Days M222.5115OH4631733810869

127.29 €

1 6 Days M241.5120OH4661934510877

127.29 €

1 6 Days M243120OH4661934510875

176.04 €

1 6 Days M271.5130OH4712034510881

176.04 €

1 6 Days M273130OH4712034510879

219.38 €

1 6 Days M301.5135OH4742334810885

293.04 €

1 6 Days M331.5110OH4472533710889

319.58 €

1 6 Days M361.5110OH4492843910893

472.88 €

1 6 Days M421.5120OH4493243910897

219.38 €

1 6 Days M303.5135OH5742334810883

293.04 €

1 6 Days M333.5145OH5772535110887

319.58 €

1 6 Days M364155OH5822845710891

472.88 €

1 6 Days M424.5175OH5933246010895

Loading...

  1. 1


Basic information

Screw Types Meter Chamfer threads 5P Tool Material Type Vanadium high-speed steel
Work material Low-Carbon Steel (carbon alloy less than 0.25%) / Medium carbon steel (carbon content 0.25 to 0.45%) / High Carbon Steel (C with a content over 0.45%) / Alloy Steel (SCM) / Stainless Steel (JIS-SUS) / Tool Steel (Before SKD Hardening) / Steel casting (SC) / Ductile Cast Iron (FCD) / Copper (Cu) / Brass (Bs) / Brass cast iron (BsC) / Bronze (Pb) / Aluminum Rolled Material (AL) / Aluminum Alloy Casting (AC, ADC) / Magnesium Alloy (MC) / Zinc Alloy Casting (ZDC) / Titanium Alloy (Ti-6Al-4V, etc) / Thermoplastic plastic (vinyl chloride, nylon, etc.) Tap Type Point tap Hole type For through hole
Coating Y/N Available Coating Type TiN

Configure

Clear all

39Suggestion of an applicable part number.

View Part Numbers

Some specification is not specified yet.
The part number is completed.

Basic Attributes

  • Nominal

    • M1.4
    • M1.7
    • M2
    • M2.3
    • M2.5
    • M2.6
    • M3
    • M3.5
    • M4
    • M5
    • M6
    • M8
    • M10
    • M12
    • M14
    • M16
    • M18
    • M20
    • M22
    • M24
    • M27
    • M30
    • M33
    • M36
    • M42

    Clear

  • Pitch, Number of Threading(mm)

    • 0.3
    • 0.35
    • 0.4
    • 0.45
    • 0.5
    • 0.6
    • 0.7
    • 0.8
    • 1
    • 1.25
    • 1.5
    • 1.75
    • 2
    • 2.5
    • 3
    • 3.5
    • 4
    • 4.5

    Clear

  • L(mm)

    • 34
    • 36
    • 40
    • 42
    • 44
    • 46
    • 48
    • 52
    • 60
    • 62
    • 70
    • 75
    • 82
    • 88
    • 95
    • 100
    • 105
    • 110
    • 115
    • 120
    • 130
    • 135
    • 145
    • 155
    • 175

    Clear

  • Accuracy

    • OH1
    • OH2
    • OH3
    • OH4
    • OH5

    Clear

  • Length under neck(mm)

    • 19
    • 20
    • 21
    • 24
    • 29
    • 37
    • 41
    • 47
    • 48
    • 49
    • 52
    • 55
    • 58
    • 63
    • 66
    • 71
    • 74
    • 77
    • 82
    • 93

    Clear

  • Shank diameter(mm)

    • 3
    • 4
    • 5
    • 5.5
    • 6
    • 6.2
    • 7
    • 8.5
    • 10.5
    • 12.5
    • 14
    • 15
    • 17
    • 19
    • 20
    • 23
    • 25
    • 28
    • 32

    Clear

  • Number of Grooves

    • 2
    • 3
    • 4

    Clear

  • Thread Length(mm)

    • 9
    • 11
    • 12
    • 13
    • 14
    • 16
    • 19
    • 22
    • 24
    • 29
    • 30
    • 32
    • 37
    • 38
    • 39
    • 45
    • 48
    • 51
    • 57
    • 60

    Clear

  • Type

    • TIN-POT
