UNION TOOL

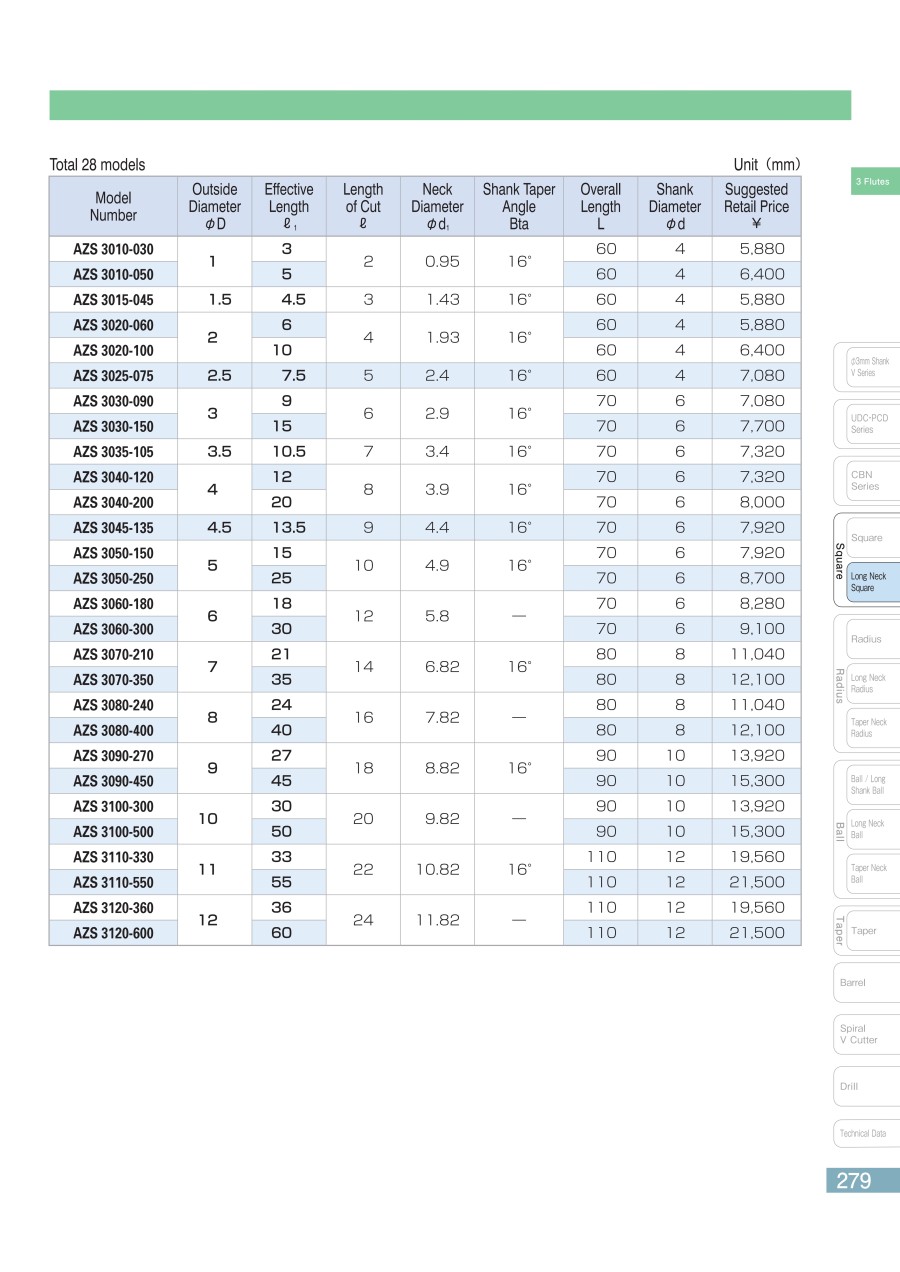

AZS 3-Flute Long-Neck Square Head for Processing Aluminum

AZS 3-Flute Long-Neck Square Head for Processing Aluminum

Part number:

Still undefined. 22 possible part numbers found.
    Quantity:

    Part number list

    Number of items
  • 1
    • Part number
    AZS3010-030
    AZS3010-050
    AZS3015-045
    AZS3020-060
    AZS3020-100
    AZS3025-075
    AZS3030-090
    AZS3030-150
    AZS3035-105
    AZS3040-120
    AZS3040-200
    AZS3045-135
    AZS3050-150
    AZS3050-250
    AZS3060-180
    AZS3060-300
    AZS3080-240
    AZS3080-400
    AZS3100-300
    AZS3100-500
    AZS3120-360
    AZS3120-600

    Blade diameter (D)

    (φ)

    Blade length (ℓ)

    (mm)

    Shank diameter (d)

    (mm)

    Overall Length (L)

    (mm)

    Underneck length (ℓ1)

    (mm)

    Blade diameter tolerance

    (mm)

    Neck diameter φd1

    (mm)

    Shank Taper Angle Bta

    (°)

    		Minimum order quantity
    1
    2
    4
    60
    3
    0～-0.015
    0.95
    16°
    1 pieces
    1
    2
    4
    60
    5
    0～-0.015
    0.95
    16°
    1 pieces
    1.5
    3
    4
    60
    4.5
    0～-0.015
    1.43
    16°
    1 pieces
    2
    4
    4
    60
    6
    0～-0.015
    1.93
    16°
    1 pieces
    2
    4
    4
    60
    10
    0～-0.015
    1.93
    16°
    1 pieces
    2.5
    5
    4
    60
    7.5
    0～-0.015
    2.4
    16°
    1 pieces
    3
    6
    6
    70
    9
    0～-0.015
    2.9
    16°
    1 pieces
    3
    6
    6
    70
    15
    0～-0.015
    2.9
    16°
    1 pieces
    3.5
    7
    6
    70
    10.5
    0～-0.015
    3.4
    16°
    1 pieces
    4
    8
    6
    70
    12
    0～-0.015
    3.9
    16°
    1 pieces
    4
    8
    6
    70
    20
    0～-0.015
    3.9
    16°
    1 pieces
    4.5
    9
    6
    70
    13.5
    0～-0.015
    4.4
    16°
    1 pieces
    5
    10
    6
    70
    15
    0～-0.015
    4.9
    16°
    1 pieces
    5
    10
    6
    70
    25
    0～-0.015
    4.9
    16°
    1 pieces
    6
    12
    6
    70
    18
    0～-0.015
    5.8
    -
    1 pieces
    6
    12
    6
    70
    30
    0～-0.015
    5.8
    -
    1 pieces
    8
    16
    8
    80
    24
    0～-0.005
    7.82
    -
    1 pieces
    8
    16
    8
    80
    40
    0～-0.005
    7.82
    -
    1 pieces
    10
    20
    10
    90
    30
    0～-0.005
    9.82
    -
    1 pieces
    10
    20
    10
    90
    50
    0～-0.005
    9.82
    -
    1 pieces
    12
    24
    12
    110
    36
    0～-0.005
    11.82
    -
    1 pieces
    12
    24
    12
    110
    36
    0～-0.005
    11.82
    -
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    50.20 €
    ( 59.74 € )
    7 working days
    54.82 €
    ( 65.24 € )
    7 working days
    50.20 €
    ( 59.74 € )
    7 working days
    50.20 €
    ( 59.74 € )
    7 working days
    54.82 €
    ( 65.24 € )
    7 working days
    60.79 €
    ( 72.34 € )
    6 working days
    60.79 €
    ( 72.34 € )
    7 working days
    65.86 €
    ( 78.37 € )
    8 working days
    62.64 €
    ( 74.54 € )
    7 working days
    62.64 €
    ( 74.54 € )
    7 working days
    68.63 €
    ( 81.67 € )
    10 working days
    67.70 €
    ( 80.56 € )
    8 working days
    67.70 €
    ( 80.56 € )
    7 working days
    74.62 €
    ( 88.80 € )
    7 working days
    70.92 €
    ( 84.39 € )
    8 working days
    77.84 €
    ( 92.63 € )
    7 working days
    94.86 €
    ( 112.88 € )
    8 working days
    103.63 €
    ( 123.32 € )
    7 working days
    119.28 €
    ( 141.94 € )
    8 working days
    131.26 €
    ( 156.20 € )
    7 working days
    167.64 €
    ( 199.49 € )
    7 working days
    184.21 €
    ( 219.21 € )
    7 working days
  • 1

    • More Information

    Basic information

    [Features]
    · Z-cutting is possible on solid workpieces, reducing pilot hole drilling process time
    · Adopts a 45° torsion angle to achieve excellent chip discharge performance
    · The blade shape dedicated for aluminum greatly suppresses the generation of burrs
    · Tip chipping has been greatly reduced by adopting a micro flat land
