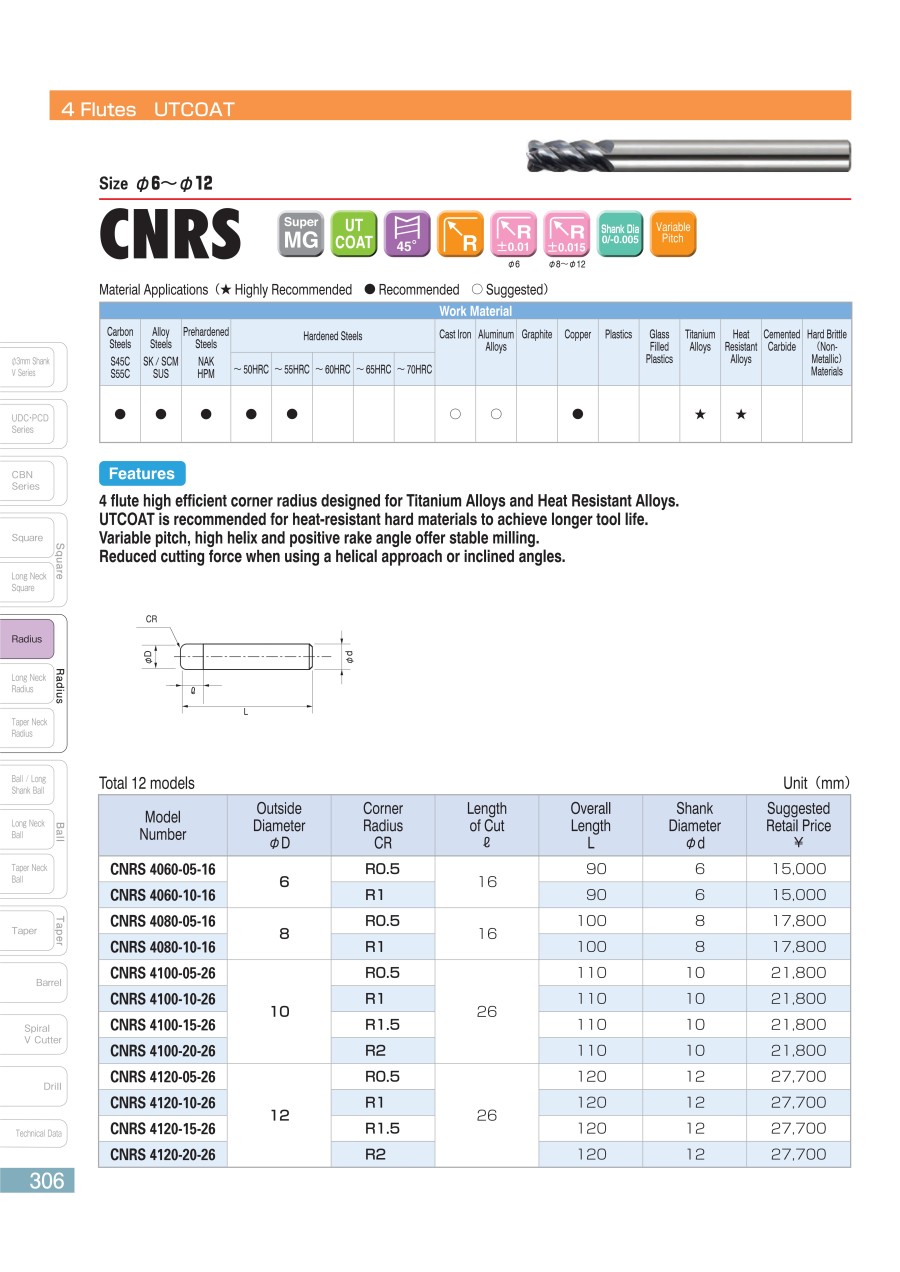

CNRS 4-Flute Radius for Difficult-to-Machine Materials
· High Efficiency 4-Flute Radius for Machining Titanium / Super Heat Resistant Alloy
· Life-span increasing UT coating suitable for heat resistant and difficult to cut materials
· Variable split, high torsion and positive rake angle design enables stable machining
· A blade design that reduces the cutting resistance in helical and inclined use, etc.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| CNRS4060-10-16 |
| CNRS4080-10-16 |
| CNRS4100-10-26 |
| CNRS4100-15-26 |
| CNRS4100-20-26 |
| CNRS4120-10-26 |
| CNRS4120-15-26 |
| CNRS4120-20-26 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Blade diameter (D) (φ) | R Size (mm) | Blade length (ℓ) (mm) | Overall Length (L) (mm) | Shank diameter (d) (mm) | |
|---|---|---|---|---|---|---|---|---|---|
131.63 € | 1 | 6 Days | 6 | 1 | 16 | 90 | 6 | ||
156.32 € | 1 | 6 Days | 8 | 1 | 16 | 100 | 8 | ||
191.16 € | 1 | 11 Days | 10 | 1 | 26 | 110 | 10 | ||
191.16 € | 1 | 6 Days | 10 | 1.5 | 26 | 110 | 10 | ||
191.16 € | 1 | 6 Days | 10 | 2 | 26 | 110 | 10 | ||
243.01 € | 1 | 6 Days | 12 | 1 | 26 | 120 | 12 | ||
243.01 € | 1 | 6 Days | 12 | 1.5 | 26 | 120 | 12 | ||
243.01 € | 1 | 6 Days | 12 | 2 | 26 | 120 | 12 |
Loading...
Basic information
| work material | General steel / Quenched and tempered steel / High hardness steel –HRC55 / Stainless Steel / Cast Iron / Aluminum / Titanium / Copper | Number of flutes(sheet) | 4 | Type | Radius |
|---|---|---|---|---|---|
| Machining Application | Plane / Side / Curved surface | Coating | TiCN |
Configure
Basic Attributes
-
Blade diameter (D)(φ)
-
R Size(mm)
-
Blade length (ℓ)(mm)
-
Overall Length (L)(mm)
-
Shank diameter (d)(mm)
-
Type
- CNRS
Filter by standard shipping days
-
- All
- 6 Days or Less
- 11 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
