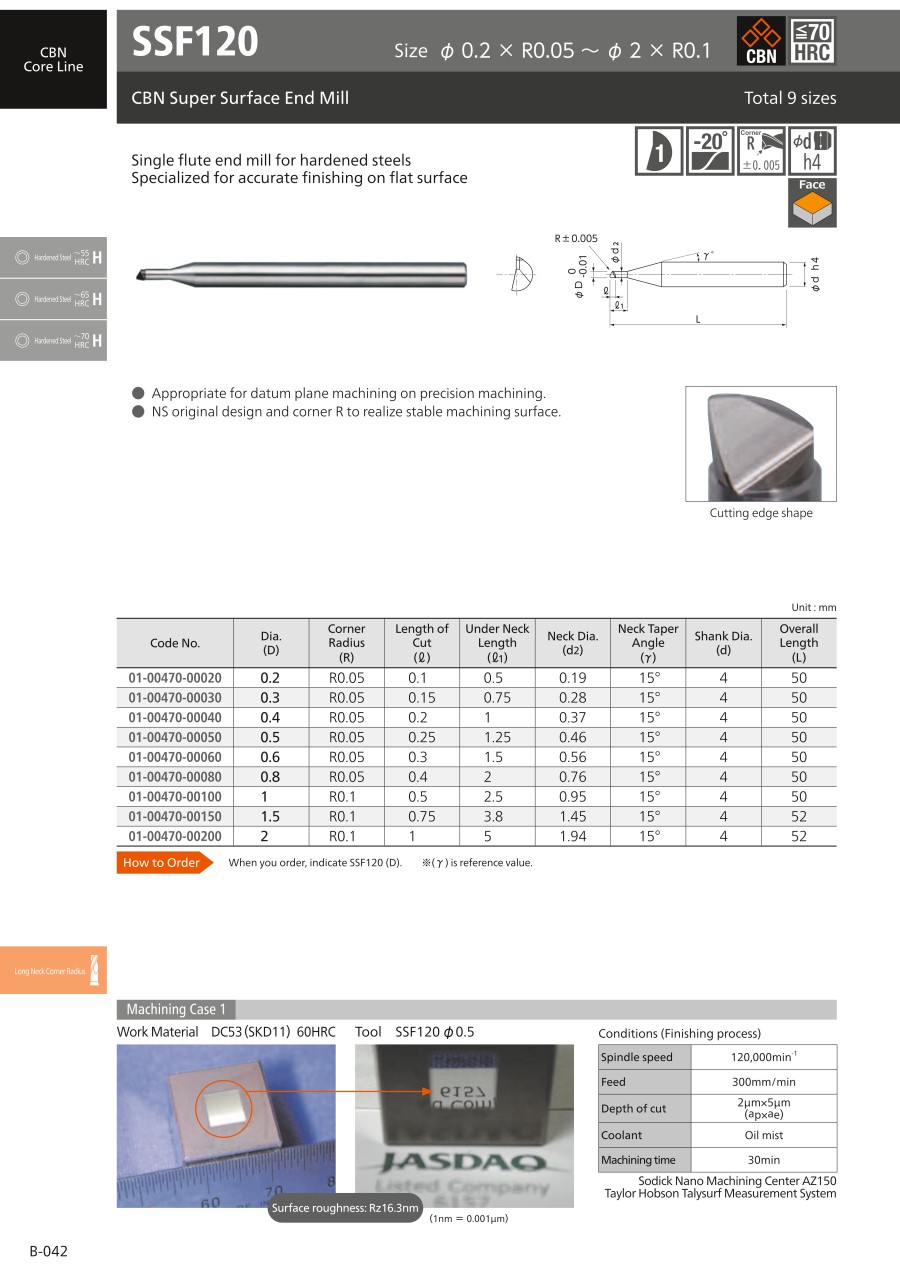

SSF120 CBN Super Surface End Mill
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| SSF120-0.2 |
| SSF120-0.3 |
| SSF120-0.4 |
| SSF120-0.5 |
| SSF120-0.6 |
| SSF120-0.8 |
| SSF120-1 |
| SSF120-1.5 |
| SSF120-2 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Blade diameter (D) (φ) | Blade length (ℓ) (mm) | Underneck length (ℓ1) (mm) | (R) Corner Radius (mm) | (d2) Neck Diameter (mm) | Manufacturer Code | Shape | (l2) Effective Length 2 (mm) | (d3) Throat Diameter (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
193.30 € | 1 | 6 Days | 0.2 | 0.1 | 0.5 | 0.05 | 0.18 | 01-00470-00020 | A | 4.9 | 1.5 | ||
165.70 € | 1 | 6 Days | 0.3 | 0.15 | 0.75 | 0.05 | 0.28 | 01-00470-00030 | A | 5 | 1.5 | ||
138.10 € | 1 | 6 Days | 0.4 | 0.2 | 1 | 0.05 | 0.37 | 01-00470-00040 | A | 5 | 1.5 | ||
121.53 € | 1 | 6 Days | 0.5 | 0.25 | 1.25 | 0.05 | 0.46 | 01-00470-00050 | A | 5.1 | 1.5 | ||
132.57 € | 1 | 6 Days | 0.6 | 0.3 | 1.5 | 0.05 | 0.56 | 01-00470-00060 | A | 5.1 | 1.5 | ||
127.05 € | 1 | 6 Days | 0.8 | 0.4 | 2 | 0.05 | 0.76 | 01-00470-00080 | A | 5.4 | 1.5 | ||
121.53 € | 1 | 6 Days | 1 | 0.5 | 2.5 | 0.1 | 0.95 | 01-00470-00100 | A | 7.7 | 2 | ||
127.05 € | 1 | 6 Days | 1.5 | 0.75 | 3.8 | 0.1 | 1.45 | 01-00470-00150 | B | - | - | ||
138.10 € | 1 | 6 Days | 2 | 1 | 5 | 0.1 | 1.94 | 01-00470-00200 | B | - | - |
Loading...
Basic information
| work material | General steel / Quenched and tempered steel / High hardness steel –HRC55 / High hardness steel –HRC60 / High hardness steel –HRC65 | Number of flutes(sheet) | 1 | Type | Square |
|---|---|---|---|---|---|
| Coating | Non-Coated | Shank diameter (d)(mm) | 4 | Overall Length (L)(mm) | 50 |
| Machining Application | Plane / Side / Groove / Inclined Cuts | Blade tip shape | Micro R | Torsion Angle (θ) | Weak torsion (15 to 25°) |
| (γ) Neck Angle(°) | 15 |
Configure
Basic Attributes
-
Blade diameter (D)(φ)
-
Blade length (ℓ)(mm)
-
Underneck length (ℓ1)(mm)
-
(R) Corner Radius(mm)
- 0.05
- 0.1
-
(d2) Neck Diameter(mm)
-
Manufacturer Code
-
Type
- SSF120
Filter by standard shipping days
-
- All
- 6 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
