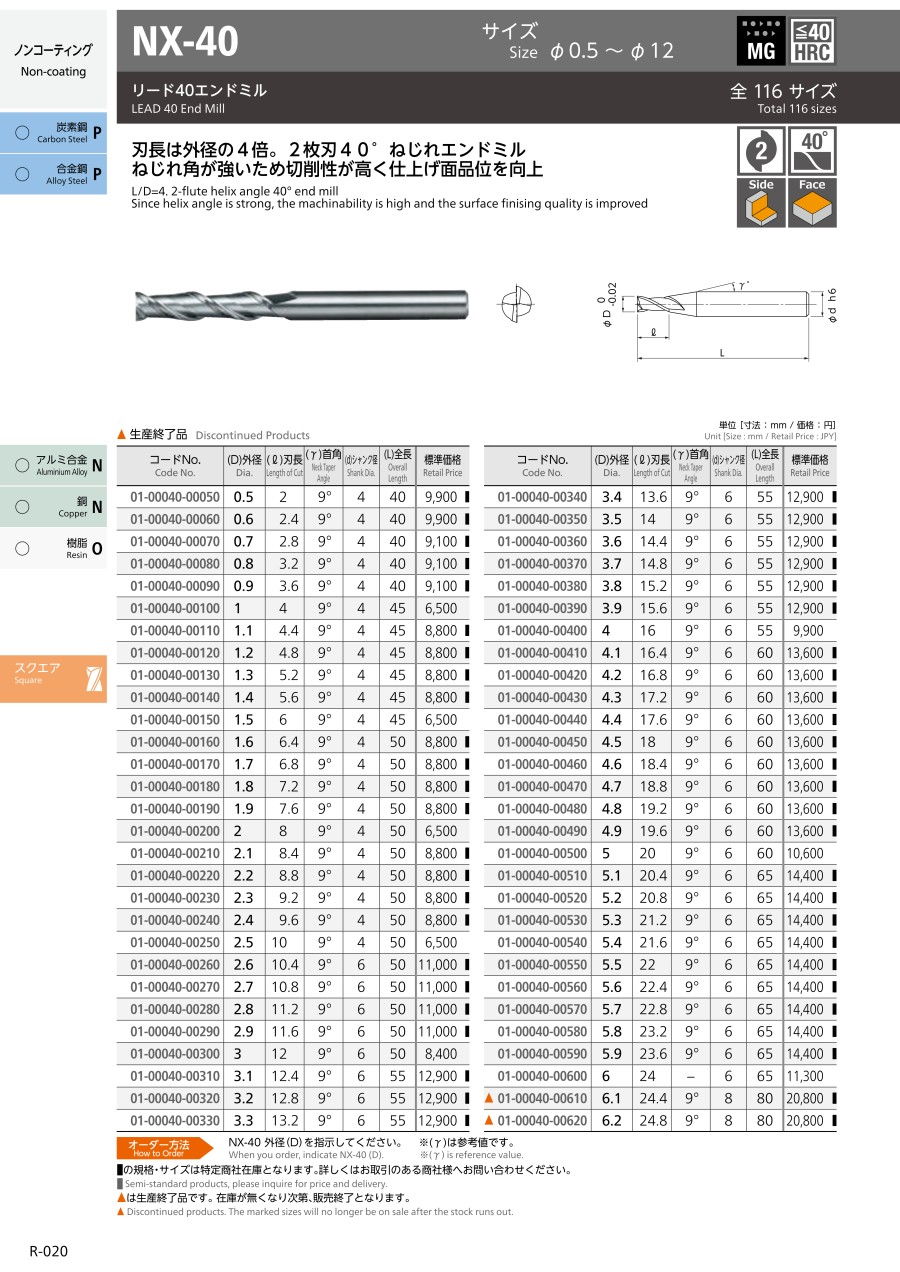

NX-40 Lead 40 End Mill
- Volume Discount
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Blade diameter (D) (φ) | Blade length (ℓ) (mm) | Shank diameter (d) (mm) | Overall Length (L) (mm) | (γ) Neck Angle (°) | Manufacturer Code | |
|---|---|---|---|---|---|---|---|---|---|---|
94.55 € | 1 | Available | 6 Days | 0.5 | 2 | 4 | 45 | 9 | 01-00040-00050 | |
94.55 € | 1 | Available | 6 Days | 0.6 | 2.4 | 4 | 45 | 9 | 01-00040-00060 | |
86.93 € | 1 | Available | 6 Days | 0.7 | 2.8 | 4 | 45 | 9 | 01-00040-00070 | |
86.93 € | 1 | Available | 6 Days | 0.8 | 3.2 | 4 | 45 | 9 | 01-00040-00080 | |
86.93 € | 1 | Available | 6 Days | 0.9 | 3.6 | 4 | 45 | 9 | 01-00040-00090 | |
70.96 € | 1 | Available | 10 Days | 1 | 4 | 4 | 45 | 9 | 01-00040-00100 | |
84.06 € | 1 | Available | 6 Days | 1.1 | 4.4 | 4 | 45 | 9 | 01-00040-00110 | |
84.06 € | 1 | Available | 6 Days | 1.2 | 4.8 | 4 | 45 | 9 | 01-00040-00120 | |
84.06 € | 1 | Available | 6 Days | 1.3 | 5.2 | 4 | 45 | 9 | 01-00040-00130 | |
84.06 € | 1 | Available | 6 Days | 1.4 | 5.6 | 4 | 45 | 9 | 01-00040-00140 | |
62.12 € | 1 | Available | 6 Days | 1.5 | 6 | 4 | 45 | 9 | 01-00040-00150 | |
84.06 € | 1 | Available | 6 Days | 1.6 | 6.4 | 4 | 50 | 9 | 01-00040-00160 | |
84.06 € | 1 | Available | 6 Days | 1.7 | 6.8 | 4 | 50 | 9 | 01-00040-00170 | |
84.06 € | 1 | Available | 6 Days | 1.8 | 7.2 | 4 | 50 | 9 | 01-00040-00180 | |
84.06 € | 1 | Available | 6 Days | 1.9 | 7.6 | 4 | 50 | 9 | 01-00040-00190 | |
62.12 € | 1 | Available | 6 Days | 2 | 8 | 4 | 50 | 9 | 01-00040-00200 | |
84.06 € | 1 | Available | 6 Days | 2.1 | 8.4 | 4 | 50 | 9 | 01-00040-00210 | |
84.06 € | 1 | Available | 6 Days | 2.2 | 8.8 | 4 | 50 | 9 | 01-00040-00220 | |
84.06 € | 1 | Available | 6 Days | 2.3 | 9.2 | 4 | 50 | 9 | 01-00040-00230 | |
84.06 € | 1 | Available | 6 Days | 2.4 | 9.6 | 4 | 50 | 9 | 01-00040-00240 | |
62.12 € | 1 | Available | 6 Days | 2.5 | 10 | 4 | 50 | 9 | 01-00040-00250 | |
105.04 € | 1 | Available | 6 Days | 2.6 | 10.4 | 6 | 50 | 9 | 01-00040-00260 | |
105.04 € | 1 | Available | 6 Days | 2.7 | 10.8 | 6 | 50 | 9 | 01-00040-00270 | |
105.04 € | 1 | Available | 6 Days | 2.8 | 11.2 | 6 | 50 | 9 | 01-00040-00280 | |
105.04 € | 1 | Available | 6 Days | 2.9 | 11.6 | 6 | 50 | 9 | 01-00040-00290 | |
123.17 € | 1 | Available | 6 Days | 3.1 | 12.4 | 6 | 55 | 9 | 01-00040-00310 | |
123.17 € | 1 | Available | 6 Days | 3.2 | 12.8 | 6 | 55 | 9 | 01-00040-00320 | |
123.17 € | 1 | Available | 6 Days | 3.3 | 13.2 | 6 | 55 | 9 | 01-00040-00330 | |
123.17 € | 1 | Available | 6 Days | 3.4 | 13.6 | 6 | 55 | 9 | 01-00040-00340 | |
123.17 € | 1 | Available | 6 Days | 3.5 | 14 | 6 | 55 | 9 | 01-00040-00350 | |
123.17 € | 1 | Available | 6 Days | 3.6 | 14.4 | 6 | 55 | 9 | 01-00040-00360 | |
123.17 € | 1 | Available | 6 Days | 3.7 | 14.8 | 6 | 55 | 9 | 01-00040-00370 | |
123.17 € | 1 | Available | 6 Days | 3.8 | 15.2 | 6 | 55 | 9 | 01-00040-00380 | |
123.17 € | 1 | Available | 6 Days | 3.9 | 15.6 | 6 | 55 | 9 | 01-00040-00390 | |
94.55 € | 1 | Available | 6 Days | 4 | 16 | 6 | 55 | 9 | 01-00040-00400 | |
129.85 € | 1 | Available | 6 Days | 4.1 | 16.4 | 6 | 60 | 9 | 01-00040-00410 | |
129.85 € | 1 | Available | 6 Days | 4.2 | 16.8 | 6 | 60 | 9 | 01-00040-00420 | |
129.85 € | 1 | Available | 6 Days | 4.3 | 17.2 | 6 | 60 | 9 | 01-00040-00430 | |
129.85 € | 1 | Available | 6 Days | 4.4 | 17.6 | 6 | 60 | 9 | 01-00040-00440 | |
129.85 € | 1 | Available | 6 Days | 4.5 | 18 | 6 | 60 | 9 | 01-00040-00450 | |
129.85 € | 1 | Available | 6 Days | 4.6 | 18.4 | 6 | 60 | 9 | 01-00040-00460 | |
129.85 € | 1 | Available | 6 Days | 4.7 | 18.8 | 6 | 60 | 9 | 01-00040-00470 | |
129.85 € | 1 | Available | 6 Days | 4.8 | 19.2 | 6 | 60 | 9 | 01-00040-00480 | |
129.85 € | 1 | Available | 6 Days | 4.9 | 19.6 | 6 | 60 | 9 | 01-00040-00490 | |
101.23 € | 1 | Available | 6 Days | 5 | 20 | 6 | 60 | 9 | 01-00040-00500 | |
137.47 € | 1 | Available | 6 Days | 5.1 | 20.4 | 6 | 65 | 9 | 01-00040-00510 | |
137.47 € | 1 | Available | 6 Days | 5.2 | 20.8 | 6 | 65 | 9 | 01-00040-00520 | |
137.47 € | 1 | Available | 6 Days | 5.3 | 21.2 | 6 | 65 | 9 | 01-00040-00530 | |
137.47 € | 1 | Available | 6 Days | 5.4 | 21.6 | 6 | 65 | 9 | 01-00040-00540 | |
137.47 € | 1 | Available | 6 Days | 5.5 | 22 | 6 | 65 | 9 | 01-00040-00550 | |
137.47 € | 1 | Available | 6 Days | 5.6 | 22.4 | 6 | 65 | 9 | 01-00040-00560 | |
137.47 € | 1 | Available | 6 Days | 5.7 | 22.8 | 6 | 65 | 9 | 01-00040-00570 | |
137.47 € | 1 | Available | 6 Days | 5.8 | 23.2 | 6 | 65 | 9 | 01-00040-00580 | |
137.47 € | 1 | Available | 6 Days | 5.9 | 23.6 | 6 | 65 | 9 | 01-00040-00590 | |
107.91 € | 1 | Available | 6 Days | 6 | 24 | 6 | 65 | - | 01-00040-00600 | |
138.69 € | 1 | Available | 6 Days | 6.1 | 24.4 | 8 | 80 | 9 | 01-00040-00610 | |
138.69 € | 1 | Available | 6 Days | 6.2 | 24.8 | 8 | 80 | 9 | 01-00040-00620 | |
159.78 € | 1 | Available | 8 Days | 6.3 | 25.2 | 8 | 80 | 9 | 01-00040-00630 | |
138.69 € | 1 | Available | 6 Days | 6.4 | 25.6 | 8 | 80 | 9 | 01-00040-00640 | |
138.69 € | 1 | Available | 6 Days | 6.5 | 26 | 8 | 80 | 9 | 01-00040-00650 |
Loading...
Basic information
| work material | General steel / Quenched and tempered steel / Stainless Steel / Aluminum / Copper / Resin | Number of flutes(sheet) | 2 | Type | Square |
|---|---|---|---|---|---|
| Coating | Non-Coated | Machining Application | Plane / Side / Groove / Inclined Cuts | Blade tip shape | With Lead |
| Torsion Angle (θ) | Standard Helix (30˚ to 40˚) | Blade diameter tolerance(mm) | 0~-0.02 |
Configure
Basic Attributes
-
Blade diameter (D)(φ)
- 0.5
- 0.6
- 0.7
- 0.8
- 0.9
- 1
- 1.1
- 1.2
- 1.3
- 1.4
- 1.5
- 1.6
- 1.7
- 1.8
- 1.9
- 2
- 2.1
- 2.2
- 2.3
- 2.4
- 2.5
- 2.6
- 2.7
- 2.8
- 2.9
- 3.1
- 3.2
- 3.3
- 3.4
- 3.5
- 3.6
- 3.7
- 3.8
- 3.9
- 4
- 4.1
- 4.2
- 4.3
- 4.4
- 4.5
- 4.6
- 4.7
- 4.8
- 4.9
- 5
- 5.1
- 5.2
- 5.3
- 5.4
- 5.5
- 5.6
- 5.7
- 5.8
- 5.9
- 6
- 6.1
- 6.2
- 6.3
- 6.4
- 6.5
- 6.6
- 6.7
- 6.8
- 6.9
- 7.1
- 7.2
- 7.3
- 7.4
- 7.5
- 7.6
- 7.7
- 7.8
- 7.9
- 8
- 8.1
- 8.2
- 8.3
- 8.4
- 8.5
- 8.6
- 8.7
- 8.8
- 8.9
- 9
- 9.1
- 9.2
- 9.3
- 9.4
- 9.5
- 9.6
- 9.7
- 9.8
- 9.9
- 10
- 10.1
- 10.2
- 10.3
- 10.4
- 10.5
- 10.6
- 10.7
- 10.8
- 10.9
- 11
- 11.1
- 11.2
- 11.3
- 11.5
- 11.6
- 11.7
- 11.8
- 11.9
-
Blade length (ℓ)(mm)
- 2
- 2.4
- 2.8
- 3.2
- 3.6
- 4
- 4.4
- 4.8
- 5.2
- 5.6
- 6
- 6.4
- 6.8
- 7.2
- 7.6
- 8
- 8.4
- 8.8
- 9.2
- 9.6
- 10
- 10.4
- 10.8
- 11.2
- 11.6
- 12.4
- 12.8
- 13.2
- 13.6
- 14
- 14.4
- 14.8
- 15.2
- 15.6
- 16
- 16.4
- 16.8
- 17.2
- 17.6
- 18
- 18.4
- 18.8
- 19.2
- 19.6
- 20
- 20.4
- 20.8
- 21.2
- 21.6
- 22
- 22.4
- 22.8
- 23.2
- 23.6
- 24
- 24.4
- 24.8
- 25.2
- 25.6
- 26
- 26.4
- 26.8
- 27.2
- 27.6
- 28.4
- 28.8
- 29.2
- 29.6
- 30
- 30.4
- 30.8
- 31.2
- 31.6
- 32
- 32.4
- 32.8
- 33.2
- 33.6
- 34
- 34.4
- 34.8
- 35.2
- 35.6
- 36
- 36.4
- 36.8
- 37.2
- 37.6
- 38
- 38.4
- 38.8
- 39.2
- 39.6
- 40
- 40.4
- 40.8
- 41.2
- 41.6
- 42
- 42.4
- 42.8
- 43.2
- 43.6
- 44
- 44.4
- 44.8
- 45.2
- 46
- 46.4
- 46.8
- 47.2
- 47.6
-
Shank diameter (d)(mm)
-
Overall Length (L)(mm)
-
(γ) Neck Angle(°)
- 9
-
Manufacturer Code
- 01-00040-01190
- 01-00040-01180
- 01-00040-01170
- 01-00040-01160
- 01-00040-01150
- 01-00040-01130
- 01-00040-01120
- 01-00040-01110
- 01-00040-01100
- 01-00040-01090
- 01-00040-01080
- 01-00040-01070
- 01-00040-01060
- 01-00040-01050
- 01-00040-01040
- 01-00040-01030
- 01-00040-01020
- 01-00040-01010
- 01-00040-01000
- 01-00040-00990
- 01-00040-00980
- 01-00040-00970
- 01-00040-00960
- 01-00040-00950
- 01-00040-00940
- 01-00040-00930
- 01-00040-00920
- 01-00040-00910
- 01-00040-00900
- 01-00040-00890
- 01-00040-00880
- 01-00040-00870
- 01-00040-00860
- 01-00040-00850
- 01-00040-00840
- 01-00040-00830
- 01-00040-00820
- 01-00040-00810
- 01-00040-00800
- 01-00040-00790
- 01-00040-00780
- 01-00040-00770
- 01-00040-00760
- 01-00040-00750
- 01-00040-00740
- 01-00040-00730
- 01-00040-00720
- 01-00040-00710
- 01-00040-00690
- 01-00040-00680
- 01-00040-00670
- 01-00040-00660
- 01-00040-00650
- 01-00040-00640
- 01-00040-00630
- 01-00040-00620
- 01-00040-00610
- 01-00040-00600
- 01-00040-00590
- 01-00040-00580
- 01-00040-00570
- 01-00040-00560
- 01-00040-00550
- 01-00040-00540
- 01-00040-00530
- 01-00040-00520
- 01-00040-00510
- 01-00040-00500
- 01-00040-00490
- 01-00040-00480
- 01-00040-00470
- 01-00040-00460
- 01-00040-00450
- 01-00040-00440
- 01-00040-00430
- 01-00040-00420
- 01-00040-00410
- 01-00040-00400
- 01-00040-00390
- 01-00040-00380
- 01-00040-00370
- 01-00040-00360
- 01-00040-00350
- 01-00040-00340
- 01-00040-00330
- 01-00040-00320
- 01-00040-00310
- 01-00040-00290
- 01-00040-00280
- 01-00040-00270
- 01-00040-00260
- 01-00040-00250
- 01-00040-00240
- 01-00040-00230
- 01-00040-00220
- 01-00040-00210
- 01-00040-00200
- 01-00040-00190
- 01-00040-00180
- 01-00040-00170
- 01-00040-00160
- 01-00040-00150
- 01-00040-00140
- 01-00040-00130
- 01-00040-00120
- 01-00040-00110
- 01-00040-00100
- 01-00040-00090
- 01-00040-00080
- 01-00040-00070
- 01-00040-00060
- 01-00040-00050
-
Type
- NX-40
Filter by standard shipping days
-
- All
- 6 Days or Less
- 8 Days or Less
- 10 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
