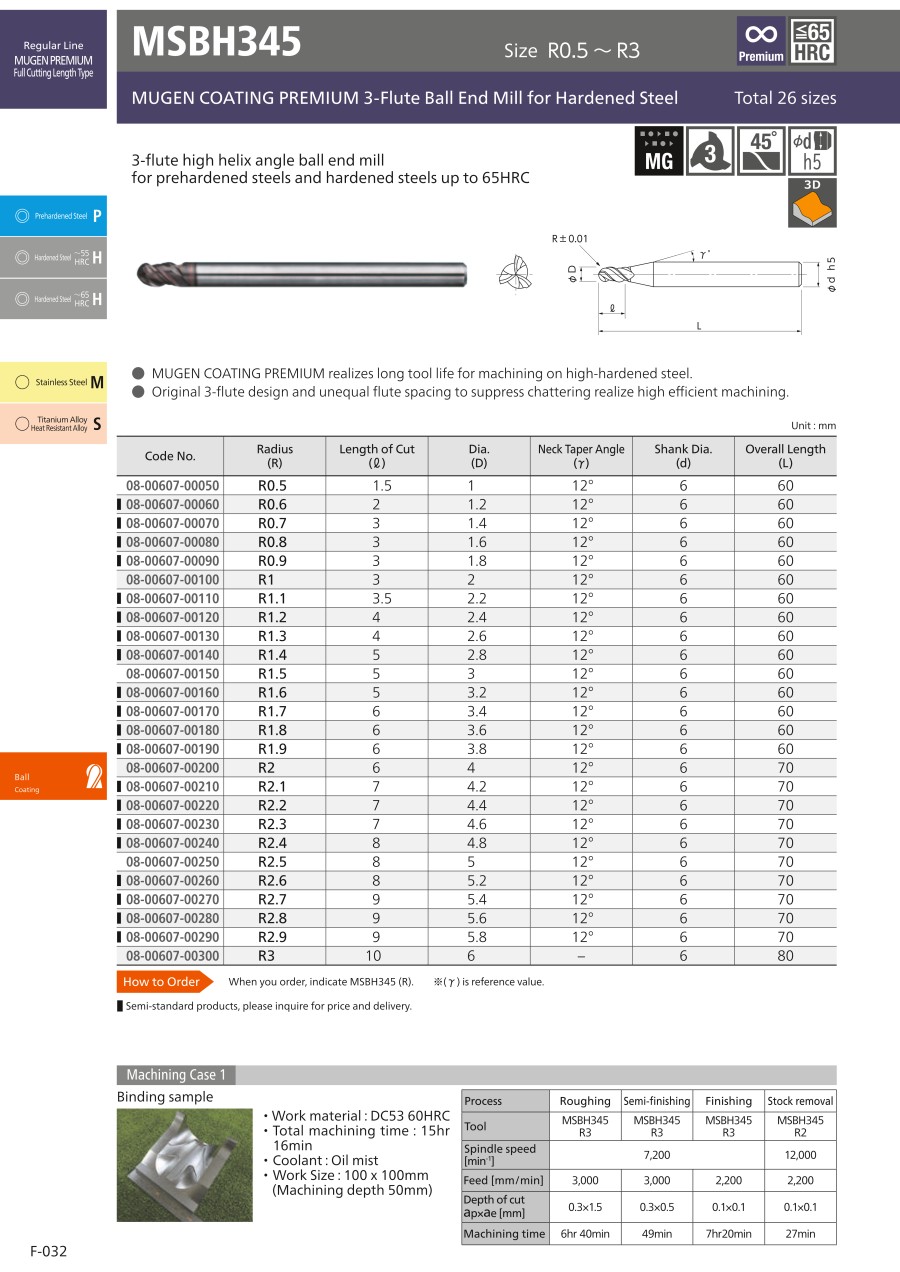

MSBH345 3-Flute Ball-End Mill for High-Hardness
- Volume Discount
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| MSBH345-R0.5 |
| MSBH345-R1 |
| MSBH345-R1.5 |
| MSBH345-R2 |
| MSBH345-R2.5 |
| MSBH345-R3 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | R Size (mm) | Blade length (ℓ) (mm) | Overall Length (L) (mm) | Manufacturer Code | (D) Blade Diameter (mm) | (γ) Neck Angle (°) | |
|---|---|---|---|---|---|---|---|---|---|---|
87.24 € | 1 | Available | 6 Days | 0.5 | 1.5 | 60 | 08-00607-00050 | 1 | 12ﾟ | |
79.93 € | 1 | Available | 6 Days | 1 | 3 | 60 | 08-00607-00100 | 2 | 12ﾟ | |
87.04 € | 1 | 6 Days | 1.5 | 5 | 60 | 08-00607-00150 | 3 | 12ﾟ | ||
87.04 € | 1 | 6 Days | 2 | 6 | 70 | 08-00607-00200 | 4 | 12ﾟ | ||
94.15 € | 1 | 6 Days | 2.5 | 8 | 70 | 08-00607-00250 | 5 | 12ﾟ | ||
101.26 € | 1 | 6 Days | 3 | 10 | 80 | 08-00607-00300 | 6 | - |
Loading...
Basic information
| Type | Ball | work material | General steel / Quenched and tempered steel / High hardness steel –HRC55 / High hardness steel –HRC60 / High hardness steel –HRC65 / Stainless Steel / Aluminum / Titanium / Copper / Resin | Number of flutes(sheet) | 3 |
|---|---|---|---|---|---|
| Coating | For High Hardness (Silicone Group) | Shank diameter (d)(mm) | 6 | R Precision(μm) | 0.01～-0.01 |
| Machining Application | Curved surface / Side / Engraving / R Groove | With/Without Torsion | Available |
Configure
Basic Attributes
-
R Size(mm)
-
Blade length (ℓ)(mm)
-
Overall Length (L)(mm)
-
Manufacturer Code
-
Type
- MSBH345
Filter by standard shipping days
-
- All
- 6 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
