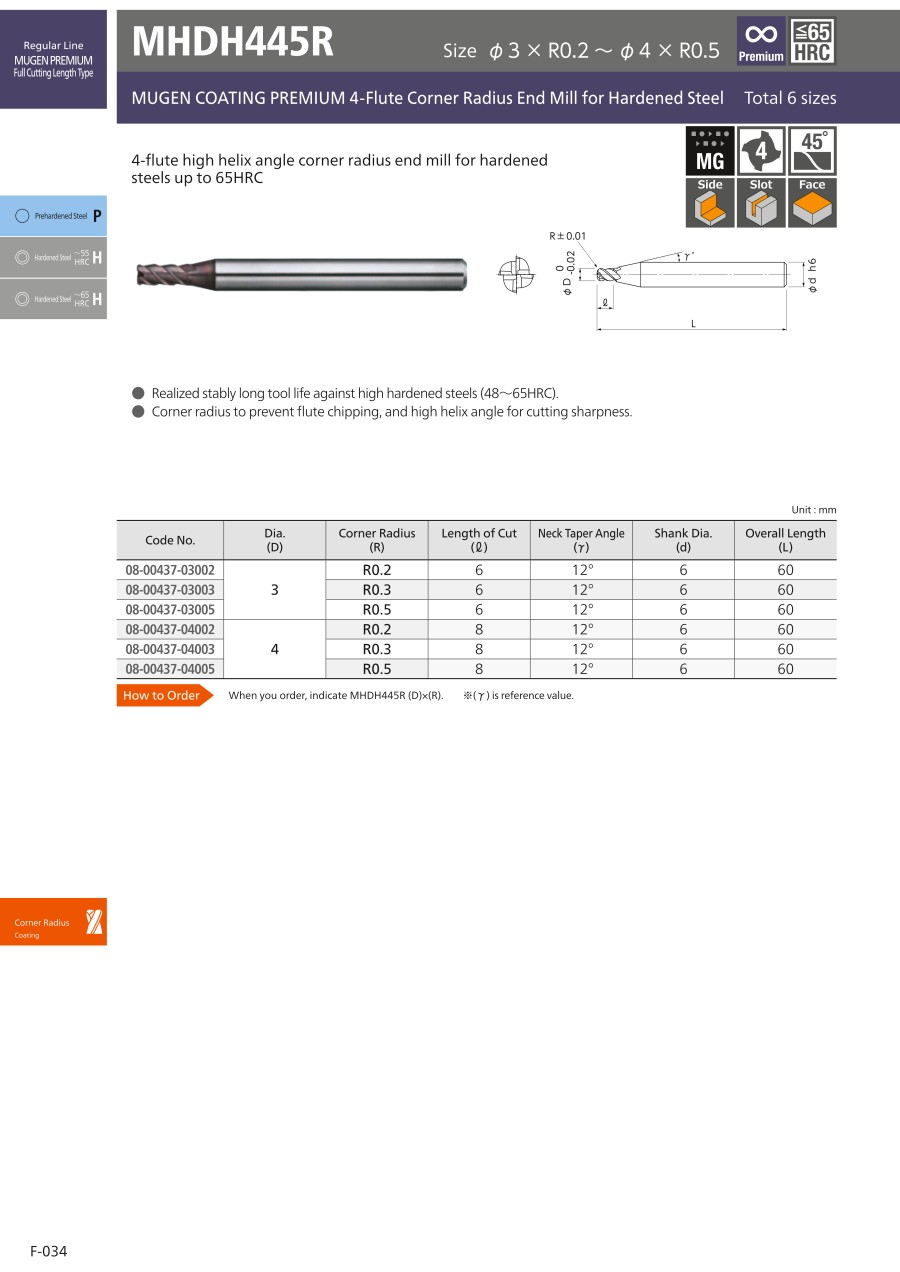

MHDH445R 4-Flute Radius-End Mill for High-Hardness
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| MHDH445R-3-6-R0.2 |
| MHDH445R-3-6-R0.3 |
| MHDH445R-3-6-R0.5 |
| MHDH445R-4-8-R0.2 |
| MHDH445R-4-8-R0.3 |
| MHDH445R-4-8-R0.5 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Blade diameter (D) (φ) | R Size (mm) | Blade length (ℓ) (mm) | Manufacturer Code | |
|---|---|---|---|---|---|---|---|---|
109.15 € | 1 | 6 Days | 3 | 0.2 | 6 | 08-00437-03002 | ||
109.15 € | 1 | 6 Days | 3 | 0.3 | 6 | 08-00437-03003 | ||
109.15 € | 1 | 6 Days | 3 | 0.5 | 6 | 08-00437-03005 | ||
125.16 € | 1 | 6 Days | 4 | 0.2 | 8 | 08-00437-04002 | ||
117.85 € | 1 | 6 Days | 4 | 0.3 | 8 | 08-00437-04003 | ||
117.85 € | 1 | 6 Days | 4 | 0.5 | 8 | 08-00437-04005 |
Loading...
Basic information
| work material | General steel / Quenched and tempered steel / High hardness steel –HRC55 / High hardness steel –HRC60 / High hardness steel –HRC65 / Stainless Steel / Aluminum / Titanium / Copper / Resin | Number of flutes(sheet) | 4 | Type | Radius |
|---|---|---|---|---|---|
| Overall Length (L)(mm) | 60 | Shank diameter (d)(mm) | 6 | Machining Application | Plane / Side / Curved surface |
| Coating | For High Hardness (Silicone Group) | Torsion Angle (θ) | High Helix (45˚ to 60˚) | R Precision(μm) | 0.01～-0.01 |
| (γ) Neck Angle(°) | 12゜ |
Configure
Basic Attributes
-
Blade diameter (D)(φ)
-
R Size(mm)
-
Blade length (ℓ)(mm)
-
Manufacturer Code
-
Type
- MHDH445R
Filter by standard shipping days
-
- All
- 6 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
