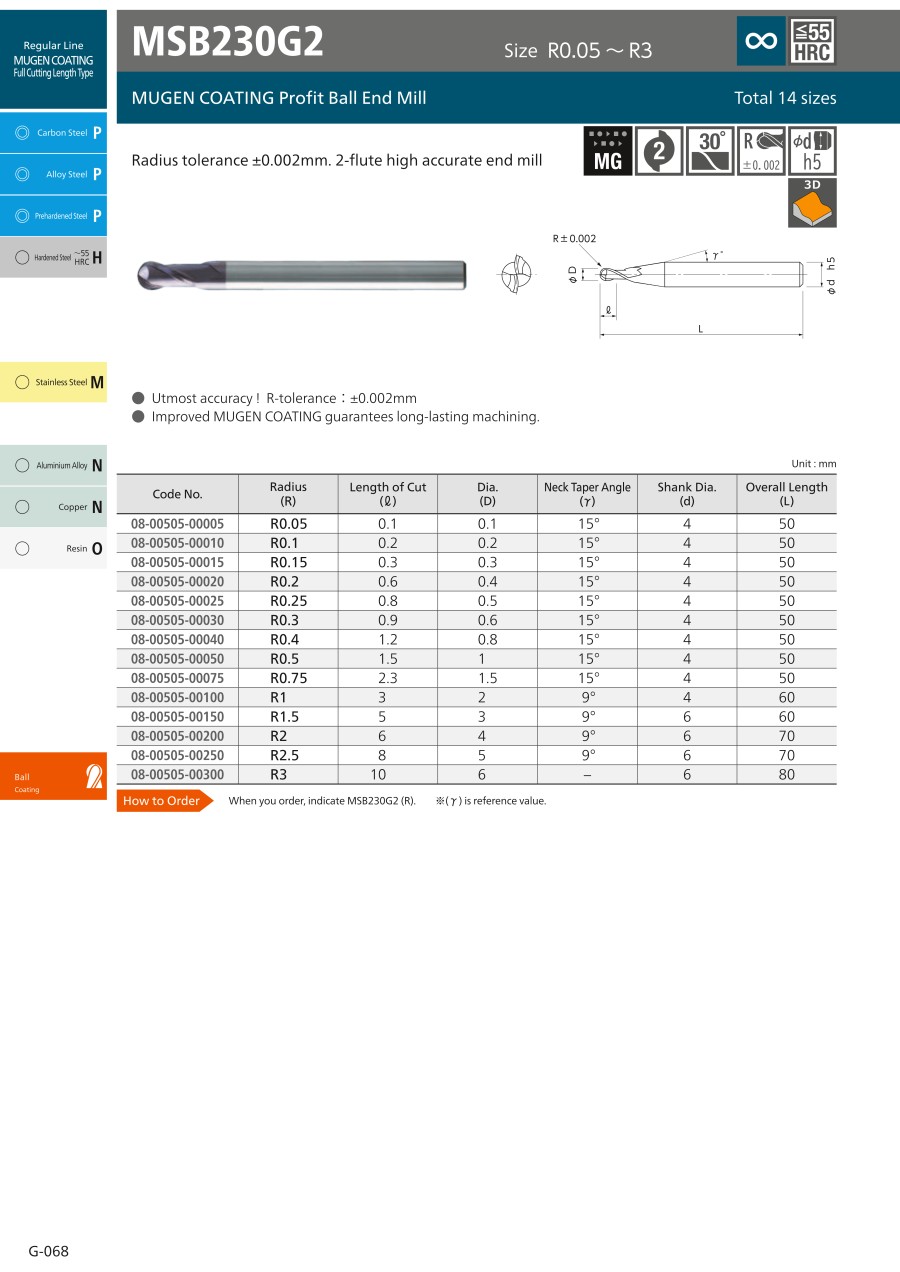

MSB230G2 MUGEN-COATING High Precision Profit Ball End Mill
- Volume Discount
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| MSB230G2-R0.05 |
| MSB230G2-R0.1 |
| MSB230G2-R0.2 |
| MSB230G2-R0.3 |
| MSB230G2-R0.4 |
| MSB230G2-R0.5 |
| MSB230G2-R0.15 |
| MSB230G2-R0.25 |
| MSB230G2-R0.75 |
| MSB230G2-R1 |
| MSB230G2-R1.5 |
| MSB230G2-R2 |
| MSB230G2-R2.5 |
| MSB230G2-R3 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | R Size (mm) | Blade length (ℓ) (mm) | Overall Length (L) (mm) | Shank diameter (d) (mm) | Manufacturer Code | (D) Blade Diameter (mm) | (γ) Neck Angle (°) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
138.69 € | 1 | Available | 6 Days | 0.05 | 0.1 | 50 | 4 | 08-00505-00005 | 0.1 | 15 | |
113.63 € | 1 | Available | 6 Days | 0.1 | 0.2 | 50 | 4 | 08-00505-00010 | 0.2 | 15 | |
72.61 € | 1 | Available | 6 Days | 0.2 | 0.6 | 50 | 4 | 08-00505-00020 | 0.4 | 15 | |
67.85 € | 1 | Available | 6 Days | 0.3 | 0.9 | 50 | 4 | 08-00505-00030 | 0.6 | 15 | |
67.85 € | 1 | Available | 6 Days | 0.4 | 1.2 | 50 | 4 | 08-00505-00040 | 0.8 | 15 | |
67.85 € | 1 | Available | 6 Days | 0.5 | 1.5 | 50 | 4 | 08-00505-00050 | 1 | 15 | |
107.91 € | 1 | Available | 6 Days | 0.15 | 0.3 | 50 | 4 | 08-00505-00015 | 0.3 | 15 | |
67.85 € | 1 | Available | 6 Days | 0.25 | 0.8 | 50 | 4 | 08-00505-00025 | 0.5 | 15 | |
80.25 € | 1 | Available | 6 Days | 0.75 | 2.3 | 50 | 4 | 08-00505-00075 | 1.5 | 15 | |
58.31 € | 1 | Available | 6 Days | 1 | 3 | 60 | 4 | 08-00505-00100 | 2 | 9 | |
77.39 € | 1 | Available | 6 Days | 1.5 | 5 | 60 | 6 | 08-00505-00150 | 3 | 9 | |
77.39 € | 1 | Available | 6 Days | 2 | 6 | 70 | 6 | 08-00505-00200 | 4 | 9 | |
92.65 € | 1 | Available | 6 Days | 2.5 | 8 | 70 | 6 | 08-00505-00250 | 5 | 9 | |
98.37 € | 1 | Available | 6 Days | 3 | 10 | 80 | 6 | 08-00505-00300 | 6 | - |
Loading...
Basic information
| Type | Ball | work material | General steel / Quenched and tempered steel / High hardness steel –HRC55 / Stainless Steel / Aluminum / Titanium / Copper / Resin | Number of flutes(sheet) | 2 |
|---|---|---|---|---|---|
| Coating | TiAlN | R Precision(μm) | 0.002～-0.002 | Machining Application | Curved surface / Side / Engraving / R Groove |
| With/Without Torsion | Available |
Configure
Basic Attributes
-
R Size(mm)
-
Blade length (ℓ)(mm)
-
Overall Length (L)(mm)
-
Shank diameter (d)(mm)
-
Manufacturer Code
-
Type
- MSB230G2
Filter by standard shipping days
-
- All
- 6 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
