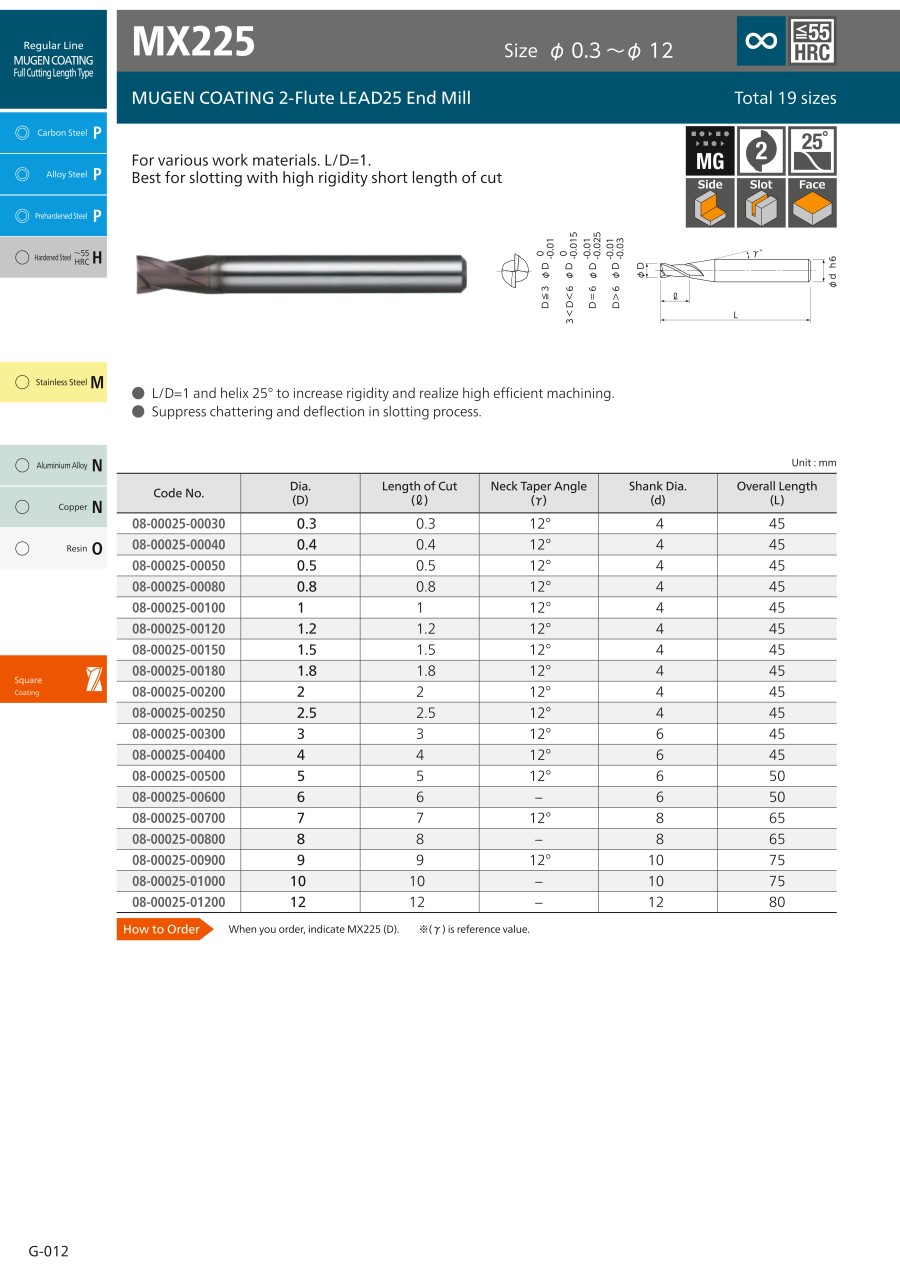

MX225 MUGEN-COATING 2-Flute LEAD 25 End Mill
- Volume Discount
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| MX225-0.3 |
| MX225-0.4 |
| MX225-0.5 |
| MX225-0.8 |
| MX225-1 |
| MX225-1.5 |
| MX225-1.8 |
| MX225-2 |
| MX225-2.5 |
| MX225-3 |
| MX225-4 |
| MX225-5 |
| MX225-6 |
| MX225-7 |
| MX225-8 |
| MX225-9 |
| MX225-10 |
| MX225-12 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Blade diameter (D) (φ) | Blade length (ℓ) (mm) | Shank diameter (d) (mm) | Overall Length (L) (mm) | (γ) Neck Angle (°) | Manufacturer Code | Blade diameter tolerance (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
35.42 € | 1 | Available | 6 Days | 0.3 | 0.3 | 4 | 45 | 12 | 08-00025-00030 | 0～-0.01 | |
40.18 € | 1 | Available | 6 Days | 0.4 | 0.4 | 4 | 45 | 12 | 08-00025-00040 | 0～-0.01 | |
28.99 € | 1 | Available | 6 Days | 0.5 | 0.5 | 4 | 45 | 12 | 08-00025-00050 | 0～-0.01 | |
28.99 € | 1 | Available | 6 Days | 0.8 | 0.8 | 4 | 45 | 12 | 08-00025-00080 | 0～-0.01 | |
18.25 € | 1 | Available | 6 Days | 1 | 1 | 4 | 45 | 12 | 08-00025-00100 | 0～-0.01 | |
27.09 € | 1 | Available | 6 Days | 1.5 | 1.5 | 4 | 45 | 12 | 08-00025-00150 | 0～-0.01 | |
20.15 € | 1 | Available | 6 Days | 1.8 | 1.8 | 4 | 45 | 12 | 08-00025-00180 | 0～-0.01 | |
27.09 € | 1 | Available | 10 Days | 2 | 2 | 4 | 45 | 12 | 08-00025-00200 | 0～-0.01 | |
18.25 € | 1 | Available | 6 Days | 2.5 | 2.5 | 4 | 45 | 12 | 08-00025-00250 | 0～-0.01 | |
23.02 € | 1 | Available | 6 Days | 3 | 3 | 6 | 45 | 12 | 08-00025-00300 | 0～-0.01 | |
24.93 € | 1 | Available | 6 Days | 4 | 4 | 6 | 45 | 12 | 08-00025-00400 | 0～-0.015 | |
27.79 € | 1 | Available | 6 Days | 5 | 5 | 6 | 50 | 12 | 08-00025-00500 | 0～-0.015 | |
29.69 € | 1 | Available | 6 Days | 6 | 6 | 6 | 50 | - | 08-00025-00600 | -0.01～-0.025 | |
91.69 € | 1 | Available | 6 Days | 7 | 7 | 8 | 65 | 12 | 08-00025-00700 | -0.01~-0.03 | |
84.31 € | 1 | Available | 6 Days | 8 | 8 | 8 | 65 | - | 08-00025-00800 | -0.01~-0.03 | |
133.66 € | 1 | Available | 6 Days | 9 | 9 | 10 | 75 | 12 | 08-00025-00900 | -0.01~-0.03 | |
98.37 € | 1 | Available | 6 Days | 10 | 10 | 10 | 75 | - | 08-00025-01000 | -0.01~-0.03 | |
133.66 € | 1 | Available | 6 Days | 12 | 12 | 12 | 80 | - | 08-00025-01200 | -0.01~-0.03 |
Loading...
Basic information
| work material | General steel / Quenched and tempered steel / High hardness steel –HRC55 / Stainless Steel / Aluminum / Titanium / Copper / Resin | Number of flutes(sheet) | 2 | Type | Square |
|---|---|---|---|---|---|
| Coating | TiAlN | Machining Application | Plane / Side / Groove / Inclined Cuts | Blade tip shape | With Lead |
| Torsion Angle (θ) | Weak torsion (15 to 25°) |
Configure
Basic Attributes
-
Blade diameter (D)(φ)
-
Blade length (ℓ)(mm)
-
Shank diameter (d)(mm)
-
Overall Length (L)(mm)
-
(γ) Neck Angle(°)
- 12
-
Manufacturer Code
-
Type
- MX225
Filter by standard shipping days
-
- All
- 6 Days or Less
- 10 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
