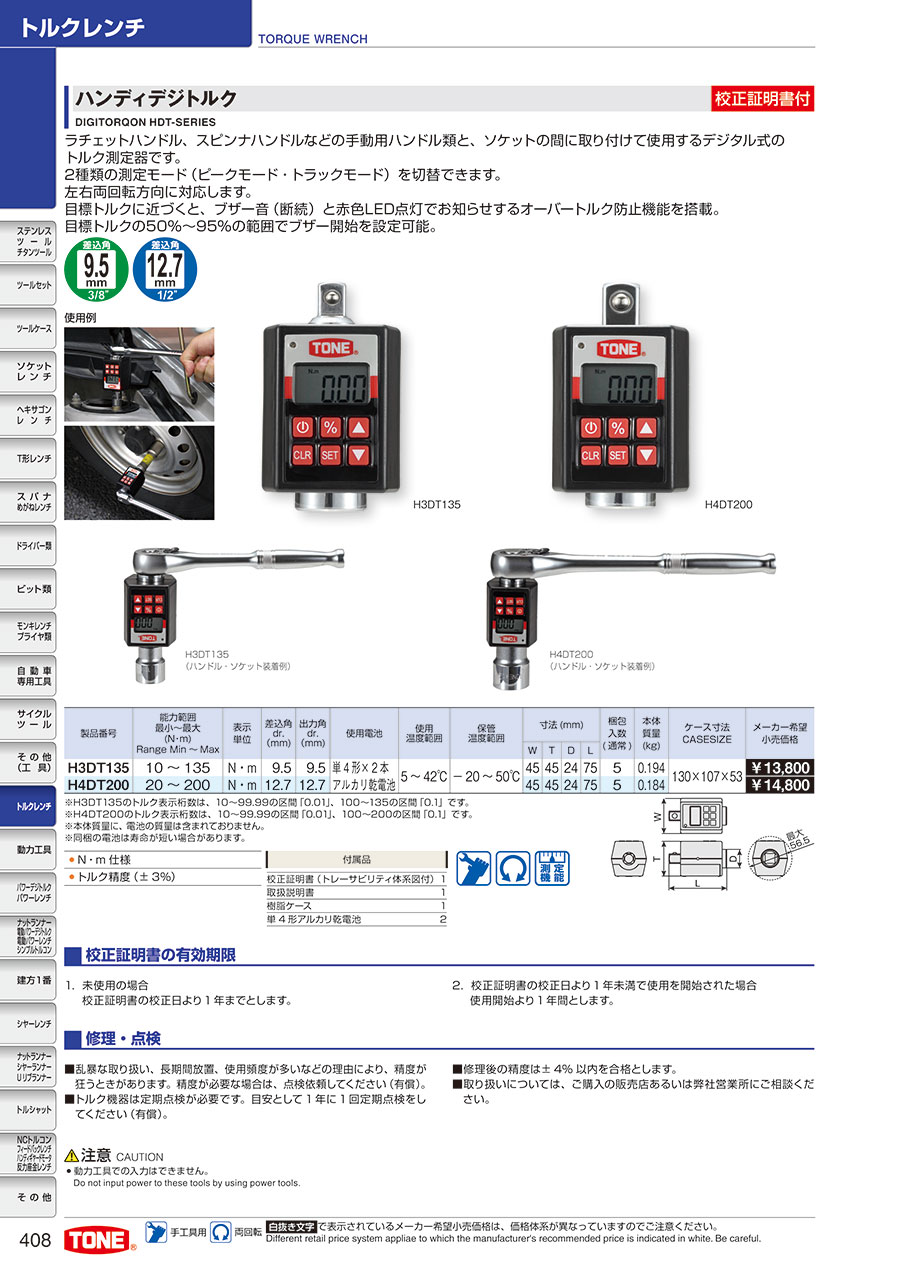

Handy Digitorque
Click on this image to zoom in.
Click on this image to zoom in.
- Volume Discount
[Features]
·A digital torque measuring instrument that is attached between a ratchet handle, spinner handle, and other manual handles and a socket.
·Buzzer sound and red LED lighting / LCD display with set torque.
·With calibration certificate.
·2 types of measurement modes (peak mode and track mode) can be switched.
·Corresponds to both left and right rotation directions.
·Equipped with an over-torque prevention function that notifies you with a buzzer sound (intermittent) and a red LED lighting when the target torque is approached.
·Buzzer start can be set in the range of 50 to 95% of the target torque.
·Automatic power off.
[Applications]
· Inspections and in various manufacturing industries such as industrial machines, analysis devices and automobiles.
·A digital torque measuring instrument that is attached between a ratchet handle, spinner handle, and other manual handles and a socket.
·Buzzer sound and red LED lighting / LCD display with set torque.
·With calibration certificate.
·2 types of measurement modes (peak mode and track mode) can be switched.
·Corresponds to both left and right rotation directions.
·Equipped with an over-torque prevention function that notifies you with a buzzer sound (intermittent) and a red LED lighting when the target torque is approached.
·Buzzer start can be set in the range of 50 to 95% of the target torque.
·Automatic power off.
[Applications]
· Inspections and in various manufacturing industries such as industrial machines, analysis devices and automobiles.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Loading...
Basic information
| Product Type | Digital Type | Head Replaceable | N/A | Overall Length(mm) | 75 |
|---|---|---|---|---|---|
| Load direction | Left/Right | Torque Precision(±%) | 3 | Set / Single Item | Single Item |
| Main body: option | Main Body |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
