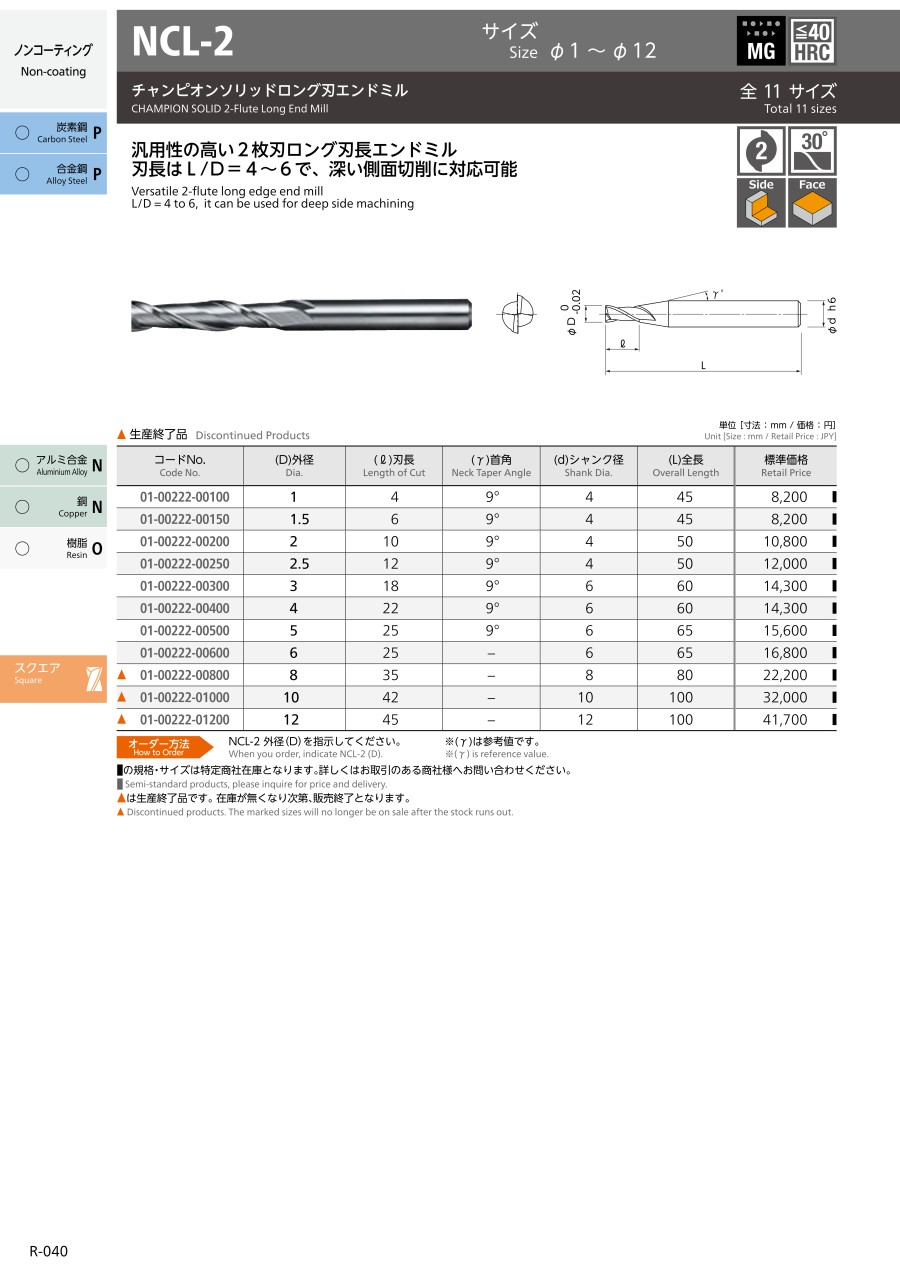

Champion Solid, Long Blade End Mill NCL-2

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Part Number
NCL-2-1
NCL-2-1.5
NCL-2-2
NCL-2-2.5
NCL-2-3
NCL-2-4
NCL-2-5
NCL-2-6
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
Blade diameter (D)
(φ)
Blade length (ℓ)
(mm)
Shank diameter (d)
(mm)
Overall Length (L)
(mm)
(γ) Neck Angle
(°)
Manufacturer Code

64.91 €

1 Available 6 Days 14445901-00222-00100

64.91 €

1 Available 6 Days 1.56445901-00222-00150

85.45 €

1 Available 6 Days 210450901-00222-00200

94.93 €

1 6 Days 2.512450901-00222-00250

113.10 €

1 6 Days 318660901-00222-00300

113.10 €

1 6 Days 422660901-00222-00400

123.37 €

1 6 Days 525665901-00222-00500

132.87 €

1 6 Days 625665-01-00222-00600

Loading...

  1. 1

Basic information

work material General steel / Quenched and tempered steel / Stainless Steel / Aluminum / Copper / Resin Number of flutes(sheet) 2 Type Square
Coating Non-Coated Machining Application Plane / Side / Groove Blade tip shape With Lead
Torsion Angle (θ) Standard Helix (30˚ to 40˚)
