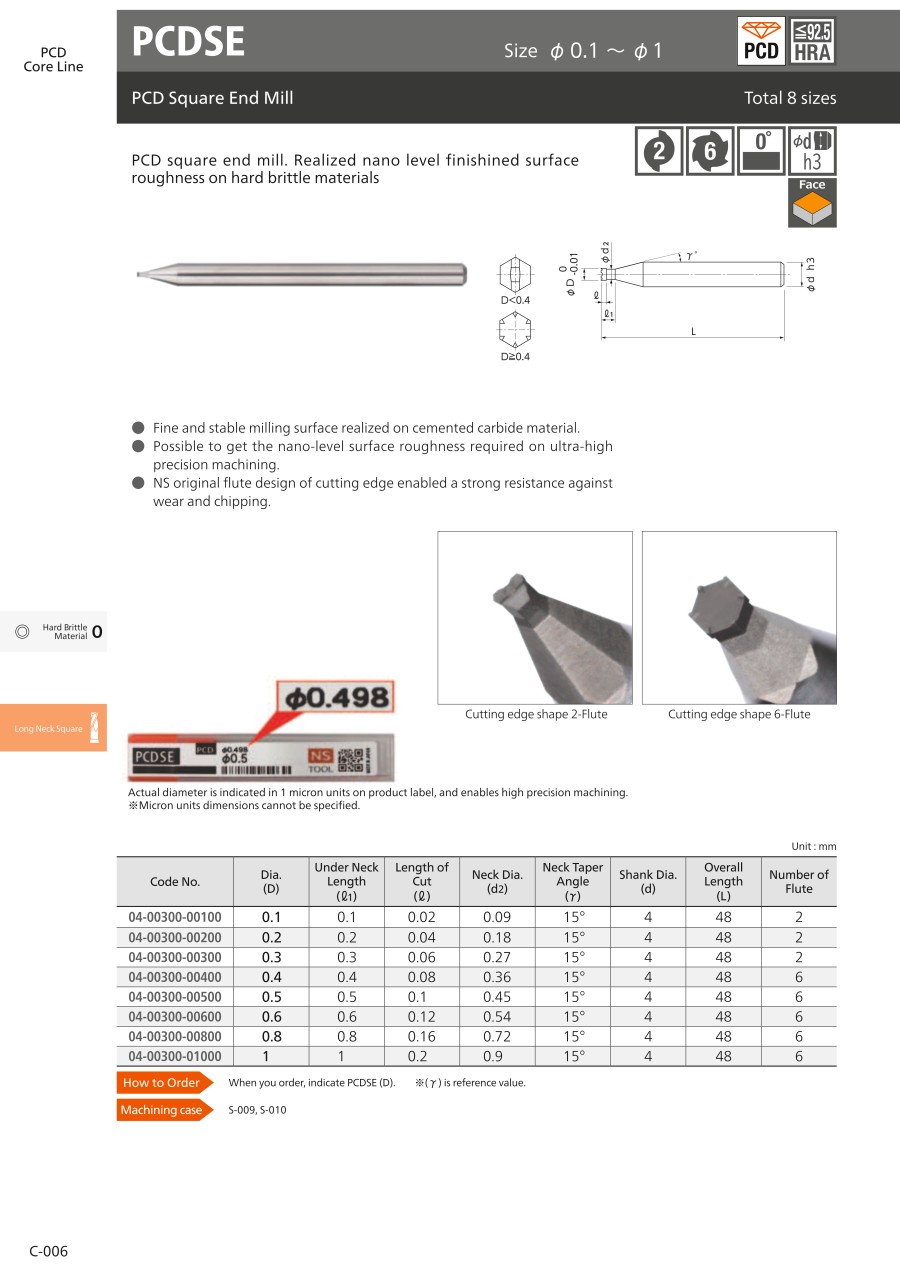

PCD Square End Mill PCDSE

PCD Square End Mill PCDSE
A highly stable cutting surface has been realized for cutting cemented carbide. Nano-level surface roughness required for high-precision machining can be achieved

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Part Number
PCDSE-0.1
PCDSE-0.2
PCDSE-0.3
PCDSE-0.4
PCDSE-0.5
PCDSE-0.6
PCDSE-0.8
PCDSE-1
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
Blade diameter (D)
(φ)
Blade length (ℓ)
(mm)
Number of flutes
(sheet)
Underneck length (ℓ1)
(mm)
(d2) Neck Diameter
(mm)
Manufacturer Code

386.53 €

1 6 Days 0.10.0220.10.0904-00300-00100

386.53 €

1 6 Days 0.20.0420.20.1804-00300-00200

331.32 €

1 6 Days 0.30.0620.30.2704-00300-00300

331.32 €

1 6 Days 0.40.0860.40.3604-00300-00400

331.32 €

1 6 Days 0.50.160.50.4504-00300-00500

276.11 €

1 6 Days 0.60.1260.60.5404-00300-00600

276.11 €

1 6 Days 0.80.1660.80.7204-00300-00800

276.11 €

1 6 Days 10.2610.904-00300-01000

Loading...

  1. 1

Basic information

Type Square Coating Non-Coated Shank diameter (d)(mm) 4
Overall Length (L)(mm) 48 Machining Application Plane / Side / Groove Blade tip shape With Lead
Torsion Angle (θ) No torsion (γ) Neck Angle(°) 15
