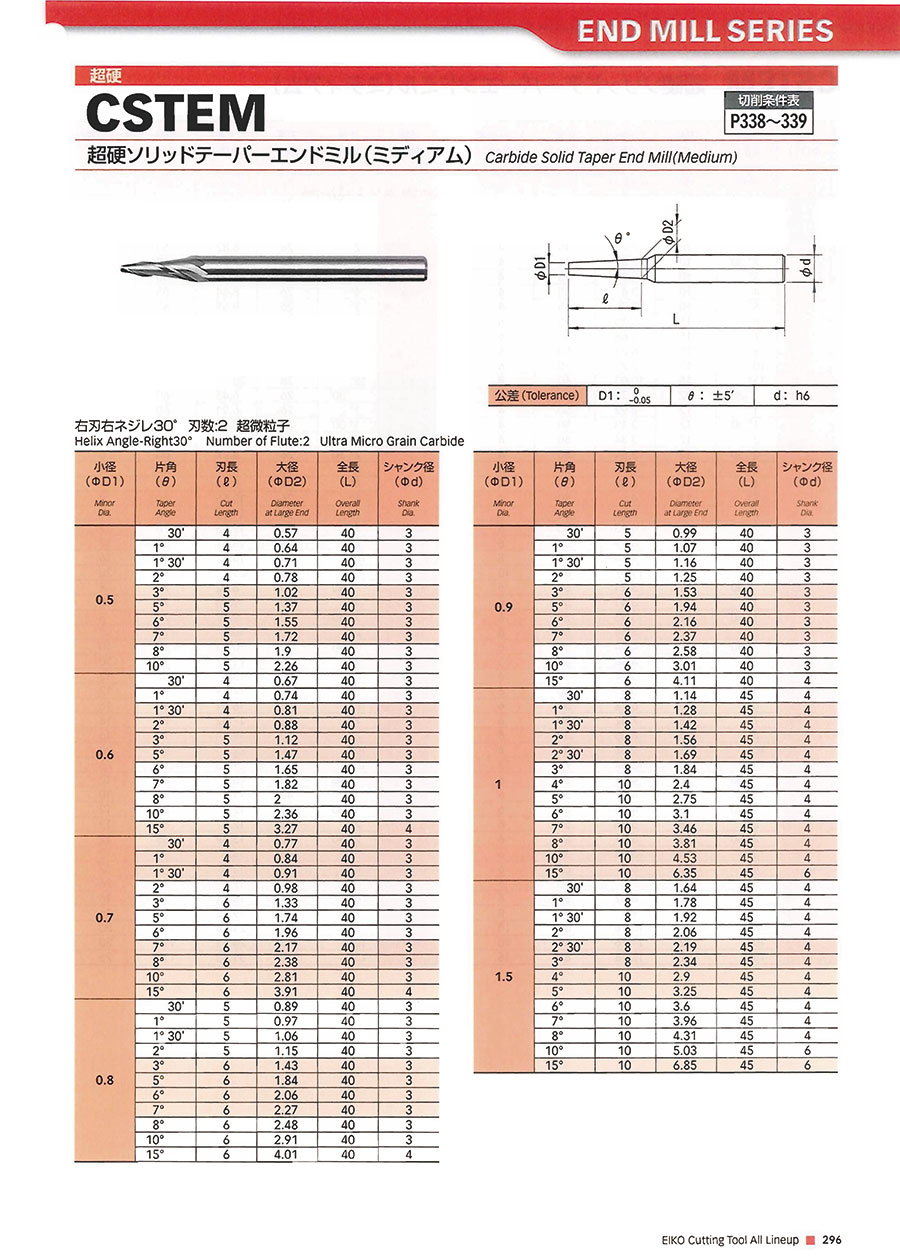

Carbide Solid Taper End Mill (Medium)
- Promotional pricing
- Volume Discount
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Single corner (θ) (Degree) | Tip diameter (D) (φ) | Blade length (ℓ) (mm) | Shank diameter (d) (mm) | Overall Length (L) (mm) | Large Diameter (φ mm) | |
|---|---|---|---|---|---|---|---|---|---|---|
132.88 € | 1 | Available | 6 Days | 30' | 0.5 | 4 | 3 | 40 | 0.57 | |
132.88 € | 1 | Available | 6 Days | 1ﾟ | 0.5 | 4 | 3 | 40 | 0.64 | |
132.88 € | 1 | Available | 6 Days | 1ﾟ30' | 0.5 | 4 | 3 | 40 | 0.71 | |
132.88 € | 1 | Available | 6 Days | 2ﾟ | 0.5 | 4 | 3 | 40 | 0.78 | |
132.88 € | 1 | Available | 6 Days | 3ﾟ | 0.5 | 5 | 3 | 40 | 1.02 | |
107.16 € | 1 | Available | 6 Days | 5ﾟ | 0.5 | 5 | 3 | 40 | 1.37 | |
111.52 € | 1 | Available | 6 Days | 6ﾟ | 0.5 | 5 | 3 | 40 | 1.55 | |
111.52 € | 1 | Available | 6 Days | 7ﾟ | 0.5 | 5 | 3 | 40 | 1.72 | |
124.60 € | 1 | Available | 6 Days | 8ﾟ | 0.5 | 5 | 3 | 40 | 1.9 | |
126.47 € | 1 | Available | 6 Days | 10ﾟ | 0.5 | 5 | 3 | 40 | 2.26 | |
132.88 € | 1 | Available | 6 Days | 30' | 0.6 | 4 | 3 | 40 | 0.67 | |
132.88 € | 1 | Available | 6 Days | 1ﾟ | 0.6 | 4 | 3 | 40 | 0.74 | |
132.88 € | 1 | Available | 6 Days | 1ﾟ30' | 0.6 | 4 | 3 | 40 | 0.81 | |
132.88 € | 1 | Available | 6 Days | 2ﾟ | 0.6 | 4 | 3 | 40 | 0.88 | |
132.88 € | 1 | Available | 6 Days | 3ﾟ | 0.6 | 5 | 3 | 40 | 1.12 | |
107.16 € | 1 | Available | 6 Days | 5ﾟ | 0.6 | 5 | 3 | 40 | 1.47 | |
111.52 € | 1 | Available | 6 Days | 6ﾟ | 0.6 | 5 | 3 | 40 | 1.65 | |
111.52 € | 1 | Available | 6 Days | 7ﾟ | 0.6 | 5 | 3 | 40 | 1.82 | |
124.60 € | 1 | Available | 6 Days | 8ﾟ | 0.6 | 5 | 3 | 40 | 2 | |
126.47 € | 1 | Available | 6 Days | 10ﾟ | 0.6 | 5 | 3 | 40 | 2.36 | |
131.08 € 85.20 € | 1 |
Same day
Stock | 15ﾟ | 0.6 | 5 | 4 | 40 | 3.27 | ||
132.88 € | 1 | Available | 6 Days | 30' | 0.7 | 4 | 3 | 40 | 0.77 | |
132.88 € | 1 | Available | 6 Days | 1ﾟ | 0.7 | 4 | 3 | 40 | 0.84 | |
132.88 € | 1 | Available | 6 Days | 1ﾟ30' | 0.7 | 4 | 3 | 40 | 0.91 | |
132.88 € | 1 | Available | 6 Days | 2ﾟ | 0.7 | 4 | 3 | 40 | 0.98 | |
132.88 € | 1 | Available | 6 Days | 3ﾟ | 0.7 | 6 | 3 | 40 | 1.33 | |
107.16 € | 1 | Available | 6 Days | 5ﾟ | 0.7 | 6 | 3 | 40 | 1.74 | |
111.52 € | 1 | Available | 6 Days | 6ﾟ | 0.7 | 6 | 3 | 40 | 1.96 | |
111.52 € | 1 | Available | 6 Days | 7ﾟ | 0.7 | 6 | 3 | 40 | 2.17 | |
124.60 € | 1 | Available | 6 Days | 8ﾟ | 0.7 | 6 | 3 | 40 | 2.38 | |
126.47 € | 1 | Available | 6 Days | 10ﾟ | 0.7 | 6 | 3 | 40 | 2.81 | |
152.65 € | 1 | Available | 6 Days | 15ﾟ | 0.7 | 6 | 4 | 40 | 3.91 | |
121.29 € | 1 | Available | 6 Days | 30' | 0.8 | 5 | 3 | 40 | 0.89 | |
121.29 € | 1 | Available | 6 Days | 1ﾟ | 0.8 | 5 | 3 | 40 | 0.97 | |
121.29 € | 1 | Available | 6 Days | 1ﾟ30' | 0.8 | 5 | 3 | 40 | 1.06 | |
121.29 € | 1 | Available | 6 Days | 2ﾟ | 0.8 | 5 | 3 | 40 | 1.15 | |
121.29 € | 1 | Available | 6 Days | 3ﾟ | 0.8 | 6 | 3 | 40 | 1.43 | |
99.07 € | 1 | Available | 6 Days | 5ﾟ | 0.8 | 6 | 3 | 40 | 1.84 | |
111.52 € | 1 | Available | 6 Days | 6ﾟ | 0.8 | 6 | 3 | 40 | 2.06 | |
111.52 € | 1 | Available | 6 Days | 7ﾟ | 0.8 | 6 | 3 | 40 | 2.27 | |
124.60 € | 1 | Available | 6 Days | 8ﾟ | 0.8 | 6 | 3 | 40 | 2.48 | |
124.60 € | 1 | Available | 6 Days | 10ﾟ | 0.8 | 6 | 3 | 40 | 2.92 | |
136.45 € | 1 | Available | 6 Days | 15ﾟ | 0.8 | 6 | 4 | 40 | 4.01 | |
121.29 € | 1 | Available | 6 Days | 30' | 0.9 | 5 | 3 | 40 | 0.99 | |
121.29 € | 1 | Available | 6 Days | 1ﾟ | 0.9 | 5 | 3 | 40 | 1.07 | |
121.29 € | 1 | Available | 6 Days | 1ﾟ30' | 0.9 | 5 | 3 | 40 | 1.16 | |
121.29 € | 1 | Available | 6 Days | 2ﾟ | 0.9 | 5 | 3 | 40 | 1.25 | |
121.29 € | 1 | Available | 6 Days | 3ﾟ | 0.9 | 6 | 3 | 40 | 1.53 | |
99.07 € | 1 | Available | 6 Days | 5ﾟ | 0.9 | 6 | 3 | 40 | 1.94 | |
111.52 € | 1 | Available | 6 Days | 6ﾟ | 0.9 | 6 | 3 | 40 | 2.16 | |
111.52 € | 1 | Available | 6 Days | 7ﾟ | 0.9 | 6 | 3 | 40 | 2.37 | |
124.60 € | 1 | Available | 6 Days | 8ﾟ | 0.9 | 6 | 3 | 40 | 2.58 | |
124.60 € | 1 | Available | 6 Days | 10ﾟ | 0.9 | 6 | 3 | 40 | 3.01 | |
136.45 € | 1 | Available | 6 Days | 15ﾟ | 0.9 | 6 | 4 | 40 | 4.11 | |
112.40 € | 1 | Available | 6 Days | 30' | 1 | 8 | 4 | 45 | 1.14 | |
121.30 € | 1 | Available | 6 Days | 1ﾟ | 1 | 8 | 4 | 45 | 1.28 | |
112.40 € | 1 | Available | 6 Days | 1ﾟ30' | 1 | 8 | 4 | 45 | 1.42 | |
112.40 € | 1 | Available | 6 Days | 2ﾟ | 1 | 8 | 4 | 45 | 1.56 | |
112.40 € | 1 | Available | 6 Days | 2ﾟ30' | 1 | 8 | 4 | 45 | 1.69 | |
112.40 € | 1 | Available | 6 Days | 3ﾟ | 1 | 8 | 4 | 45 | 1.84 |
Loading...
Basic information
| Type | Tapered square | work material | General Steel / Quenched and tempered steel / Stainless Steel / Cast Iron / Aluminum / Copper / Graphite | Number of flutes(sheet) | 2 |
|---|---|---|---|---|---|
| Coating | Non-Coated | Torsional Angle | Right Torsion 30° | Small diameter tolerance (D1) | -0.05～0 |
| Angle Tolerance (θ) | ±5′ | Shank diameter tolerance (d) | h6 |
