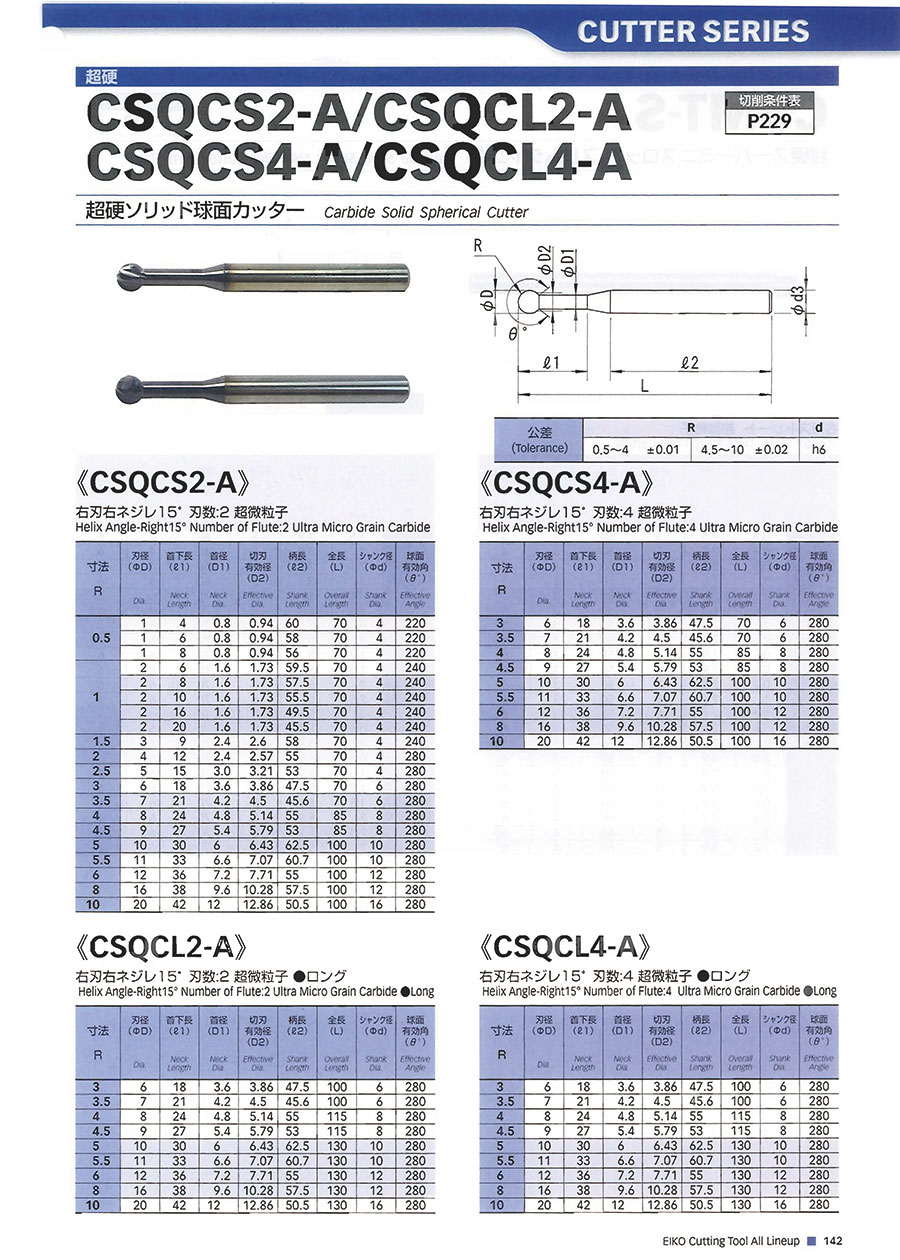

Carbide Solid Spherical Cutter, 2-Flute
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | R Size (mm) | Overall Length (L) (mm) | Underneck length (ℓ1) (mm) | Shank diameter (d) (mm) | R Precision (μm) | blade diameter (mm) | Handle Length | Spherical Effective Angle (°) | Blade Effective Diameter (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
93.43 € | 1 | 10 Days | 0.5 | 70 | 4 | 4 | ±0.01 | 1 | 60 | 220 | 0.94 | ||
88.30 € | 1 | 6 Days | 0.5 | 70 | 6 | 4 | ±0.01 | 1 | 58 | 220 | 0.94 | ||
88.30 € | 1 | 6 Days | 0.5 | 70 | 8 | 4 | ±0.01 | 1 | 56 | 220 | 0.94 | ||
88.30 € | 1 | 6 Days | 1 | 70 | 6 | 4 | ±0.01 | 2 | 59.5 | 240 | 1.73 | ||
88.30 € | 1 | 6 Days | 1 | 70 | 8 | 4 | ±0.01 | 2 | 57.5 | 240 | 1.73 | ||
88.30 € | 1 | 6 Days | 1 | 70 | 10 | 4 | ±0.01 | 2 | 55.5 | 240 | 1.73 | ||
88.30 € | 1 | 6 Days | 1 | 70 | 16 | 4 | ±0.01 | 2 | 49.5 | 240 | 1.73 | ||
93.43 € | 1 | 6 Days | 1 | 70 | 20 | 4 | ±0.01 | 2 | 45.5 | 240 | 1.73 | ||
90.89 € | 1 | 6 Days | 1.5 | 70 | 9 | 4 | ±0.01 | 3 | 58 | 240 | 2.6 | ||
90.89 € | 1 | 6 Days | 2 | 70 | 12 | 4 | ±0.01 | 4 | 55 | 280 | 2.57 | ||
90.90 € | 1 | 6 Days | 2.5 | 70 | 15 | 4 | ±0.01 | 5 | 53 | 280 | 3.21 | ||
111.62 € | 1 | 10 Days | 3 | 70 | 18 | 6 | ±0.01 | 6 | 47.5 | 280 | 3.86 | ||
128.67 € | 1 | 10 Days | 3.5 | 70 | 21 | 6 | ±0.01 | 7 | 45.6 | 280 | 4.5 | ||
144.82 € | 1 | 6 Days | 4 | 85 | 24 | 8 | ±0.01 | 8 | 55 | 280 | 5.14 | ||
161.37 € | 1 | 6 Days | 4.5 | 85 | 27 | 8 | ±0.02 | 9 | 53 | 280 | 5.79 | ||
176.59 € | 1 | 6 Days | 5 | 100 | 30 | 10 | ±0.02 | 10 | 62.5 | 280 | 6.43 | ||
202.44 € | 1 | 6 Days | 5.5 | 100 | 33 | 10 | ±0.02 | 11 | 60.7 | 280 | 7.07 | ||
229.50 € | 1 | 6 Days | 6 | 100 | 36 | 12 | ±0.02 | 12 | 55 | 280 | 7.71 | ||
329.37 € | 1 | 6 Days | 8 | 100 | 38 | 12 | ±0.02 | 16 | 57.5 | 280 | 10.28 | ||
488.60 € | 1 | 6 Days | 10 | 100 | 42 | 16 | ±0.02 | 20 | 50.5 | 280 | 12.86 |
Loading...
Basic information
| Type | Spherical Ball | Number of flutes(sheet) | 2 | With/Without Torsion | Available |
|---|---|---|---|---|---|
| Torsional Angle | Right blade right torsion 15° |
Configure
Basic Attributes
-
R Size(mm)
-
Overall Length (L)(mm)
-
Underneck length (ℓ1)(mm)
-
Shank diameter (d)(mm)
-
R Precision(μm)
-
blade diameter(mm)
-
Handle Length
-
Spherical Effective Angle(°)
- 220
- 240
- 280
-
Blade Effective Diameter(mm)
-
Type
- CSQCS2-A
Filter by standard shipping days
-
- All
- 6 Days or Less
- 10 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
