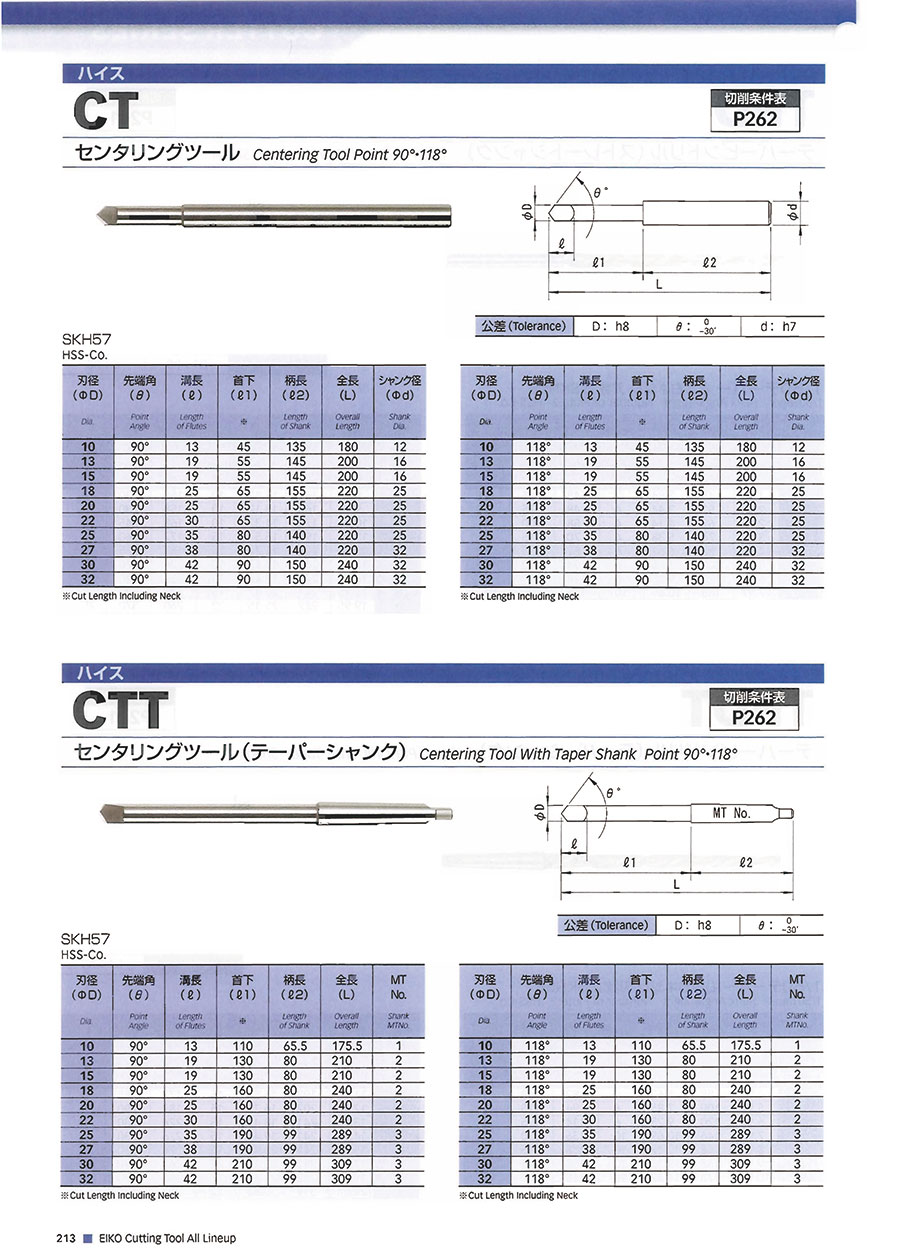

Centering tool (taper shank)
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| CTT10-90 |
| CTT10-118 |
| CTT13-90 |
| CTT13-118 |
| CTT15-90 |
| CTT15-118 |
| CTT18-90 |
| CTT18-118 |
| CTT20-90 |
| CTT20-118 |
| CTT22-90 |
| CTT22-118 |
| CTT25-90 |
| CTT25-118 |
| CTT27-90 |
| CTT27-118 |
| CTT30-90 |
| CTT30-118 |
| CTT32-90 |
| CTT32-118 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Tip angle (θ) | Blade diameter (D) (mm) | Shank diameter (d) (mm) | Groove Length (mm) | Overall Length (mm) | Body (mm) | Handle length (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
114.72 € | 1 | 6 Days | 90 | 10 | MT1 | 13 | 175.5 | 110 | 65.5 | ||
114.72 € | 1 | 6 Days | 118 | 10 | MT1 | 13 | 175.5 | 110 | 65.5 | ||
160.50 € | 1 | 6 Days | 90 | 13 | MT2 | 19 | 210 | 130 | 80 | ||
160.50 € | 1 | 6 Days | 118 | 13 | MT2 | 19 | 210 | 130 | 80 | ||
179.35 € | 1 | 6 Days | 90 | 15 | MT2 | 19 | 210 | 130 | 80 | ||
179.35 € | 1 | 6 Days | 118 | 15 | MT2 | 19 | 210 | 130 | 80 | ||
208.57 € | 1 | 6 Days | 90 | 18 | MT2 | 25 | 240 | 160 | 80 | ||
208.57 € | 1 | 6 Days | 118 | 18 | MT2 | 25 | 240 | 160 | 80 | ||
311.20 € | 1 | 6 Days | 90 | 20 | MT2 | 25 | 240 | 160 | 80 | ||
311.20 € | 1 | 6 Days | 118 | 20 | MT2 | 25 | 240 | 160 | 80 | ||
390.13 € | 1 | 6 Days | 90 | 22 | MT2 | 30 | 240 | 160 | 80 | ||
390.13 € | 1 | 6 Days | 118 | 22 | MT2 | 30 | 240 | 160 | 80 | ||
462.24 € | 1 | 6 Days | 90 | 25 | MT3 | 35 | 289 | 190 | 99 | ||
462.24 € | 1 | 6 Days | 118 | 25 | MT3 | 35 | 289 | 190 | 99 | ||
520.78 € | 1 | 6 Days | 90 | 27 | MT3 | 38 | 289 | 190 | 99 | ||
520.78 € | 1 | 6 Days | 118 | 27 | MT3 | 38 | 289 | 190 | 99 | ||
574.23 € | 1 | 6 Days | 90 | 30 | MT3 | 42 | 309 | 210 | 99 | ||
574.23 € | 1 | 6 Days | 118 | 30 | MT3 | 42 | 309 | 210 | 99 | ||
758.83 € | 1 | 6 Days | 90 | 32 | MT3 | 42 | 309 | 210 | 99 | ||
758.83 € | 1 | 6 Days | 118 | 32 | MT3 | 42 | 309 | 210 | 99 |
Loading...
Basic information
| Application | Centering (Positioning) / Chamfering/Horizontal | work material | General Steel / Quenched and tempered steel / Aluminum / Copper | Tool Material Type | Cobalt HSS |
|---|---|---|---|---|---|
| blade shape | Right blade straight | Number of flutes | 2 |
Configure
Basic Attributes
-
Tip angle (θ)
-
Blade diameter (D)(mm)
-
Shank diameter (d)(mm)
-
Groove Length(mm)
-
Overall Length(mm)
-
Body(mm)
-
Handle length(mm)
- 65.5
- 80
- 99
-
Type
- CTT
Filter by standard shipping days
-
- All
- 6 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
