MITSUBISHI MATERIALS

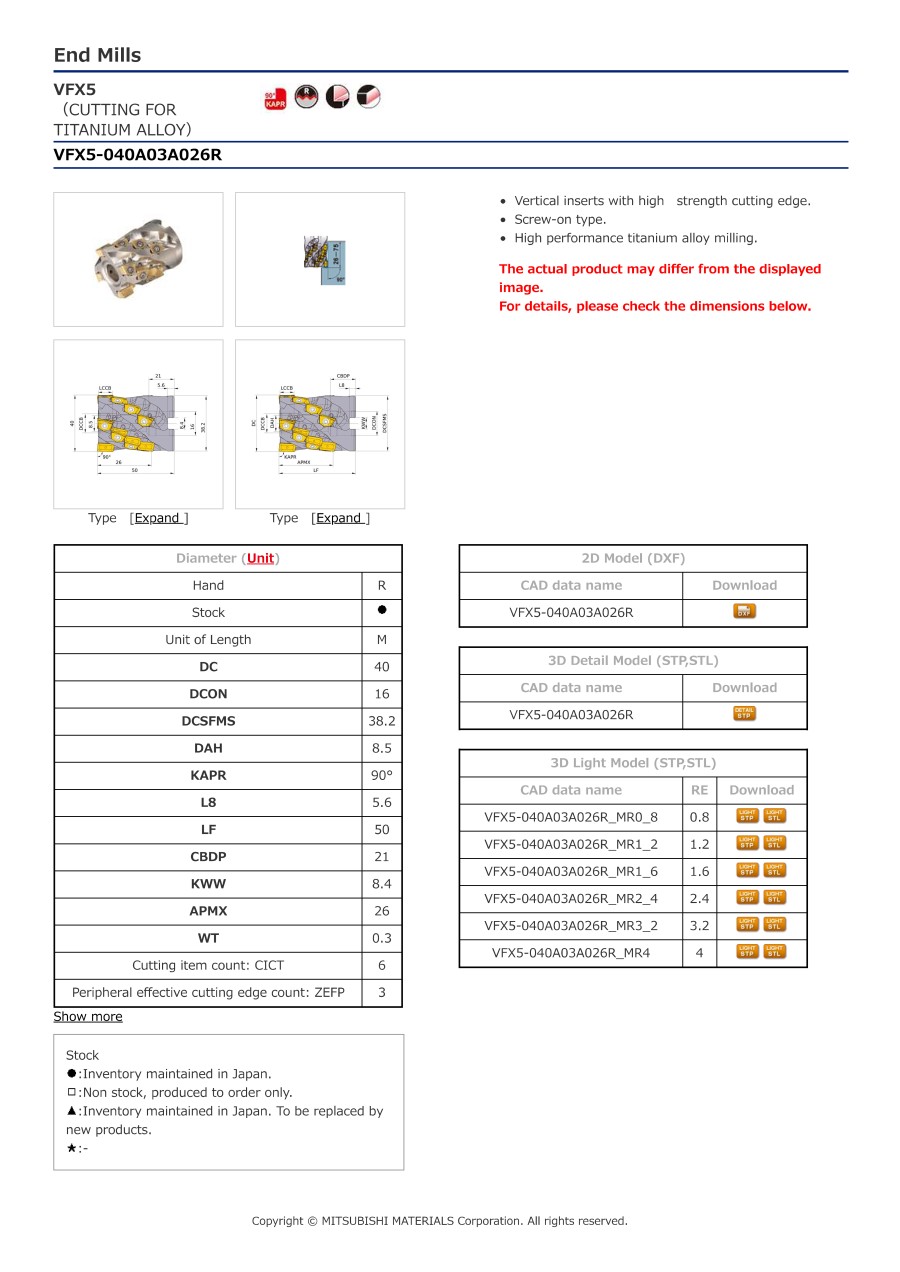

VFX5, VFX5 Type End Mill

VFX5, VFX5 Type End Mill

Part number:

Still undefined. 11 possible part numbers found.
    Quantity:

    Part number list

    Number of items
  • 1
    • Part number
    VFX5-040A03A026R
    VFX5-040A03A038R
    VFX5-050A04A026R
    VFX5-050A04A038R
    VFX5-050A04A050R
    VFX5-050X03A026R
    VFX5-050X03A038R
    VFX5-050X04A038R
    VFX5-063A05A026R
    VFX5-063A05A063R
    VFX5-080A06A075R

    Blade diameter D

    (mm)

    Overall length (L)

    (mm)

    Number of flutes

    (sheet)

    Maximum Cutting Depth (Ap)

    (mm)

    Weight

    (kg)

    Keyway Width KWW

    Main Body Outermost Diameter BD

    (mm)

    Arbor mounted diameter DCON

    (mm)

    Inset height CBDP

    (mm)

    Key Groove Depth L8

    (mm)

    Applicable Insert

    Clamp Screw

    Effective rows of blade

    (Column)

    Bolt Hole Diameter DAH

    (mm)

    		Minimum order quantity
    40
    50
    6
    26
    0.3
    8.4
    38.2
    16
    21
    5.6
    End cutting edge XNMU1607○○R-○○3/peripheral cutting edge XNMU160708R-○○3
    TS352 Usage Number 6
    3
    8.5
    1 pieces
    40
    60
    9
    38
    0.4
    8.4
    38.2
    16
    21
    5.6
    Base Blade XNMU1607○○R-○○3 / Peripheral Blade XNMU160708R-○○6
    TS352 Usage Number 9
    3
    8.5
    1 pieces
    50
    50
    8
    26
    0.5
    10.4
    48.2
    22
    21
    6.3
    Base Blade XNMU1607○○R-○○4 / Peripheral Blade XNMU160708R-○○4
    TS352 Usage Number 8
    4
    10.5
    1 pieces
    50
    60
    12
    38
    0.6
    10.4
    48.2
    22
    21
    6.3
    Base Blade XNMU1607○○R-○○4 / Peripheral Blade XNMU160708R-○○8
    TS352 Usage Number 12
    4
    10.5
    1 pieces
    50
    70
    16
    50
    0.7
    10.4
    48.2
    22
    21
    6.3
    Base Blade XNMU1607○○R-○○4 / Peripheral Blade XNMU160708R-○○12
    TS352 Usage Number 16
    4
    10.5
    1 pieces
    50
    50
    6
    26
    0.4
    12.4
    48.2
    27
    23
    7
    End cutting edge XNMU1607○○R-○○3/peripheral cutting edge XNMU160708R-○○3
    TS352 Usage Number 6
    3
    12.5
    1 pieces
    50
    60
    9
    38
    0.5
    12.4
    48.2
    27
    23
    7
    Base Blade XNMU1607○○R-○○3 / Peripheral Blade XNMU160708R-○○6
    TS352 Usage Number 9
    3
    12.5
    1 pieces
    50
    60
    12
    38
    0.5
    12.4
    48.2
    27
    23
    7
    Base Blade XNMU1607○○R-○○4 / Peripheral Blade XNMU160708R-○○8
    TS352 Usage Number 12
    4
    12.5
    1 pieces
    63
    60
    10
    26
    1
    12.4
    61
    27
    28
    7
    Base Blade XNMU1607○○R-○○5 / Peripheral Blade XNMU160708R-○○5
    TS352 Usage Number 10
    5
    12.5
    1 pieces
    63
    85
    25
    63
    1.4
    12.4
    61
    27
    28
    7
    Base Blade XNMU1607○○R-○○5 / Peripheral Blade XNMU160708R-○○20
    TS352 Usage Number 25
    5
    12.5
    1 pieces
    80
    100
    36
    75
    2.8
    14.4
    77.3
    32
    28
    8
    Base Blade XNMU1607○○R-○○6 / Peripheral Blade XNMU160708R-○○30
    TS352 Usage Number 36
    6
    16.5
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    994.98 €
    ( 1,184.03 € )
    9 working days
    1,179.65 €
    ( 1,403.78 € )
    9 working days
    1,137.04 €
    ( 1,353.08 € )
    9 working days
    1,385.63 €
    ( 1,648.90 € )
    9 working days
    1,634.22 €
    ( 1,944.72 € )
    9 working days
    1,009.19 €
    ( 1,200.94 € )
    9 working days
    1,193.86 €
    ( 1,420.69 € )
    9 working days
    1,385.63 €
    ( 1,648.90 € )
    9 working days
    1,279.09 €
    ( 1,522.12 € )
    9 working days
    2,230.85 €
    ( 2,654.71 € )
    9 working days
    2,955.34 €
    ( 3,516.85 € )
    9 working days
  • 1

    • More Information

    Basic information

    Unique horizontal insert. Screw-on type clamp. Perfect for titanium alloy cutting.
